11 00 598 Removing and installing engine on front axle (N63O1) with manual gearbox

Special tools required:

• 11 0 000
• 11 0 020

Necessary preliminary tasks:

• Remove front axle with engine and transmission.

Screw fixtures (20) onto table lift at a suitable location.

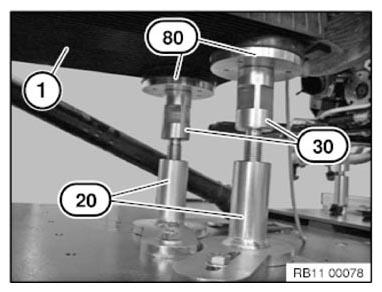

Move screw adapter (30) with plate (80) up against the transmission oil sump (1).

Fig 1: Identifying Fixtures, Screw Adapters, Plates, And Oil Sump

Courtesy of BMW OF NORTH AMERICA, INC.

With Dynamic Drive only

Release holder (1).

Fig 2: Identifying Holder

Courtesy of BMW OF NORTH AMERICA, INC.

With Dynamic Drive only

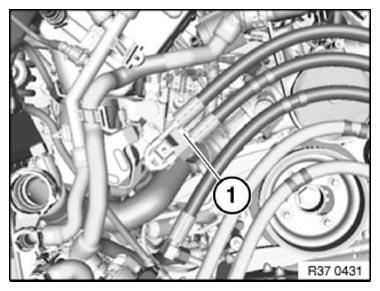

Release holder (1) on power steering pump.

Tightening torque 32 41 14AZ .

Fig 3: Identifying Holder On Power Steering Pump

Courtesy of BMW OF NORTH AMERICA, INC.

With Dynamic Drive only

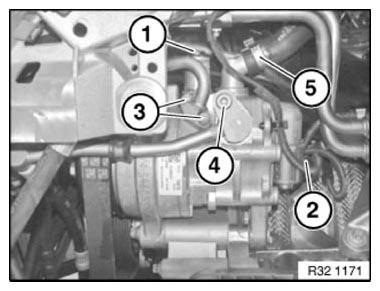

Release screws (3).

Tightening torque 32 41 13AZ .

Release screw (4).

Tightening torque 32 41 10AZ .

Installation note:

Align intake pipe by way of marking to power steering pump.

Make sure hydraulic lines are laid without tension and with sufficient distance to adjoining components.

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

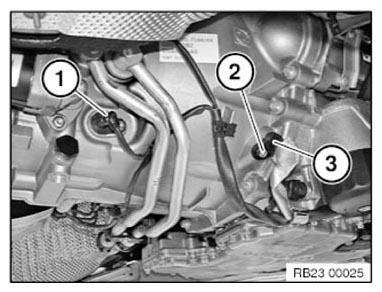

Disconnect plug connection (1).

Release screw (2).

Remove sensor (3).

Fig 5: Identifying Plug Connection, Screw And Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) from oil pump.

Fig 6: Identifying Oil Pump Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

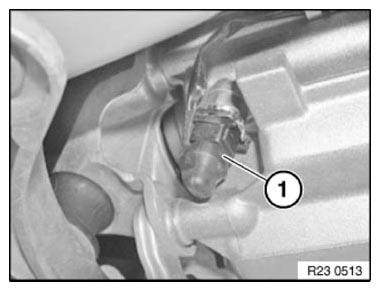

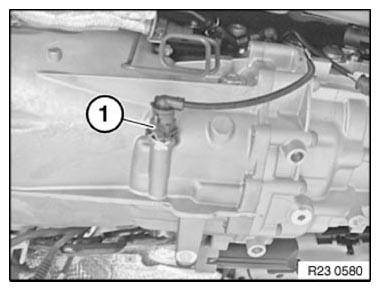

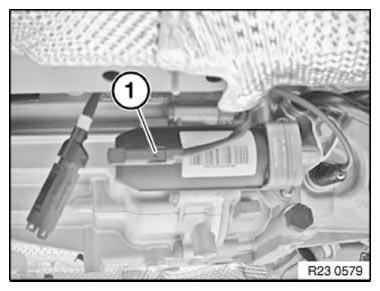

Disconnect plug connection (1) from reversing light switch.

Release cable from brackets.

Fig 7: Identifying Reversing Light Switch Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

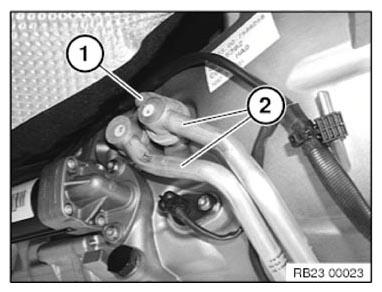

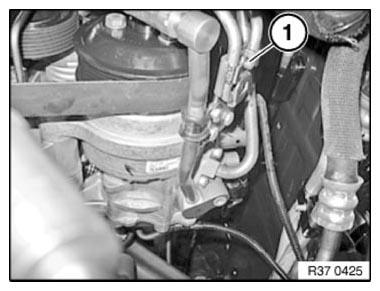

Release screw (1).

Loosen the hydraulic lines (2).

Tightening torque: 17 22 1AZ .

Installation note:

Check installed position of hydraulic lines (2).

Replace sealing rings.

Fig 8: Identifying Hydraulic Lines And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

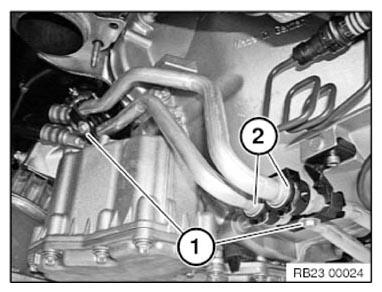

Loosen screws (1) with brackets of hydraulic lines.

Tightening torque 17 22 3AZ .

Release and disconnect hydraulic lines (2) from brackets.

Recycling:

Catch and dispose of escaping oil with auxiliary materials.

Fig 9: Identifying Hydraulic Lines And Bracket Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

Fig 10: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

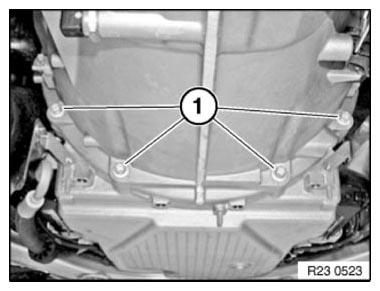

Release screws (1).

Tightening torque 23 00 1AZ .

Fig 11: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

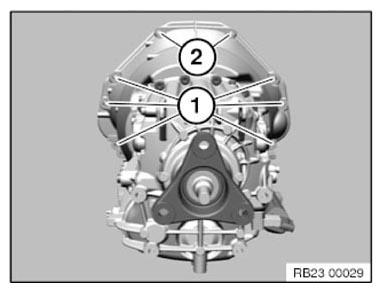

Release screws (1) and (2).

Tightening torque 23 00 1AZ .

Fig 12: Identifying Transmission Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

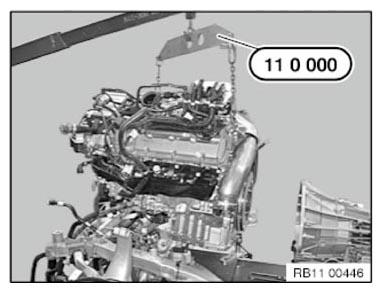

Slightly raise engine with workshop crane and special tool 11 0 000 .

This simplifies removal and installation of transmission.

Fig 13: Lifting Engine With Workshop Crane And Special Tool (11 0 000)

Courtesy of BMW OF NORTH AMERICA, INC.

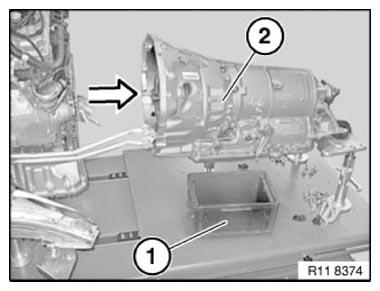

Disconnect transmission (2) from engine in the direction of arrow.

Fig 14: Disconnecting Transmission From Engine

Courtesy of BMW OF NORTH AMERICA, INC.

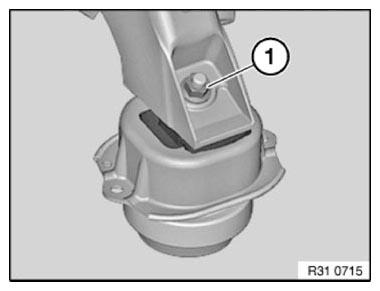

Unscrew nuts (1).

Raise engine.

Installation note:

Replace self-locking nuts.

Tightening torque 22 11 2AZ .

Fig 15: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

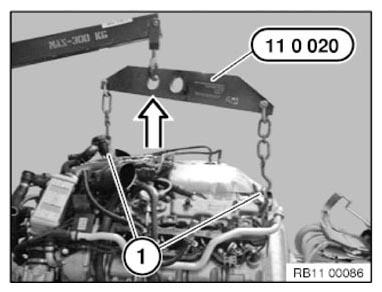

Lift engine (1) with workshop crane (2) and special tool 11 0 020 from front axle.

Mount engine on ASSEMBLY STAND .

Fig 16: Lifting Engine With Workshop Crane And Special Tool (11 0 020)
