51 44 011 Removing and installing/replacing headlining (version with tilt sunroof)

Necessary preliminary work:

• Remove BOTH SUN VISORS AND COUNTER SUPPORTS
• Remove ROOF SWITCH CLUSTER
• Remove BOTH MIRROR LIGHTS
• Remove BOTH MICROPHONES
• Remove BOTH TRIM PANELS FOR ROOF PILLAR AT FRONT  (A-pillar)
• Remove BOTH TRIM PANELS FOR DOOR POST (TOP)  (B-pillar)
• Remove BOTH TRIM PANELS FOR REAR ROOF PILLAR  (C-pillars)

Additional when removing entire headlining:

• Remove WINDSCREEN

Unclip cover (1) from headlining from bottom to top.

Release screw (2) underneath and remove support (3).

Installation note:

Latch mechanisms on cover (1) must not be damaged.

Fig 1: Identifying Cover, Support, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Press on coat hook (1).

Release screw (2) and remove coat hook (3).

Fig 2: Removing Coat Hook

Courtesy of BMW OF NORTH AMERICA, INC.

Release cover (1) from clips (2).

Release cover (1) from latch mechanisms (3) towards rear window and remove.

Fig 3: Identifying Latch Mechanisms, Clips And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Following parts of cover must not be damaged or missing.

1. Clips
2. Guide
3. Catch
   Fig 4: Identifying Clips, Guide And Catch

   Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear headlining (1) from clips (2).

Installation note:

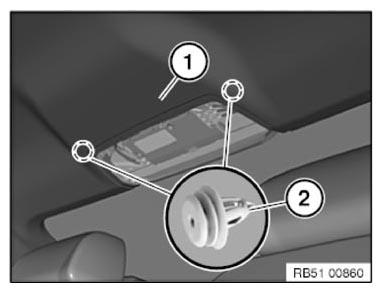

If necessary, replace defective clips (1).

Fig 5: Identifying Rear Headlining And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

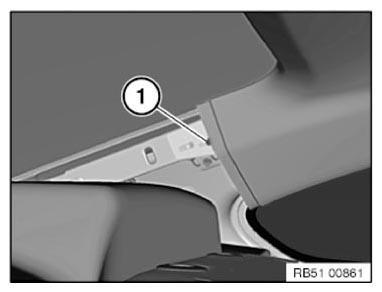

Release screw (1) in area of C-pillar left/right.

Tightening torque 51 44 2AZ .

Fig 6: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

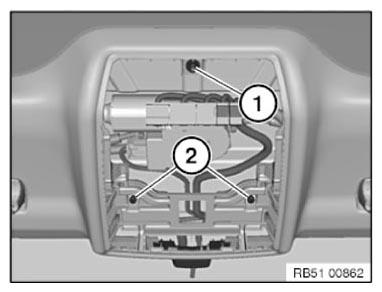

Release nuts (1) and screws (2) at support of front headlining.

Tightening torque 51 44 3AZ .

Fig 7: Identifying Front Headlining Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

• Move both front seat backrests as far back as possible.
• Pull off edge protection from front doors in area of headlining.

Detach headlining (2) downwards out of latch mechanisms (1) and remove through windscreen opening.

Installation note:

Make sure all electrical lines are correctly positioned.

Fig 8: Detaching Headlining

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guides (1) at headlining (2) must not be damaged.

Fig 9: Identifying Headlining Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

All insertion fasteners (1) on sliding sunroof frame (2) must be replaced to guarantee that headlining is held securely.

Fig 10: Identifying Sunroof Frame Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.
