51 31 011 Replace windscreen

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

51 0 010

Attention.

The following notes form the basis for these repair instructions and must be adhered to at all times:

Notes on window bonding:
- SAFETY AT WORK

- INFORMATION ON VEHICLE PROTECTION

- MATERIALS FOR BONDING WINDOW

- NOTES ON WINDOW BONDING REPAIR KIT

- TOUCHING UP PAINTWORK DAMAGE
Refer to GENERAL PROCEDURE for dismantling/installation of affixed window glass

Removal is performed with ROLL OUT 2000 .

The following new parts/consumables are required (sourcing reference BMW Parts Department).

Material	Quantity
Windscreen	1
Cover, windscreen	1
Spacer buffer 5x5x20 mm	5
Small repair kit	1

Necessary preliminary work:

Depending on version:

Remove CAMERA FOR LANE DEPARTURE WARNING
Remove the RAIN/LIGHT/SOLAR AND CONDENSATION SENSOR and immediately install on a new windscreen.

Window removal:

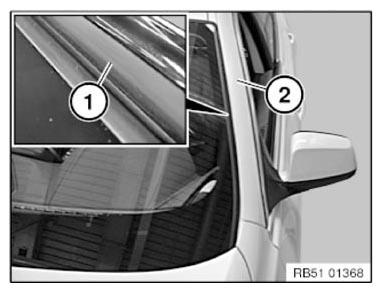

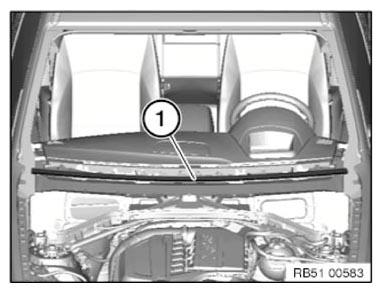

Rubber frame (1) is secured at the side to the A-pillar (2) with double-sided adhesive tape.

M6 only : rubber frame (1) is additionally secured in roof area with double-sided adhesive tape.

Release double-sided adhesive tape from body rubber frame (1).

Before installing the windscreen, remove adhesive residue from the body and clean adhesive area.

Fig 1: Identifying Rubber Frame And A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Tape off body in area of piercing point with fabric adhesive tape.

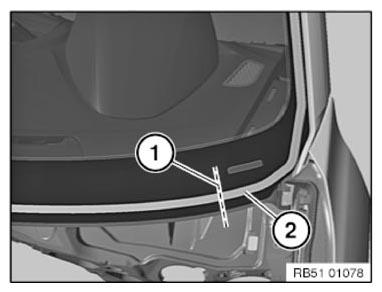

Push wire from ROLL OUT 2000 along line (1) through adhesive bead (2).

For details on how to proceed, refer to: WINDOW REMOVAL WITH "ROLL OUT 2000" .

Lift out windscreen with suction cup.

Fig 2: Pushing Wire Through Adhesive Bead

Courtesy of BMW OF NORTH AMERICA, INC.

Window installation:

Completely remove any excess of removed spacer buffers and exactly keep the installation position to prevent windscreen breakage and wind noise.

Installation position of spacer buffers (2) is marked on the body side (1).

Position the spacer buffers (2) in the center of the embossed marks (1).

Buffer sizes to be used: 5x5x20 mm.

Fig 3: Identifying Spacer Buffers

Courtesy of BMW OF NORTH AMERICA, INC.

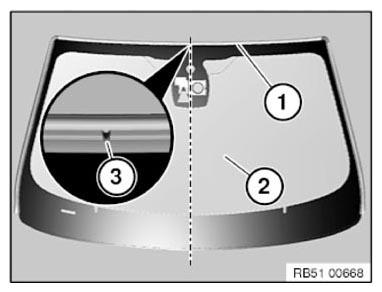

Attach new cover (1) to windscreen (2).

NOTE: Notch (3) of the cover (1) is in the center of the windscreen (2).

Clean adhesive area of cover (1) on body.

Fig 4: Identifying Windscreen Cover And Notch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

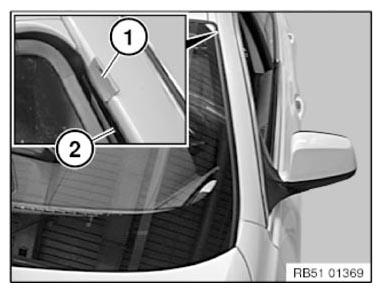

If necessary, replace defective expanding foam tape (1).

Observe NOTES on component-bonding with adhesive tape.

Fig 5: Identifying Expanding Foam Tape

Courtesy of BMW OF NORTH AMERICA, INC.

Overview of windscreen bonding:

Fig 6: Overview Of Windscreen Bonding

Courtesy of BMW OF NORTH AMERICA, INC.

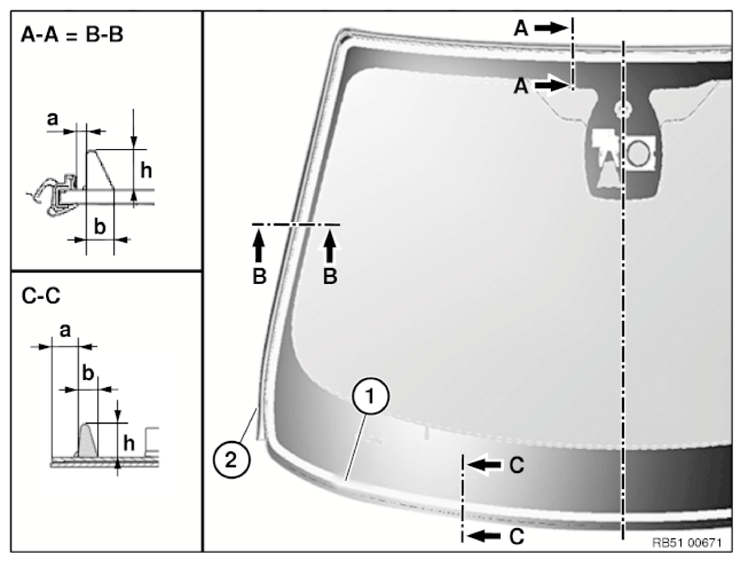

Bead joint (approx. 300 mm from window edge)
Windscreen cover

Cut	A - A and B - B	C - C
a [mm] = Position adhesive bead	2 ±2	20 ±2
b [mm] = Width adhesive bead	8 ±2	8 ±2
h [mm] = Height adhesive bead	12 ±1	12 ±1

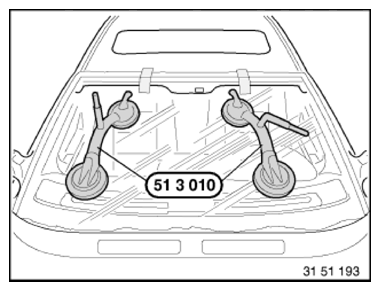

Perform the following steps carefully on the windscreen using siphon (51 3 010):

Insert between engine compartment lid and cowl panel
Position windscreen at top
Align sides evenly
Insert at bottom and press down
Press windscreen upwards until seal is uniformly contacting roof
Affix the windscreen in this position using plastic adhesive tapes

Fig 7: Positioning Windscreen

Courtesy of BMW OF NORTH AMERICA, INC.

Preload on top of windscreen to prevent wind noise:

Windscreen (1) must be lower than roof outer skin (2). This is the only way to prevent wind noises.

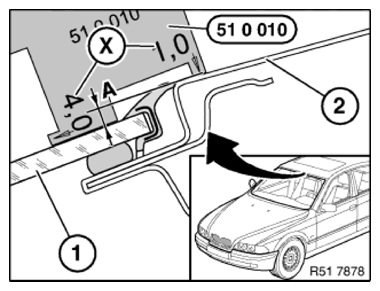

Position special tool 51 0 010 in center of vehicle depending on dimension (A) and check underprotrusion of windscreen (1).

Windscreen underprotrusion (A):

F12	3, 3 mm
F06/F13	4, 3 mm

X = Measurement stages 1... 4 mm

Fig 8: Checking Windscreen Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off liner (1).

Press cover (2) on to A-pillar.

Make sure cover (2) is correctly fitted on A-pillar.

M6 only: additionally bond cover (2) to roof.

Fig 9: Identifying Cover And Liner

Courtesy of BMW OF NORTH AMERICA, INC.

Version with HUD only:

Check HUD functions again and if necessary adjust.

Only with camera-based driver support systems:

Carry out camera calibration via diagnosis system.

Under Service Functions menu:

Driver assistance
- Camera-based driver support systems
  - Calibration of camera-based driver support systems
