61 31 043 Removing and installing/replacing roof switch cluster (complete with cover) (roof function center)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Follow notes for handling light bulbs (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Carefully unclip cover (1) with special tool 00 9 323 and remove.

Installation note:

Ensure cover (1) is correctly seated.

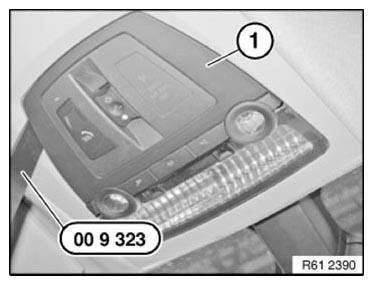

Fig 1: Removing Cover Using Special Tool (00 9 323)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining lugs (1) with suitable tool while carefully lifting out with special tool 00 9 325 .

Remove roof switch cluster (2) in direction of arrow.

Unlock plug connections underneath and disconnect.

Installation note:

Retaining lugs (1) must not be damaged.

Make sure roof switch cluster (2) is correctly fitted.

INITIALIZE slide/tilt sunroof if necessary.

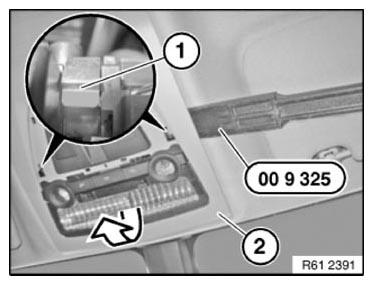

Fig 2: Removing Roof Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).
After installation, read out fault memory and if necessary delete entry.
