51 43 148 Removing and installing or replacing trim panel on left or right door post (top)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Partially loosen edge protection (1).

Release side trim panel (2) at clips (3).

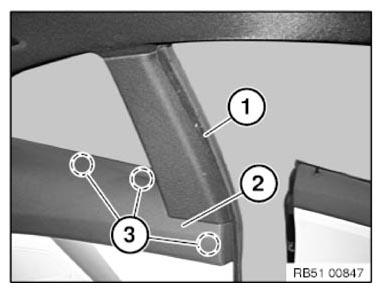

Fig 1: Identifying Side Trim Panel, Clips, And Edge Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull side trim panel (1) slightly inwards and release trim panel (2) from clips (3).

Firstly thread out trim panel (2) downwards out of guides in area (A) then remove upwards out of side trim panel (1).

Fig 2: Identifying Trim Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clips (1) and guides (2) of trim panel (3) must not be damaged or missing.

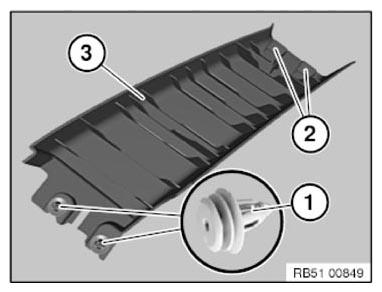

Fig 3: Identifying Trim Panel, Clips, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.
