51 16 080 Removing and installing or replacing sun visor and left or right counter support

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The operation is shown on the left side; proceed in the same way for the right side.

Fold down sun visor (5).

Lever out cover (2) on counter support (1) and release screw underneath.

Release screws (3) on holder (4).

Fig 1: Locating Sun Visor Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Lift out sun visor (1).

If necessary, pull out cable (2) slightly and disconnect plug connection (3).

Installation note:

Perform function check on lighting.

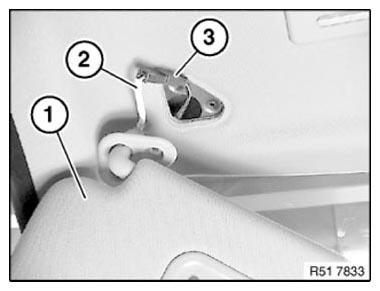

Fig 2: Identifying Sun Visor, Cable And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.
