51 43 251 Removing and installing or replacing trim panel for left or right rear roof pillar (C-pillar)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear left/right HEAD RESTRAINTS

Lever out cover (1) and release screw underneath.

Tightening torque 51 43 2AZ .

Release trim panel (2) at clip (3).

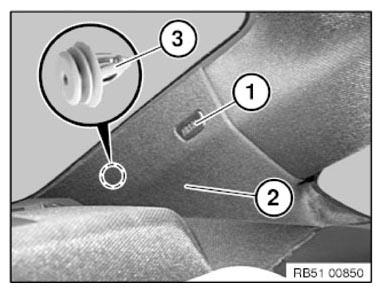

Fig 1: Identifying Trim Panel, Clip And Cover

G10062965

Courtesy of BMW OF NORTH AMERICA, INC.

Pull rear seat (1) slightly forwards and release screw (2).

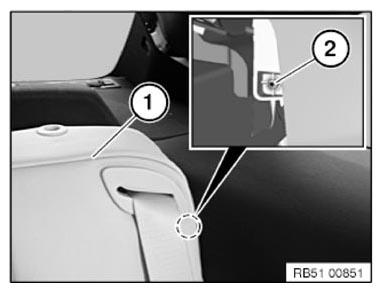

Fig 2: Identifying Rear Seat And Screw

G10062966

Courtesy of BMW OF NORTH AMERICA, INC.

Only unclip side trim panel (1) to the rear inwards.

Feed out trim panel (2) from storage shelf (3) and side trim panel.

NOTE: Trim panel (2) is engaged in storage shelf (3) with guide (4).

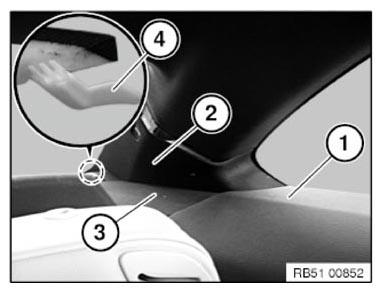

Fig 3: Identifying Trim Panel, Guide, And Storage Shelf

G10062967

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Guide (1) and clip (2) at trim panel (3) must not be damaged.

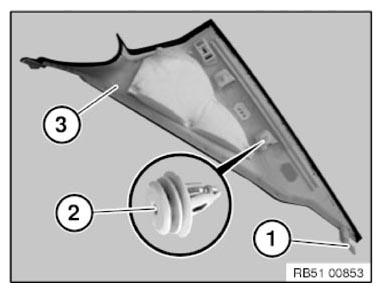

Fig 4: Identifying Guide, Clip And Trim Panel

G10062968

Courtesy of BMW OF NORTH AMERICA, INC.
