51 12 156 Removing and installing (replacing) rear bumper panel
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To guarantee system function on vehicles with LANE CHANGE WARNING SENSOR
:
Follow the further instructions according to painting manual.
- there must be no mechanical damage (e.g. dents) and no body repair work with filler or painting (several coats) must be carried out in a 10 cm radius about the left or right sensor on the bumper panel
- no stickers must be attached in the area of the sensor
Follow the further instructions according to painting manual.
IMPORTANT:
Risk of damage.
The rear lights must be removed to remove the bumper panel.
The rear lights must be removed to remove the bumper panel.
Necessary preliminary tasks:
- Remove BOTH REAR LIGHTS
- Remove number plate with baseplate
- Remove WATER CHANNEL COVER

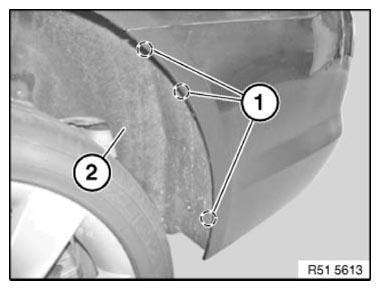

Release screws (1) on wheel arch trim (2).

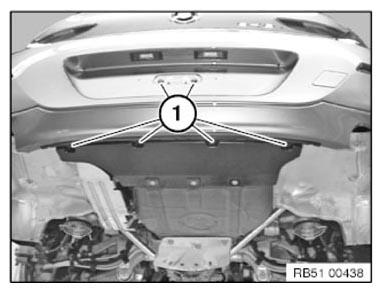

Release expanding rivets (1).
Release screw (1).
Tightening torque 51 12 6AZ .

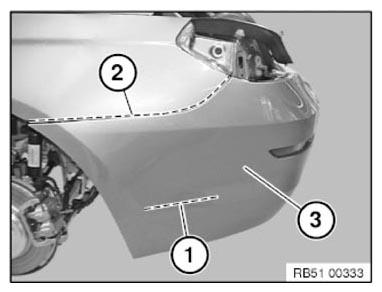

Release latch mechanisms (2) from bumper (3).
IMPORTANT:

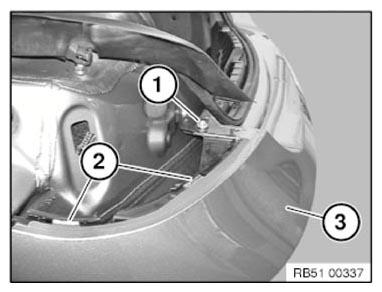

Bumper panel (3) is laterally engaged in fixture holders (1) and (2). Holders (1) and (2) must be disengaged for dismantling (risk of damage).
- Starting from the outside, carefully snap out the individual guide tabs on left and right
- Pull bumper panel (3) straight backward with aid of a second person
- If necessary, disconnect plug connections
- Remove the bumper panel (3)

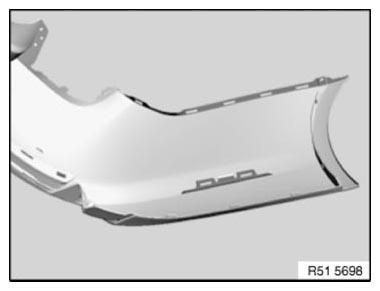

Installation note:
Guide tabs at top and bottom must not be damaged.
Observe 41 00... BODY GAP DIMENSIONS .
Replacement:
- Remount towing eye cover
- Remount NUMBER PLATE LIGHT
- Remount REAR ULTRASONIC SENSOR
- Remount REAR REFLECTOR
