66 32 020 Removing and installing/replacing sensor for lane change warning on left or right

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR BUMPER PANEL

Unfasten plug connection (1) and disconnect.

Release screw (3).

Remove sensor (2).

Installation note:

Ensure that the guides are correctly seated at the marked locations.

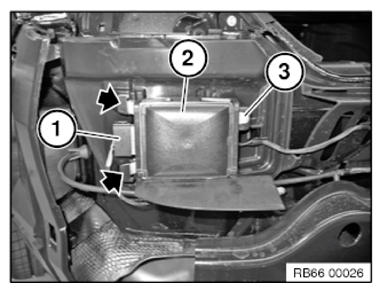

Fig 1: Identifying Sensor, Screw, Plug Connection, And Guides

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Modify frame (2) for new sensor (1).

Fig 2: Modifying Frame For New Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: If, in the event of side damage to the vehicle, it is not necessary to replace the tail panel, observe the following points:
Fit middle bumper panel guide on undamaged side
Use middle bumper panel guide as a gauge in order to check or correct the position of the remaining connecting points.
Middle bumper panel guide must be to be fitted without tension.

Replacement:

Carry out VEHICLE PROGRAMMING AND ENCODING .

Replacement after body repair:

Execute diagnosis job
>
- Start-up
  - Lane change warning sensor system
