63 14 120 Removing and installing or replacing rear reflector

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 327

NOTE: Illustrations depict removal of left rear reflector. The rear reflector is removed in the same manner. The graphics show a mirrored image of the situation.

Carefully unclip the rear reflector (1) with the special tool 00 9 327 as shown.

Detach the rear reflector (1) from the bumper panel (2).

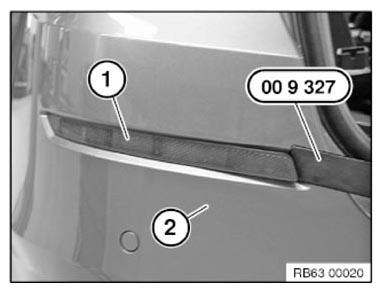

Fig 1: Removing Rear Reflector Using Special Tool 00 9 327

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Clamps (1) must not be damaged or missing.

Make sure rear reflector (2) is correctly seated.

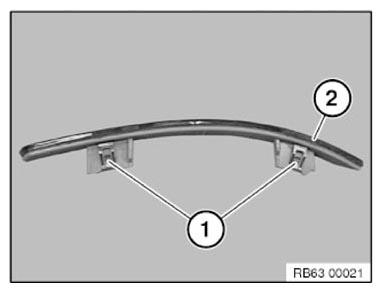

Fig 2: Identifying Rear Reflector And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.
