63 21 180 Removing and installing/replacing left or right rear light (in side wall)

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Remove plugs (1) and release the nuts below them on the rear light.

Tightening torque 63 21 2AZ .

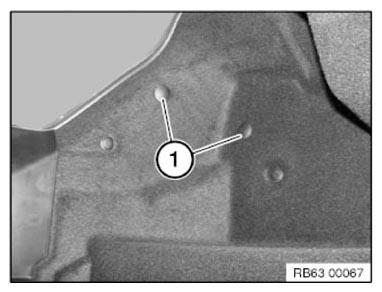

Fig 1: Identifying Plugs
G10064492Courtesy of BMW OF NORTH AMERICA, INC.

Pull out rear light (1) slightly in direction of arrow.

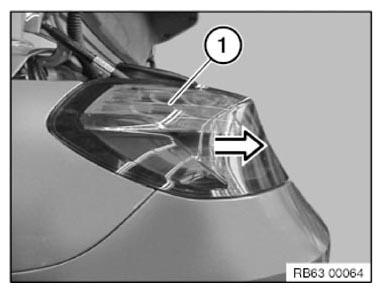

Fig 2: Pulling Out Rear Light
G10064493Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

Remove rear light.

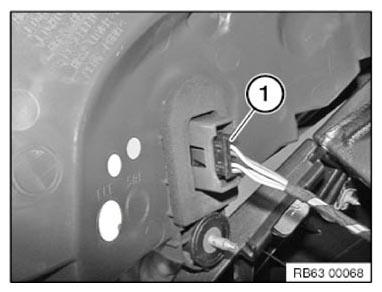

Fig 3: Identifying Rear Light Plug Connection
G10064494Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Seals (1) and guide (2) must not be damaged or missing.

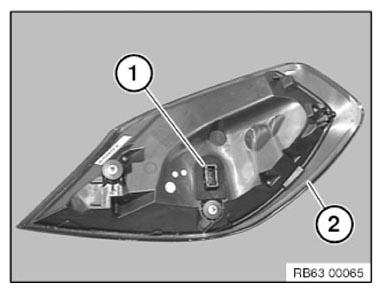

Fig 4: Identifying Seals And Guide
G10064495Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Rear light guide (1) must be correctly engaged in bush (2) when installed.

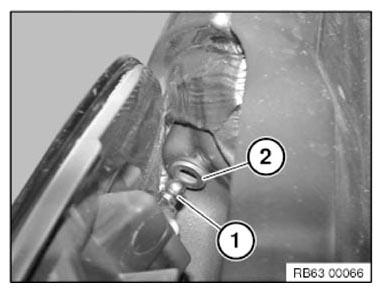

Fig 5: Identifying Rear Light Guide And Bush
G10064496Courtesy of BMW OF NORTH AMERICA, INC.
