41 00... Body Gap Dimensions

The dimensions specified in this service information are applicable at an object temperature of 20 °C. The aim of adjustment is to achieve a uniform gap.

Symmetry of the gaps between left and right sides of the vehicle has top priority.

For door gaps, the maximum deviation between the front and rear door gaps must be 1.0 mm.

No gap dimension are specified for components which cannot be adjusted.

Dimensions in mm

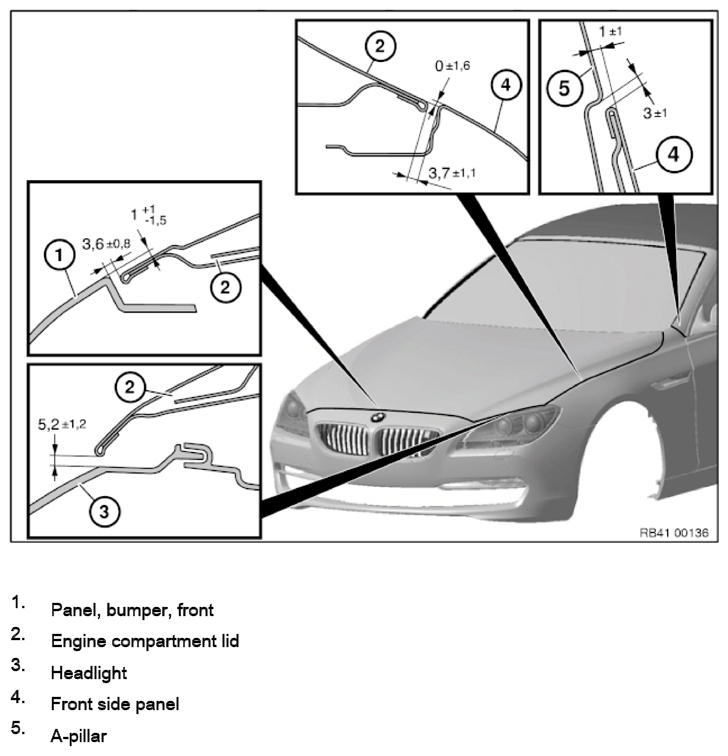

Fig 1: Front Bumper, Hood, Headlamp, Front Fender And Front Pillar Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

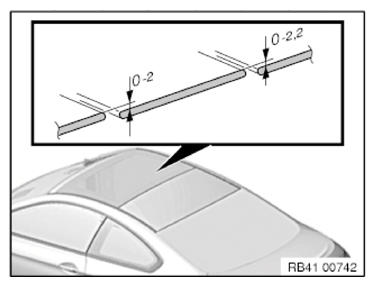

Fig 2: Roof And Moon Roof Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

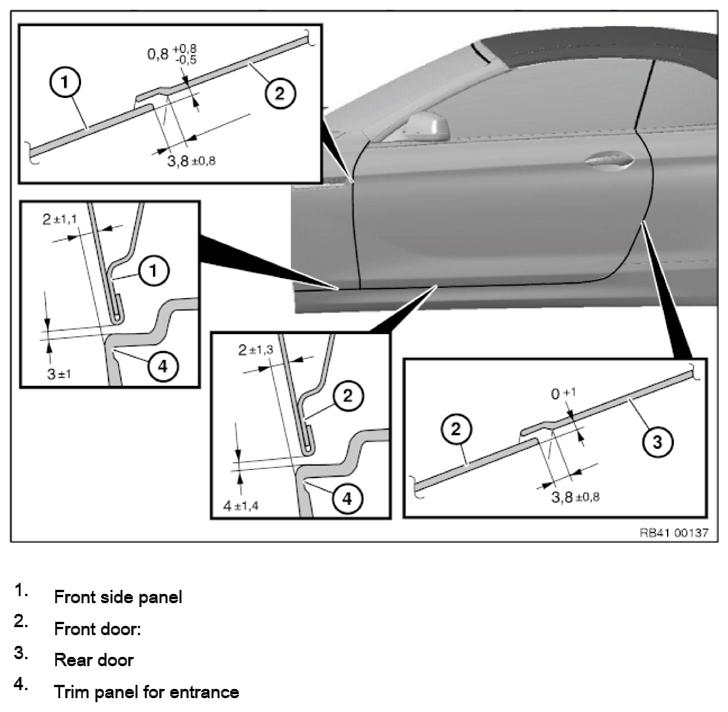

Fig 3: Front Fender, Front Door, Quarter Panel And Sill Trim Panel Body Gap Dimensions And Measurement Points

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration shows F12

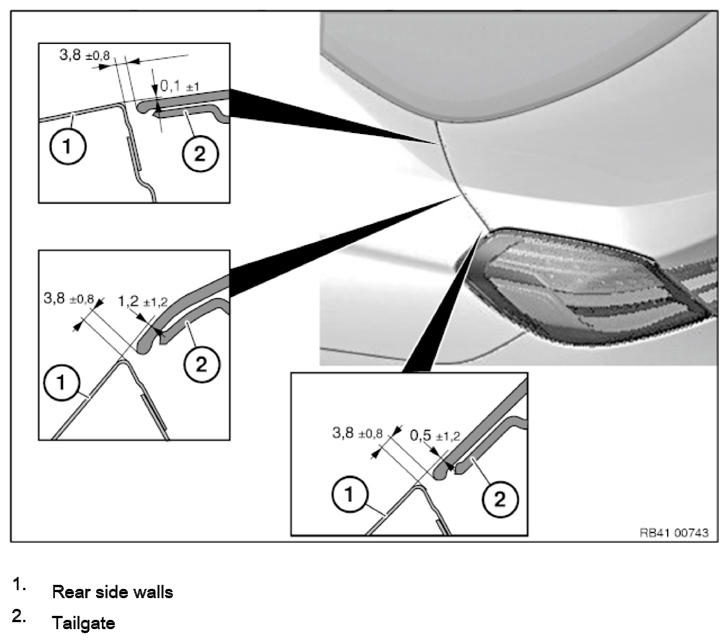

Fig 4: Quarter Panel And Trunk Lid Body Gap Dimensions And Measurement Points (Illustration Showing F12)

Courtesy of BMW OF NORTH AMERICA, INC.

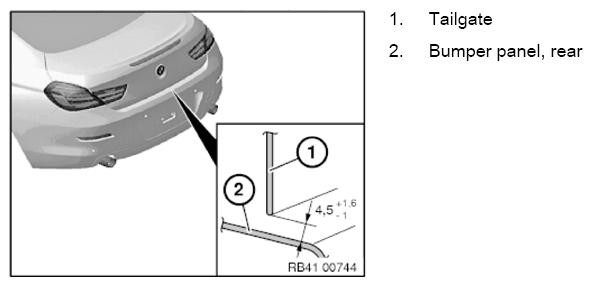

Fig 5: Trunk Lid And Rear Bumper Body Gap Dimensions And Measurement Points (Illustration Showing F12)

Courtesy of BMW OF NORTH AMERICA, INC.
