51 71 387 Removing and installing/renewing rear water channel cover (rear lid) on left or right
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2017 BMW M6, 2017 BMW 650i xDrive, 2017 BMW 650i, 2017 BMW 640i xDrive, and 2017 BMW 640i. However, it is still accessible from the selected car via links, so may be relevant.

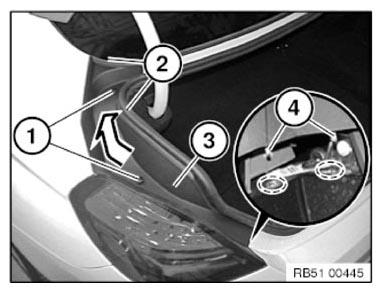

Release clamps (1).
Remove gasket (2).
Unclip water channel cover (3) at catches (4) from bumper panel.
Remove water channel cover (3) in direction of arrow.
NOTE:
If clip mountings are removed during further operations (e.g. painting), always replace these mounting to ensure watertightness.
Installation note:

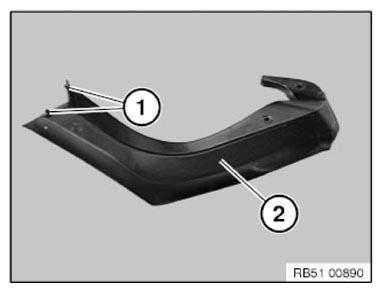

Catches (1) on water channel cover (2) must not be damaged or missing.
When installing water channel cover (2) first clip catches (1) into bumper panel.
