64 11 205 Removing and installing/replacing heater (A/C control)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refrigerant drawn off from A/C system. Refer to 64 50 009 Drawing off, evacuating and filling A/C system (R 134a) .
Drain coolant. Refer to 17 00 005 DRAINING AND ADDING COOLANT (S62) .
Remove microfilter for passenger compartment ventilation. Refer to 64 31 010 Replacing microfilter for interior ventilation .
Remove assembly compartment partition wall. Refer to 51 71 080 REMOVING AND INSTALLING/REPLACING PARTITION WALL FOR EQUIPMENT COMPARTMENT ON RIGHT .
Remove storage compartment. Refer to 51 16 200 REMOVING AND INSTALLING CENTER CONSOLE .
Remove trim for instrument panel (upper section). Refer to 51 45 050 REMOVING AND INSTALLING TRIM FOR UPPER SECTION OF INSTRUMENT PANEL .
Remove heating duct for footwell on right. Refer to 64 11 820 Replacing servodrive of fresh air flap .

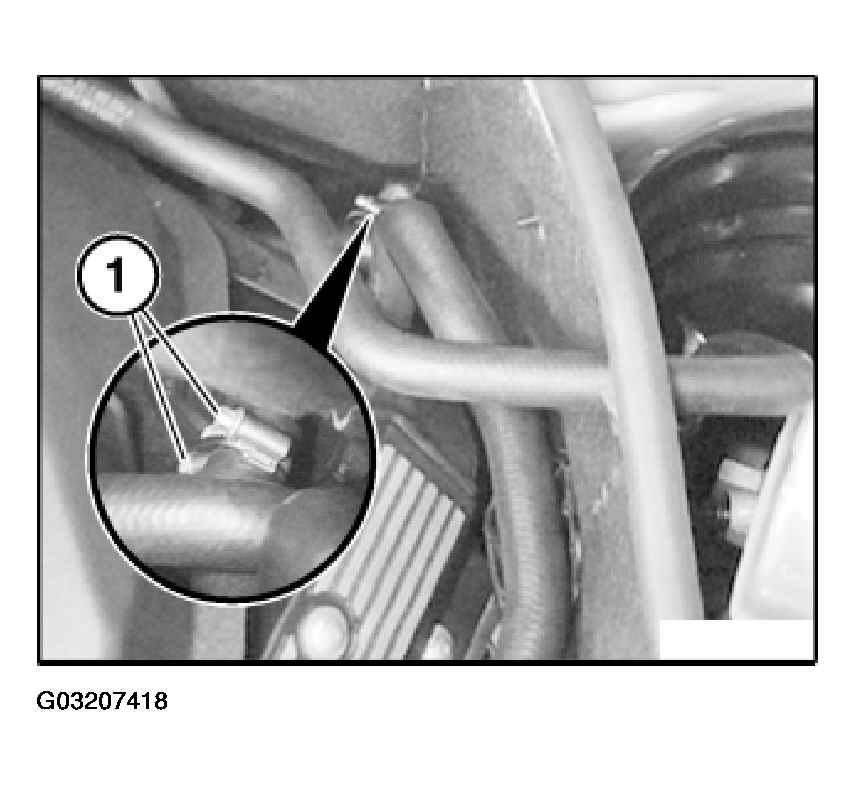

Release hose clamps (1) and detach coolant hoses.

Fig 1: Releasing Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Important!

Carefully blow through lines in order to remove remaining coolant from heating element.

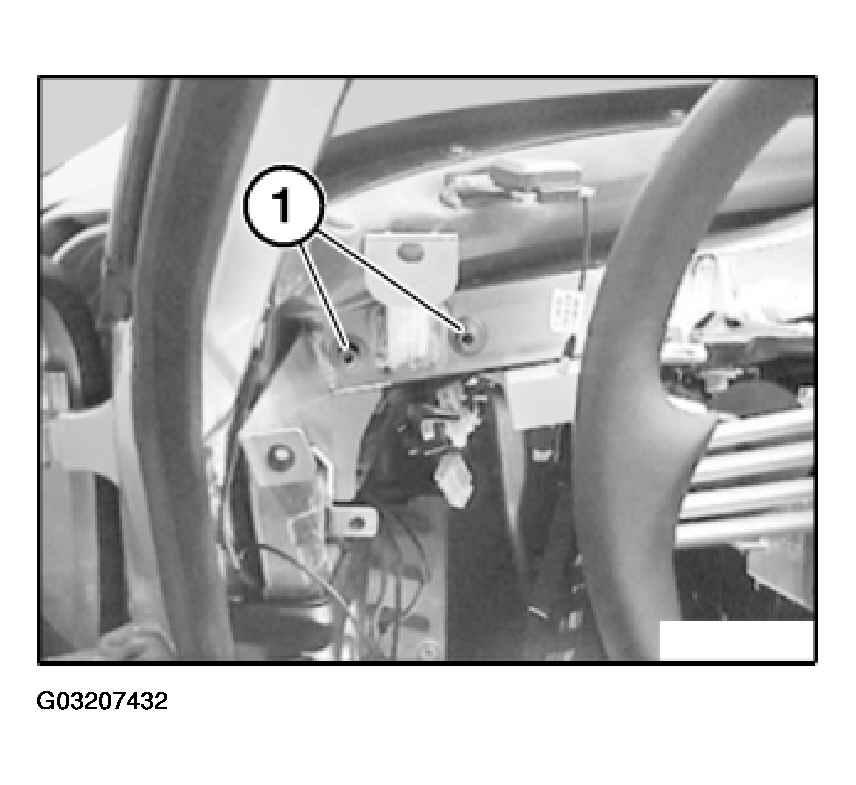

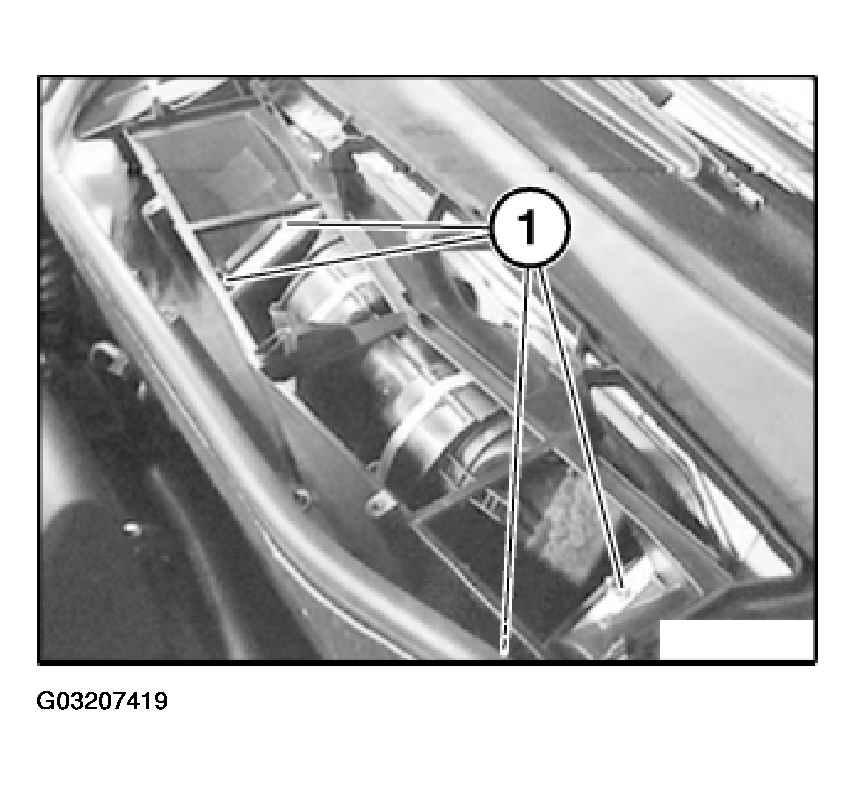

Unscrew nuts (1).

Fig 2: Removing Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

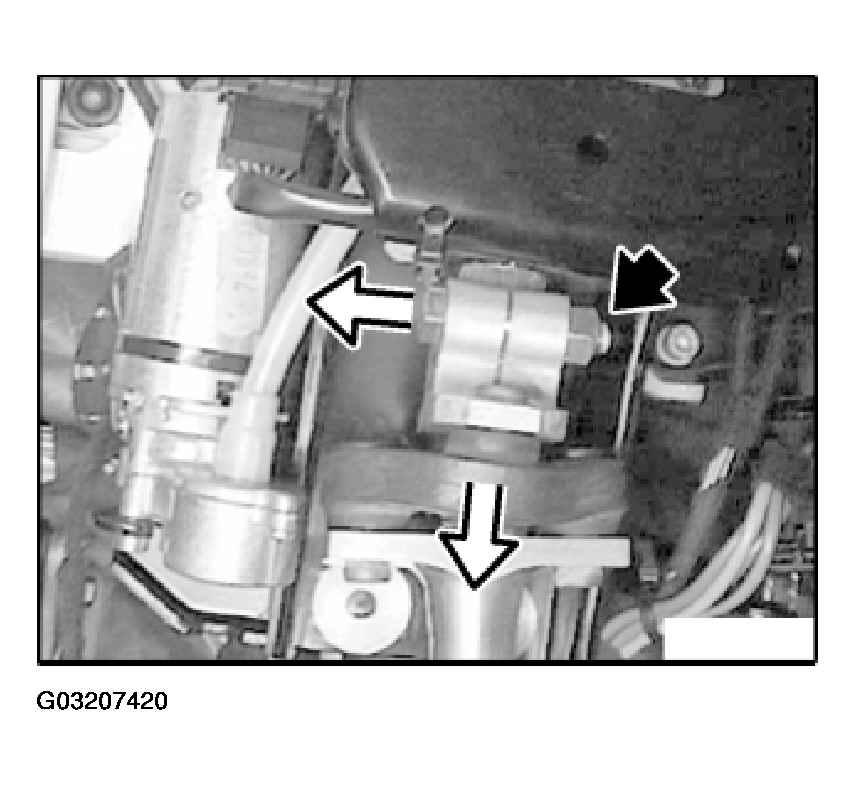

Release nut and remove clamping screw.

Fig 3: Releasing Nut And Removing Clamping Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Slide steering spindle forwards in direction of arrow.

Installation:

Replace clamping screw.

Clamping screw must rest in retaining groove of upper steering spindle.

Observe tightening torque, 22 Nm.

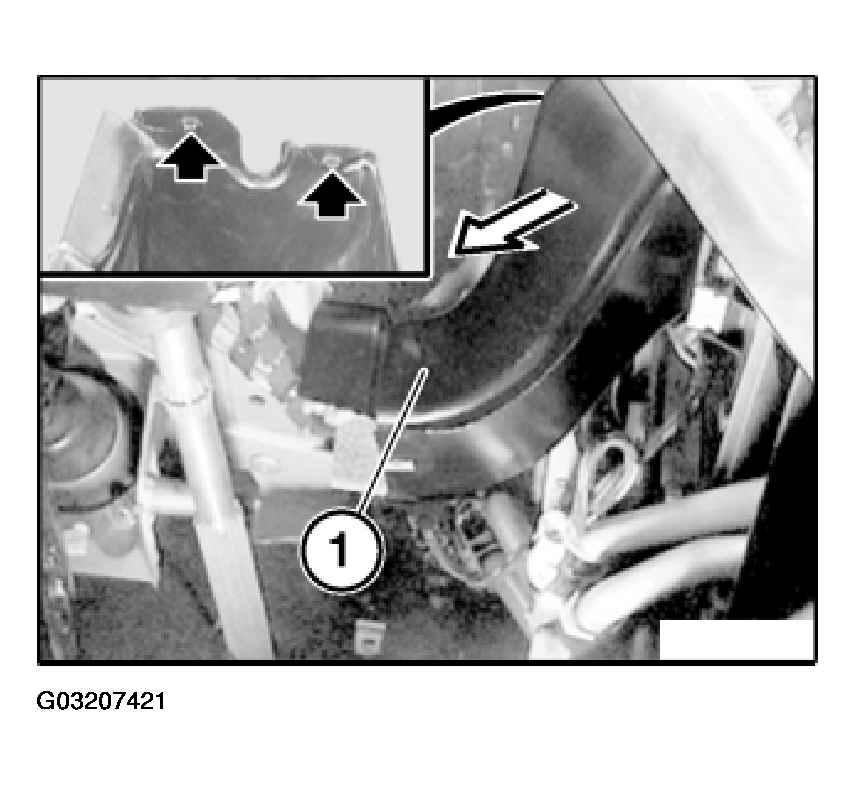

Unclip heating duct for footwell on left (1) at catches and remove in direction of arrow.

Fig 4: Unclipping Heating Duct For Footwell

Courtesy of BMW OF NORTH AMERICA, INC.

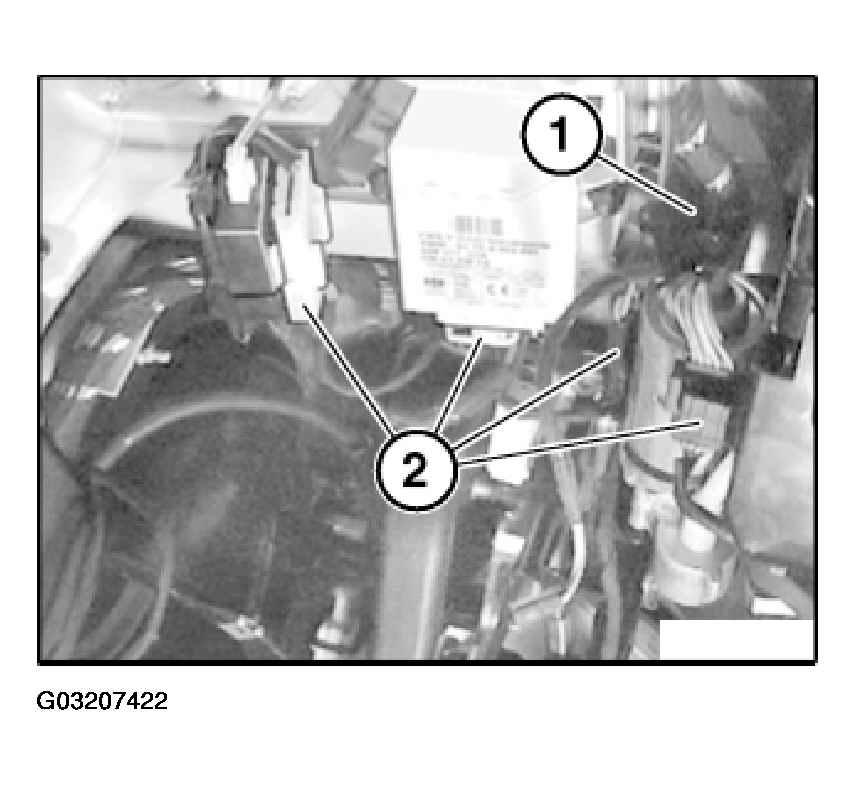

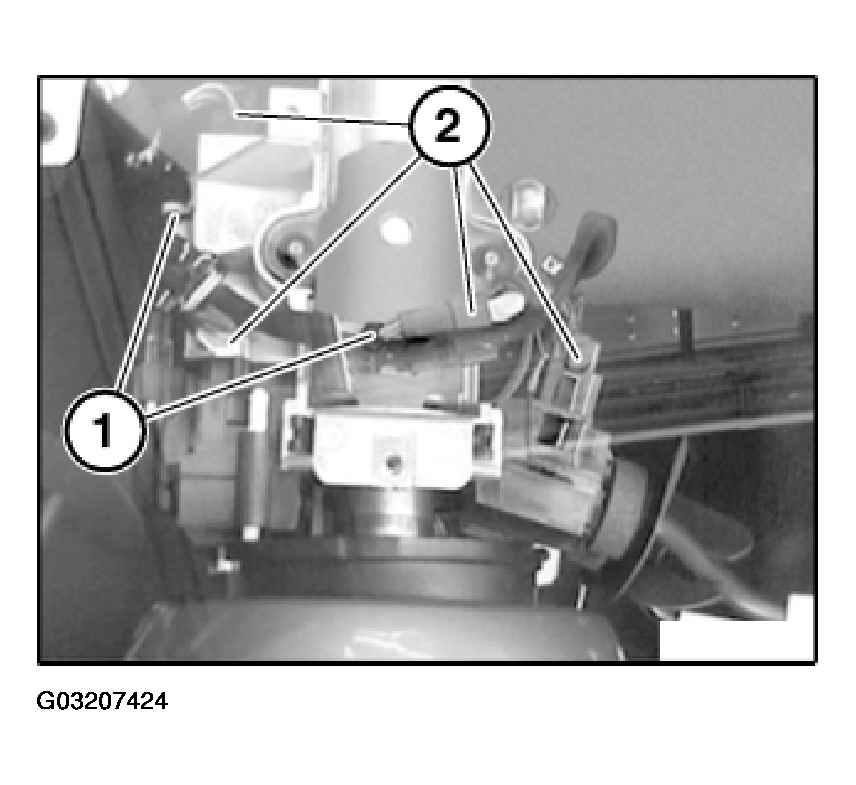

Detach cable strap (1).

Disconnect plug connections (2).

Fig 5: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip wiring harness (1).

Fig 6: Unclipping Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (2) and disconnect.

Disconnect plug connection (3).

Detach cable straps (1).

Fig 7: Detaching Cable Straps

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (2).

Fig 8: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

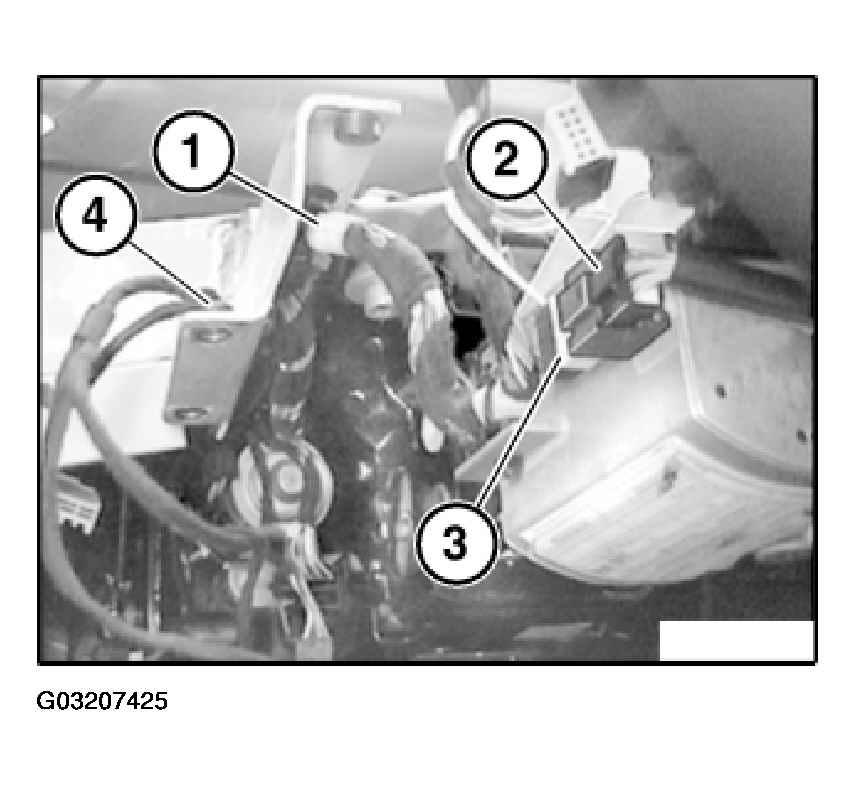

Detach cable strap (1).

Disconnect plug connection (2).

Unlock plug (3) and detach from steering column.

Unclip wiring harness (4).

Disconnect plug connections (1) and (2).

Fig 9: Disconnecting Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

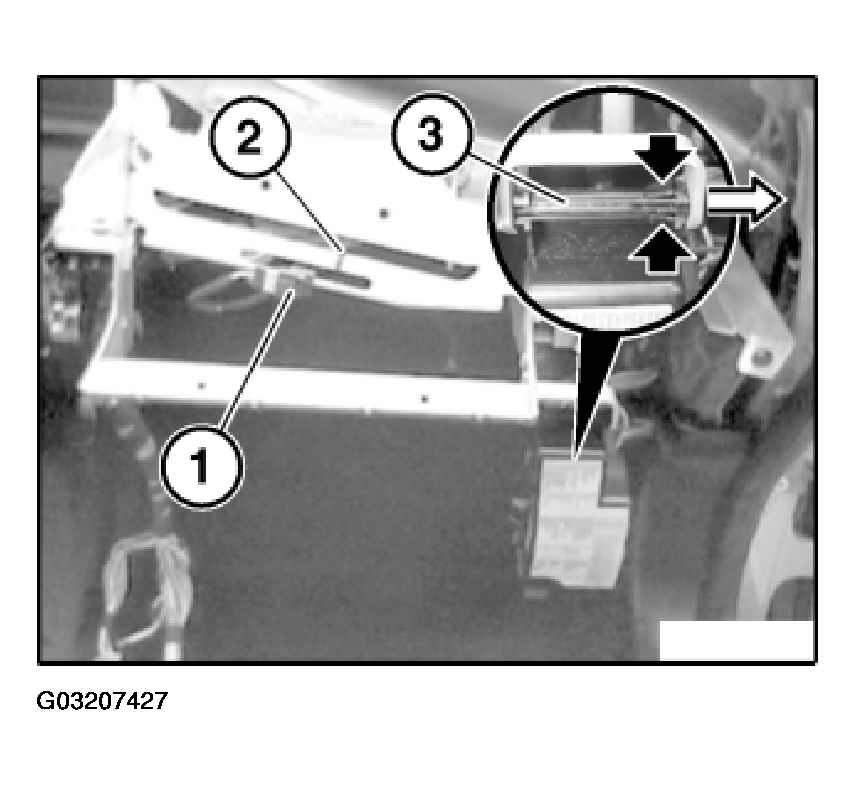

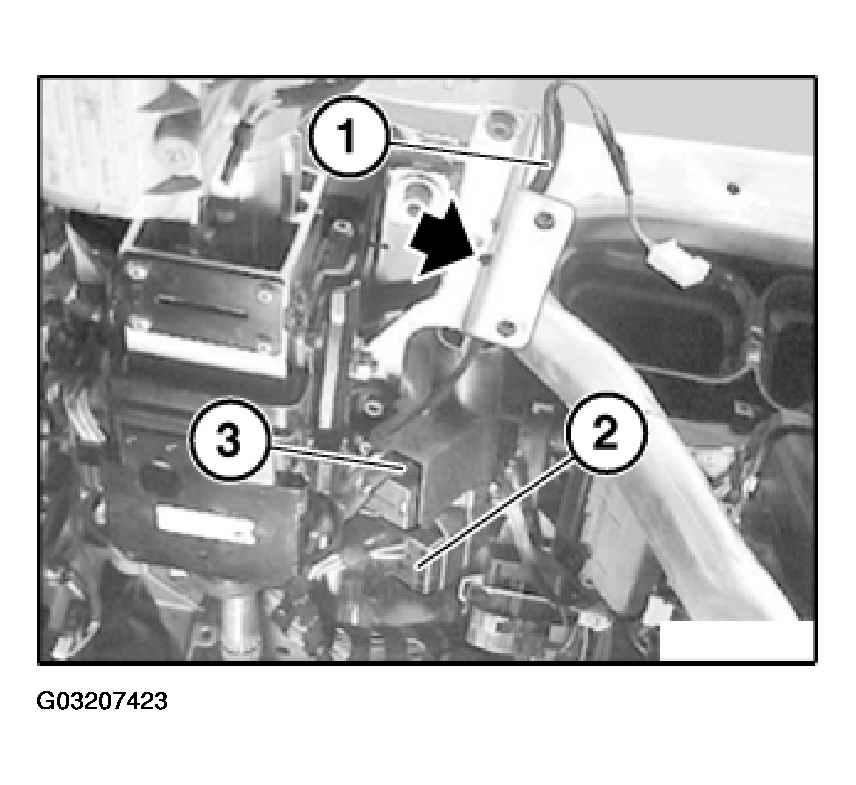

Unclip plug connection (1).

Detach cable strap (2).

Unlock pin (3) and pull out in direction of arrow.

Fig 10: Unlocking Pin

Courtesy of BMW OF NORTH AMERICA, INC.

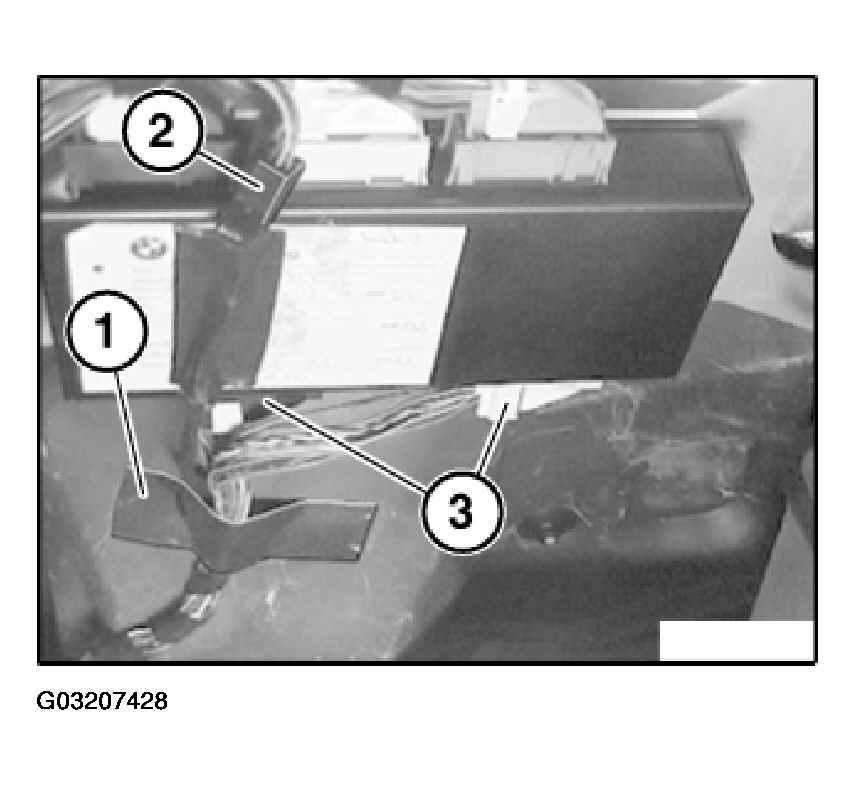

Secure wiring harness (1) as illustrated with fabric adhesive tape.

Fig 11: Securing Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (2).

Unlock plug connections (3) and disconnect.

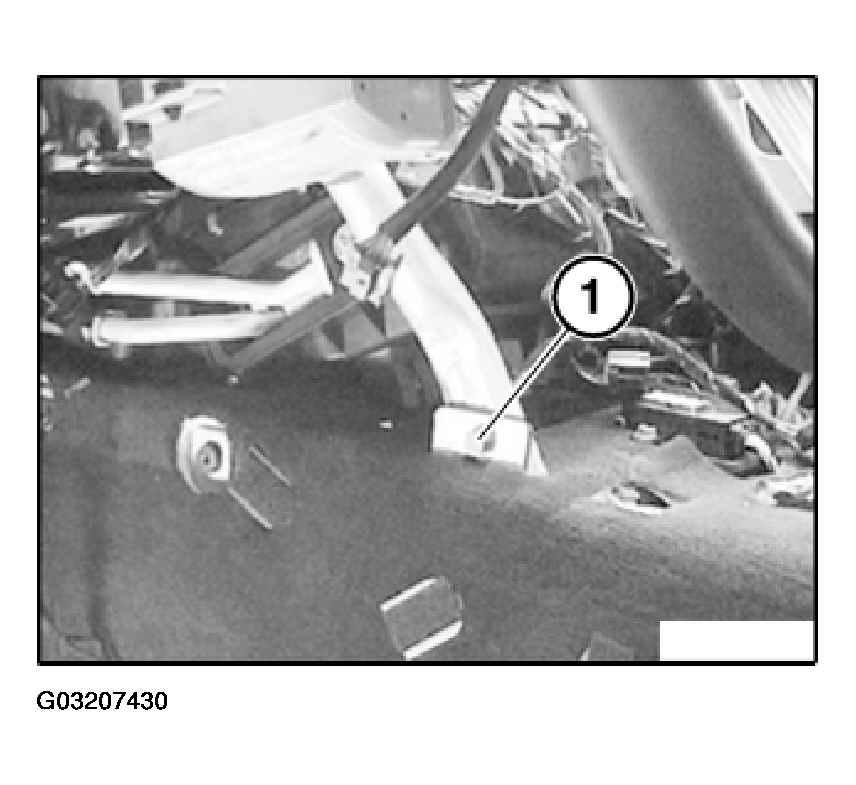

Unscrew bolt (1).

Fig 12: Removing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Cross-member of A-pillar (2) must rest on retaining bracket (3).

Observe tightening torque, 51 71 11AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Unscrew bolt (1).

Fig 13: Removing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Observe tightening torque, 51 71 10AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

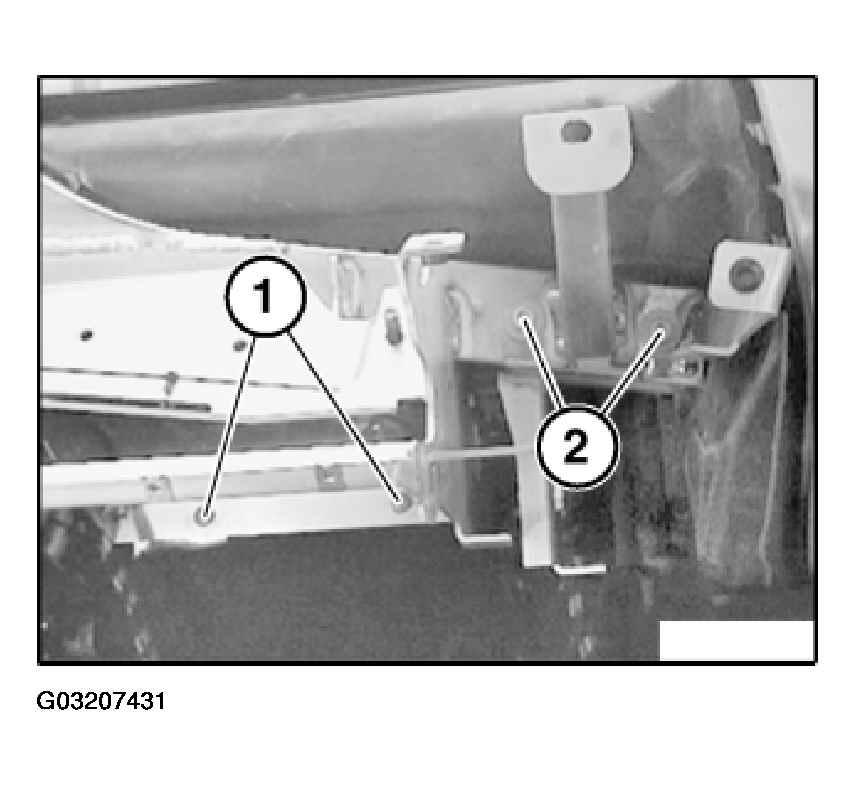

Release screws (1).

Fig 14: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Installation:

Screws (2) only:

Observe tightening torque, 51 71 8AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Release screws (1).

Installation:

Observe tightening torque, 51 71 8AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 15: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

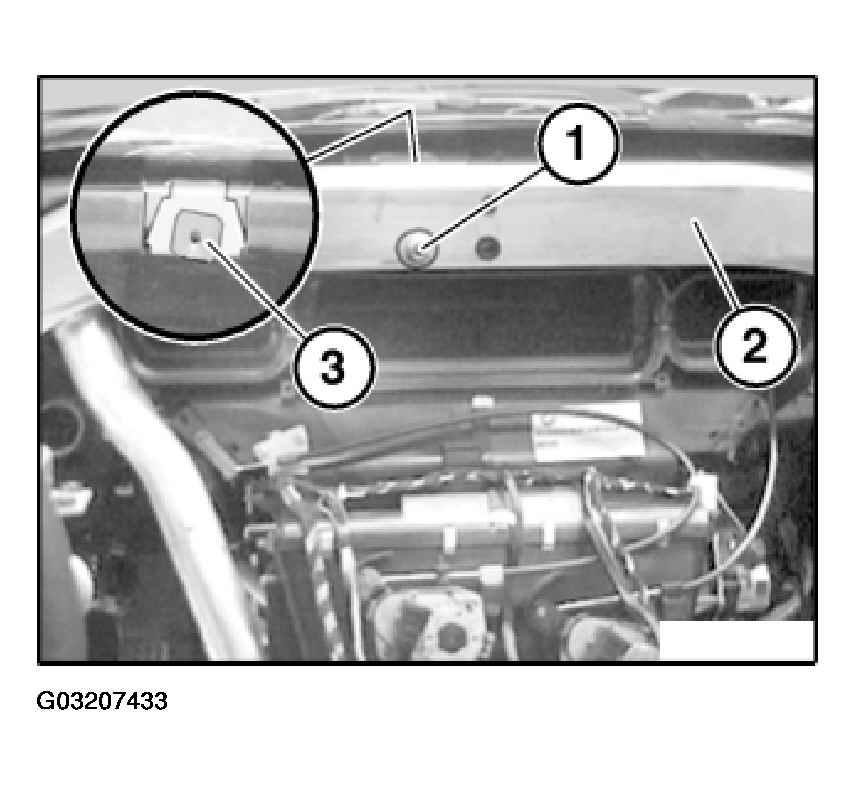

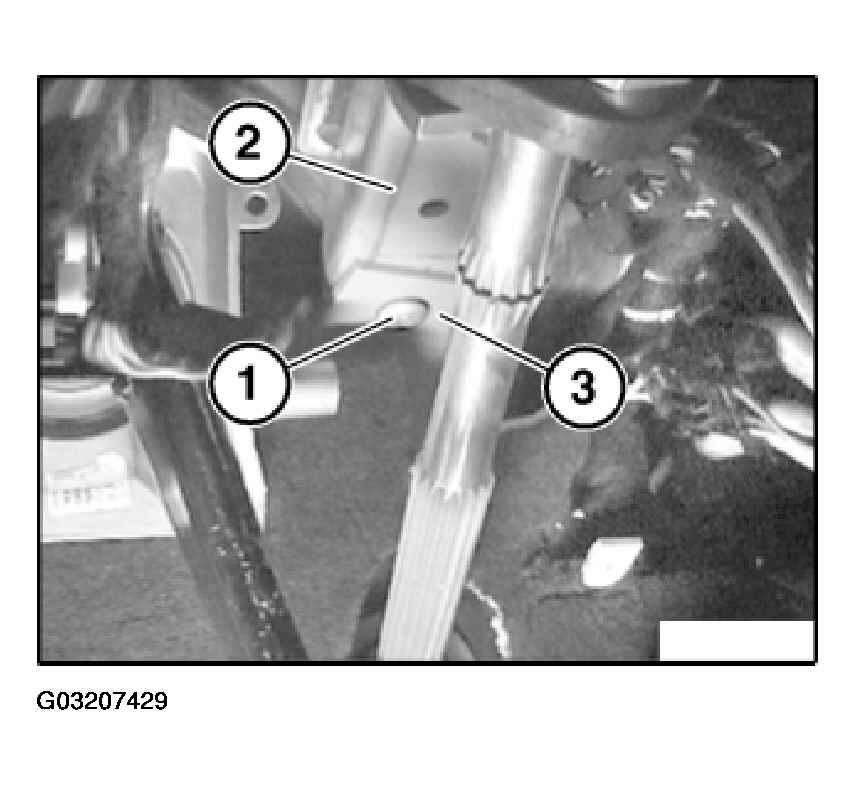

Release screw (1) and secure spacers (3) against falling out.

Fig 16: Removing Cross-Member

Courtesy of BMW OF NORTH AMERICA, INC.

Detach cross-member of A-pillar (2) with aid of a second person and remove from car.

Installation:

Observe tightening torque, 51 71 9AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Insert spacers (3) between frame and cross-member for A-pillar.

Installation:

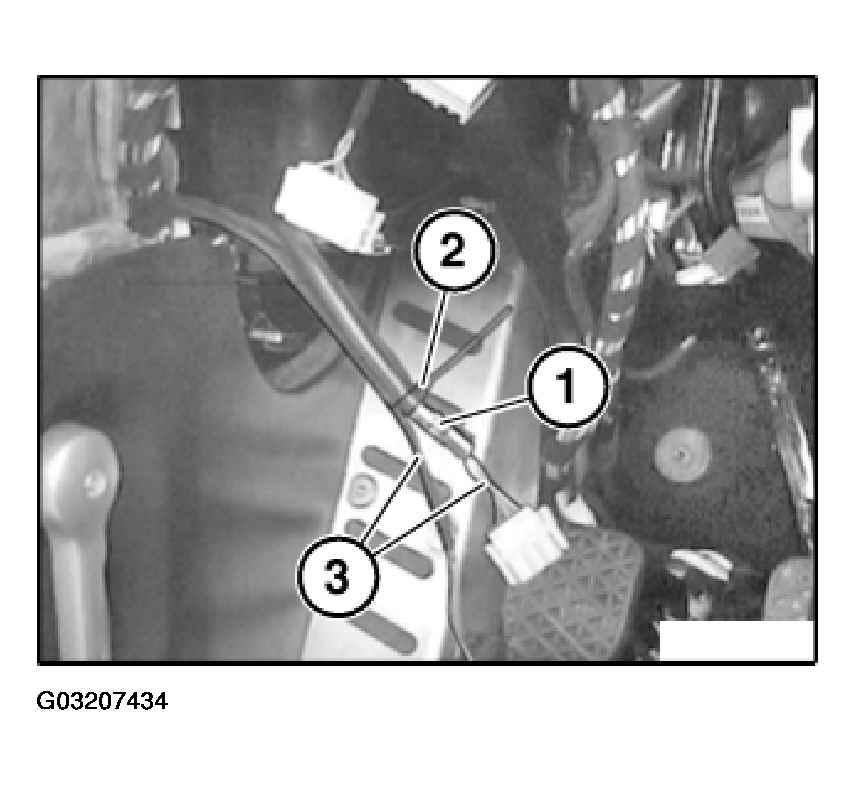

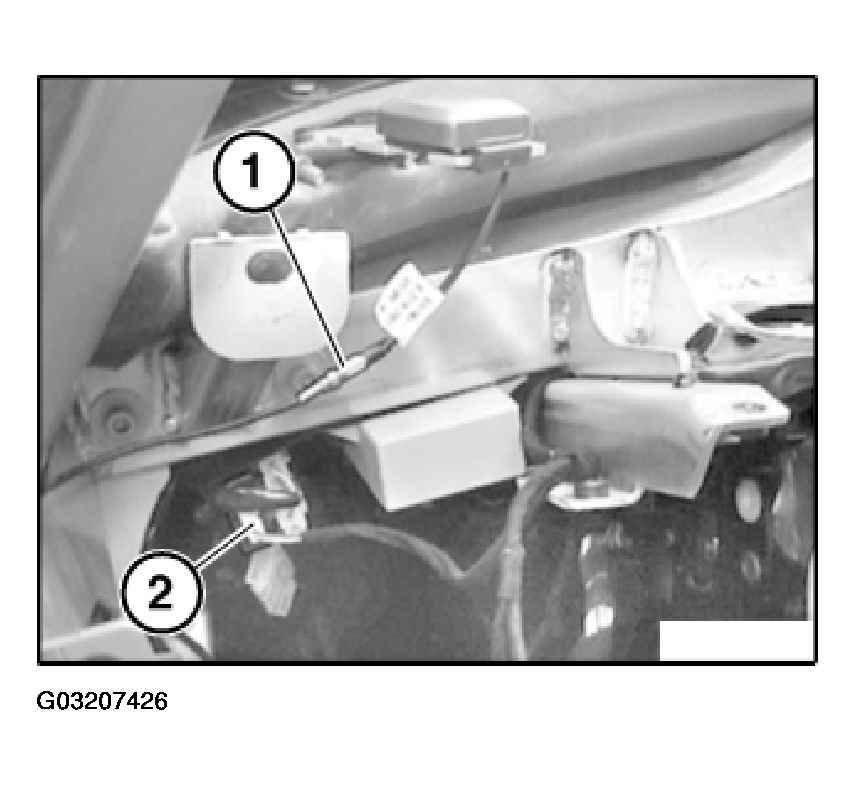

Secure optical waveguide (1) as illustrated with cable strap (2) to wiring harness (3).

Fig 17: Securing Optical Waveguide

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

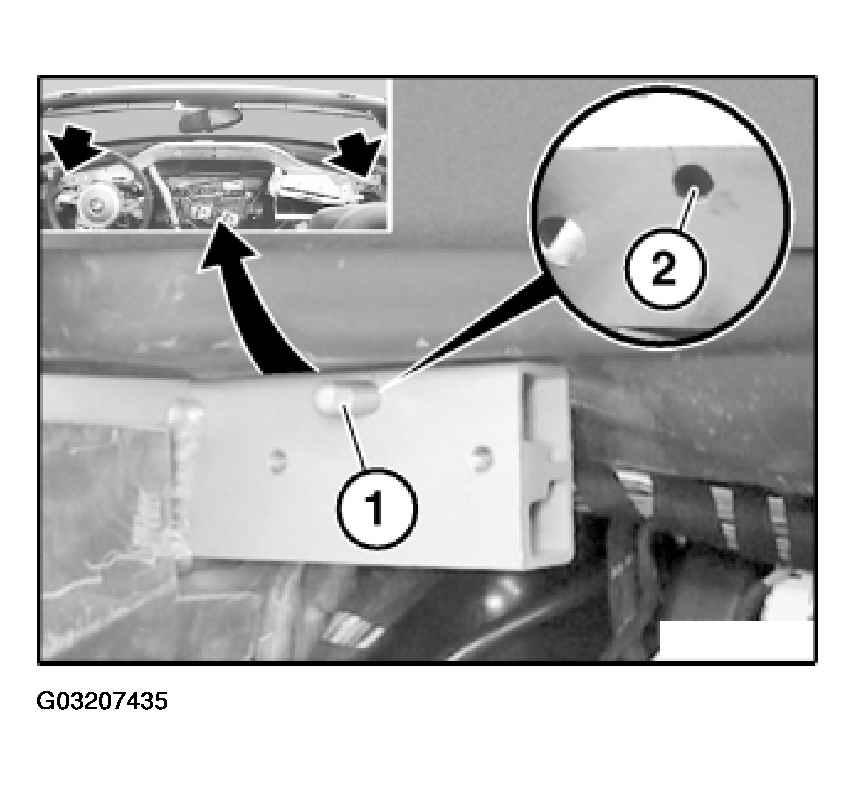

Mounting with guide pin:

Insert guide pin (1) into bore (2).

Fig 18: Inserting Guide Pin

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting without guide pin:

Align instrument panel trim to door trim panel.

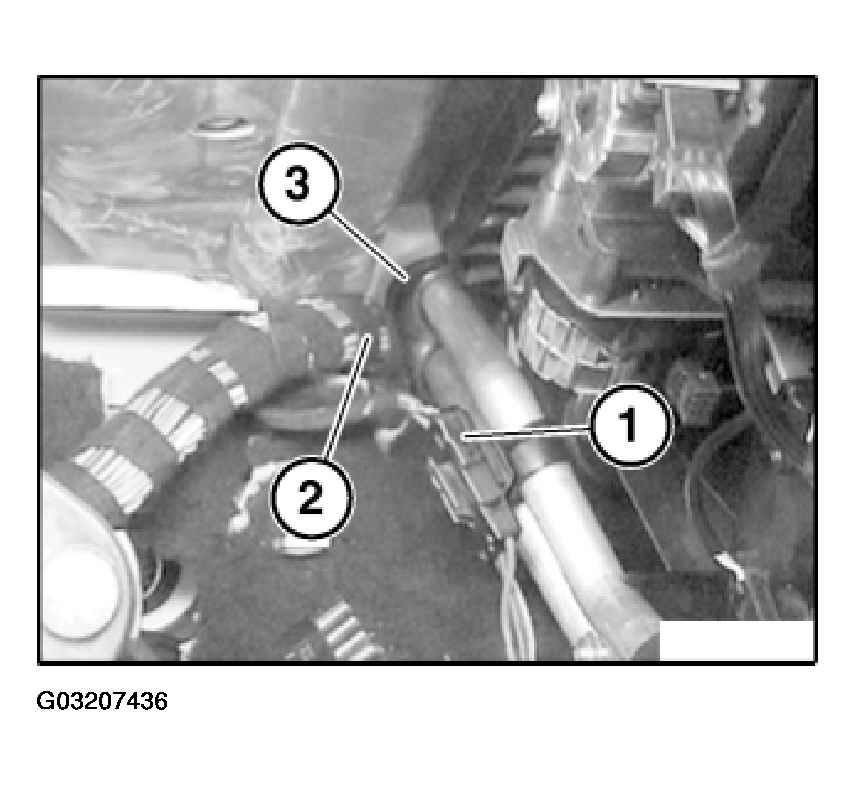

Disconnect plug connection (1).

Fig 19: Checking Grommet

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Do not damage wiring harness (2) when installing heater.

Check that grommet (3) is correctly seated.

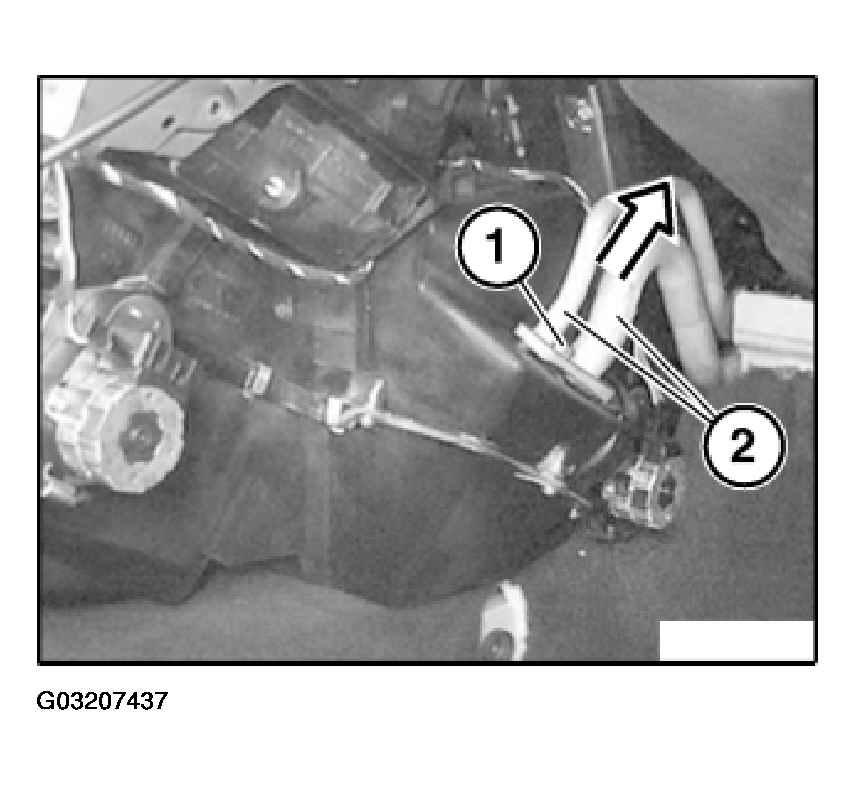

Unscrew bolt (1).

Detach tubes (2) from expansion valve.

Fig 20: Detaching Tubes From Expansion Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace sealing rings.

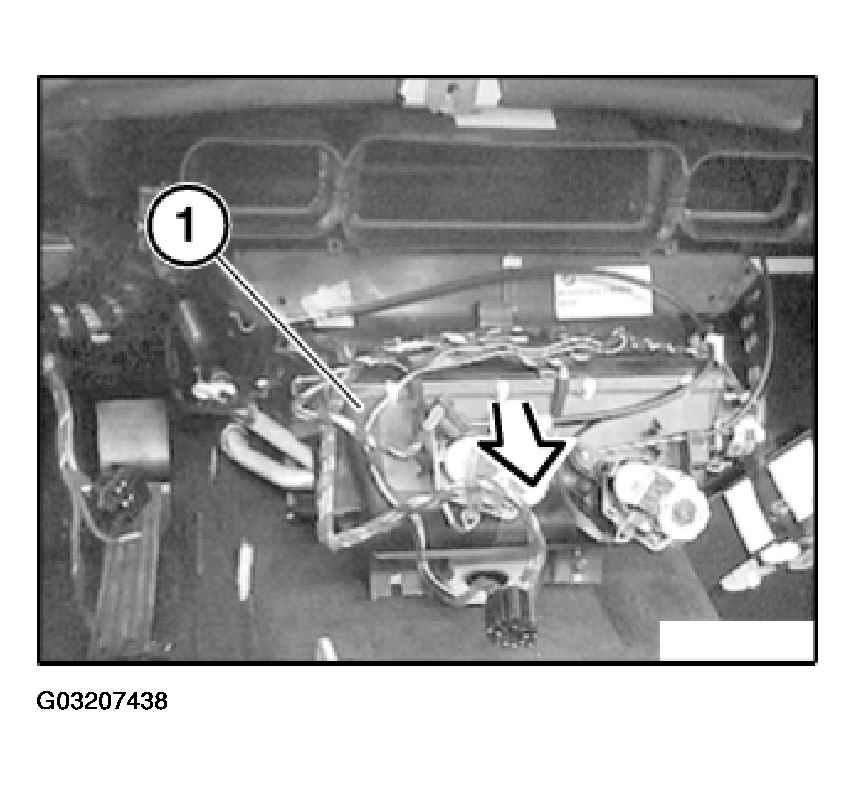

Pull out heater (1) in direction of arrow.

Fig 21: Removing Heater

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

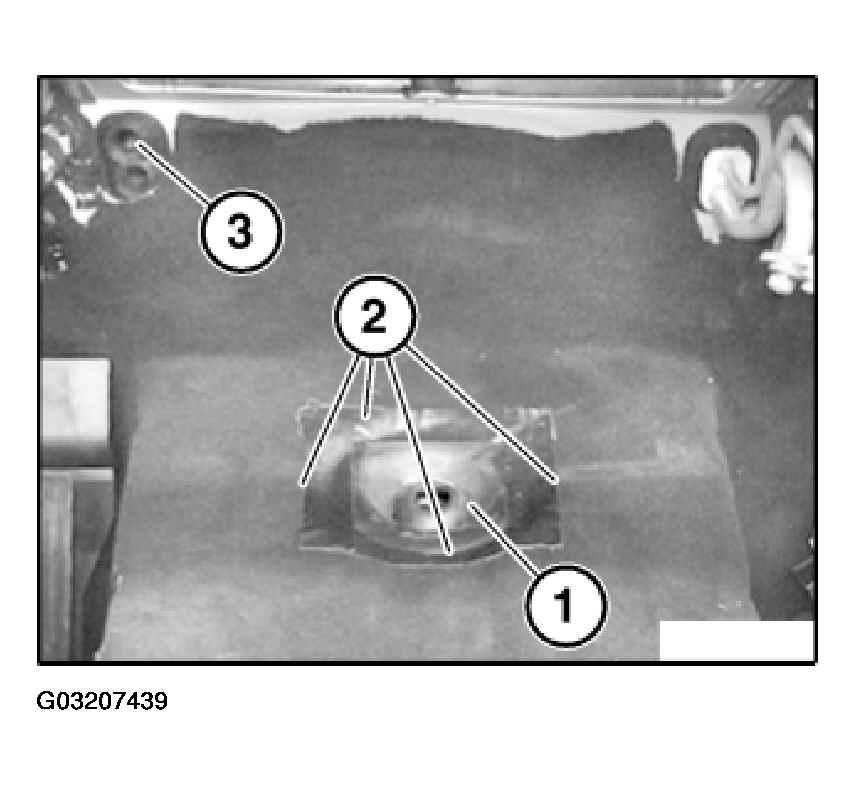

Tape off condensate drain (1) as illustrated with fabric adhesive tape (2) and coat with antiseize agent.

Fig 22: Taping Condensate Drain

Courtesy of BMW OF NORTH AMERICA, INC.

Replace grommet (3) if necessary.

Remove grommet (3), coat with antiseize agent and install from outside after installing heater.

Installation:

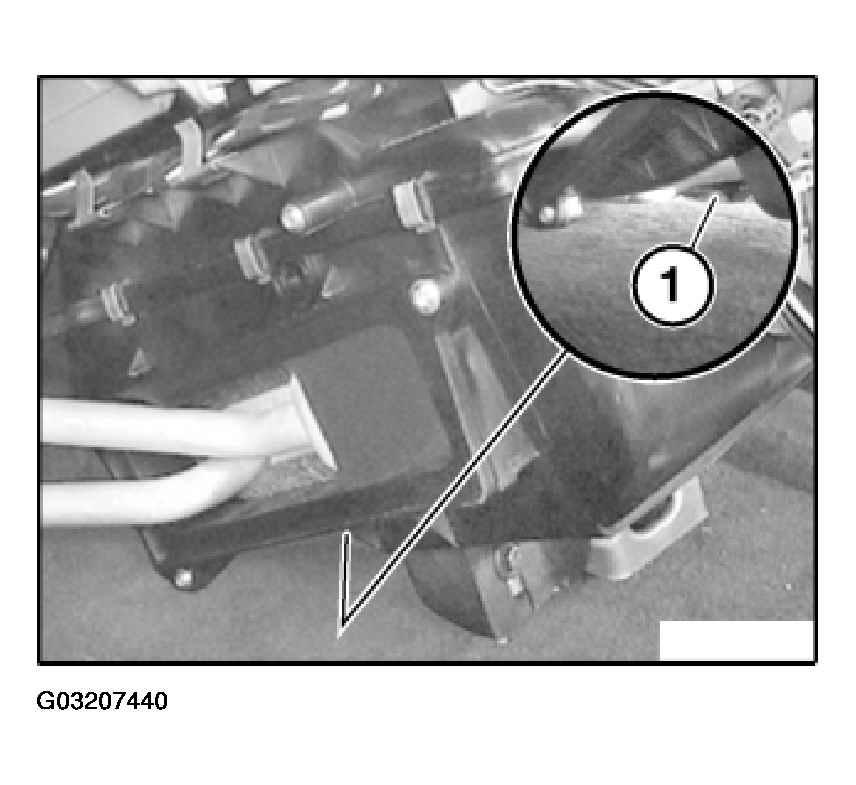

After installing heater, make sure condensate drain (1) is correctly seated.

Fig 23: Checking Condensate Drain Seating

Courtesy of BMW OF NORTH AMERICA, INC.
