51 16 200 Removing and installing center console
WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
- Remove radio receiver. Refer to 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO RECEIVER .
- Remove switch for Dynamic Stability Control. Refer to 61 31 212 REMOVING AND INSTALLING/REPLACING SWITCH FOR AUTOMATIC/DYNAMIC STABILITY CONTROL .
- Remove switch for tire pressure warning. Refer to 61 31 089 REMOVING AND INSTALLING/REPLACING SWITCH FOR TIRE PRESSURE WARNING .
- Remove trim for center console. Refer to 51 16 212 Removing and installing trim for center console .
- Remove center fresh air grill. Refer to 64 22 161 REMOVING AND INSTALLING/REPLACING FRESH AIR GRILL .
Open cover for telephone.

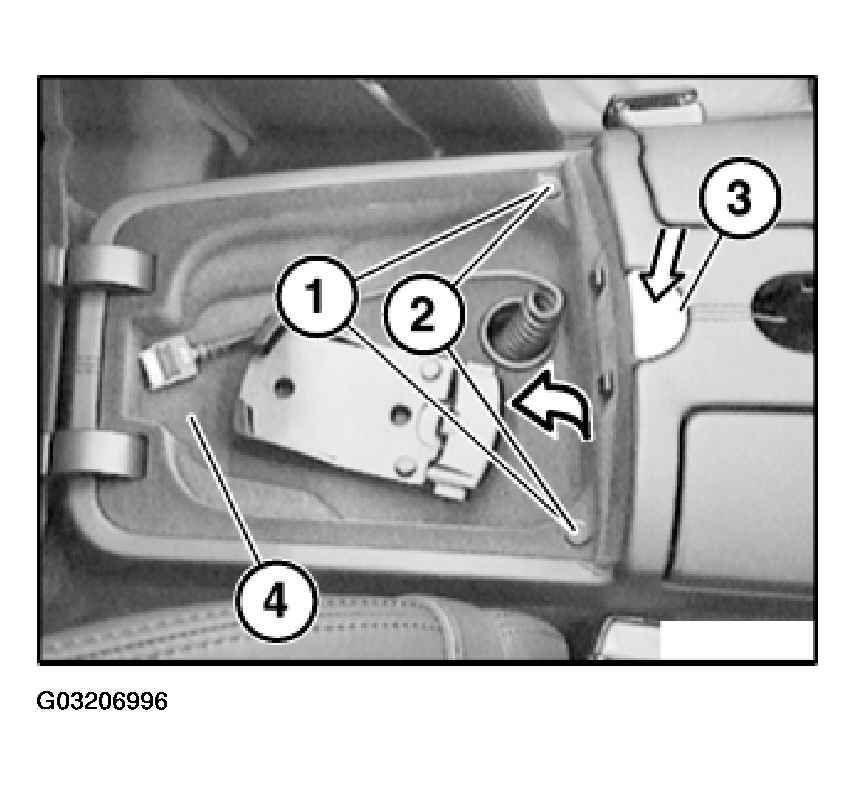

Remove rubber plug (1).
Release screws (2).
Press down release element (3) for cover and lift out storage tray (4).

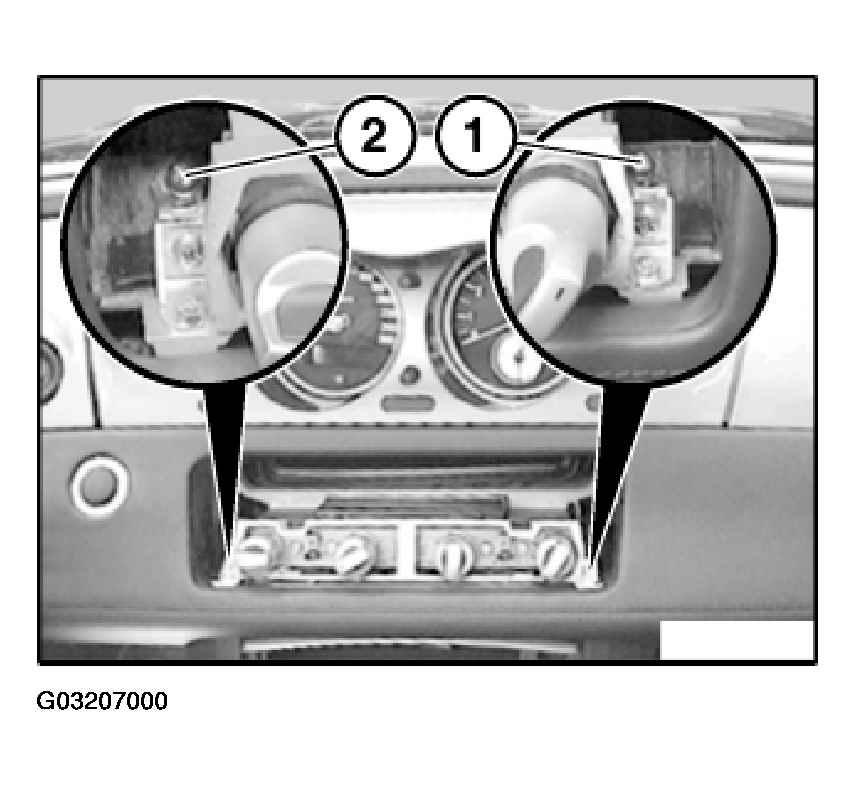

Remove screws (1) and (2).
Release side screws.

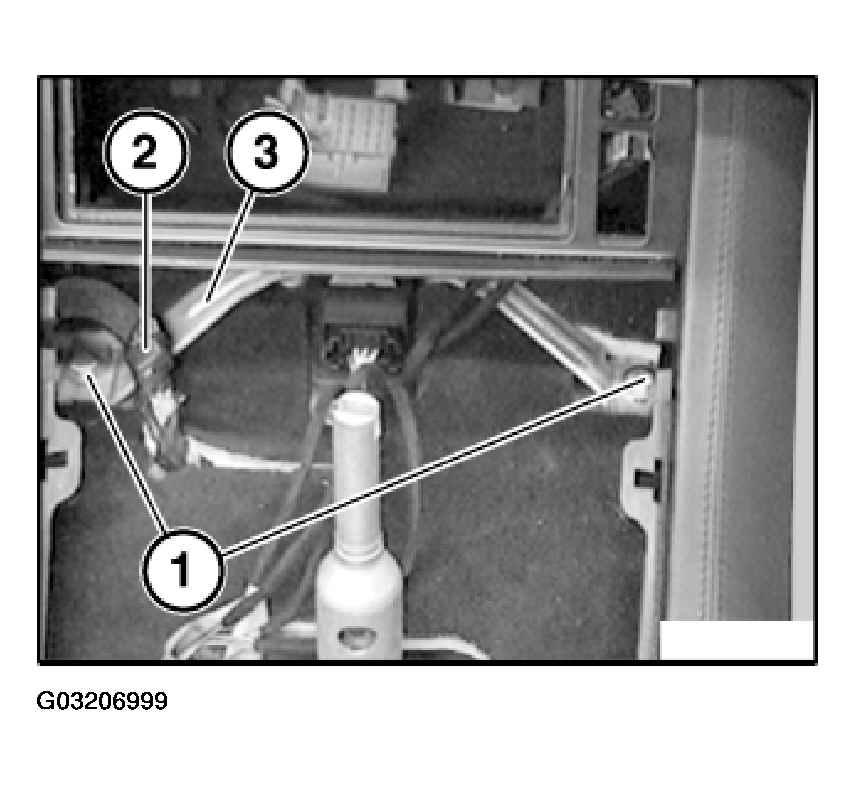

Remove screws (1) on left/right of holder (3) from center console.
Detach wiring harness (2) from holder (3) and expose.

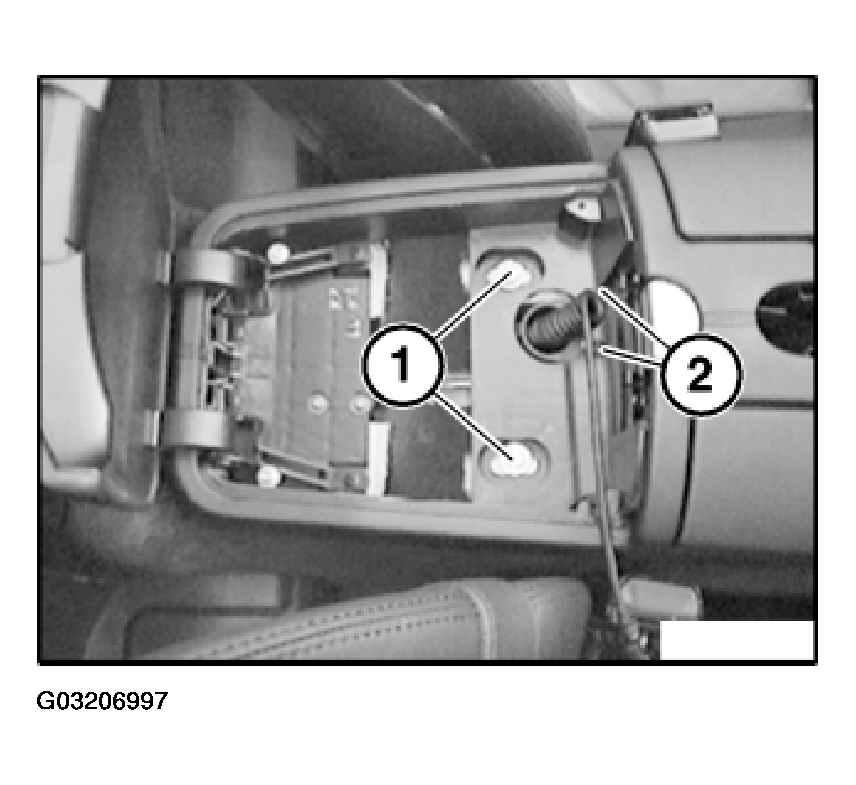

Remove screws (1) and (2).
Close cover for telephone.

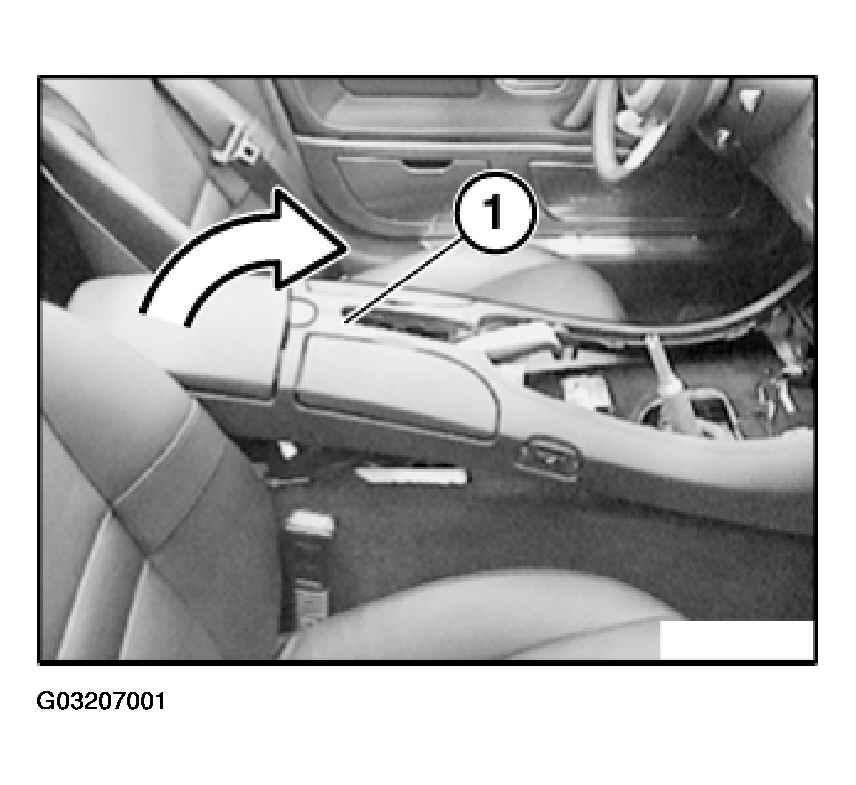

Lift storage tray (1) at rear.
Disconnect all plug connections and remove storage tray.
