51 71 080 Removing and installing/replacing partition wall for equipment compartment on right

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Release screws.

Tightening torque, 12 90 4AZ. Refer to ENGINE ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Remove cover (1) from electronics box.

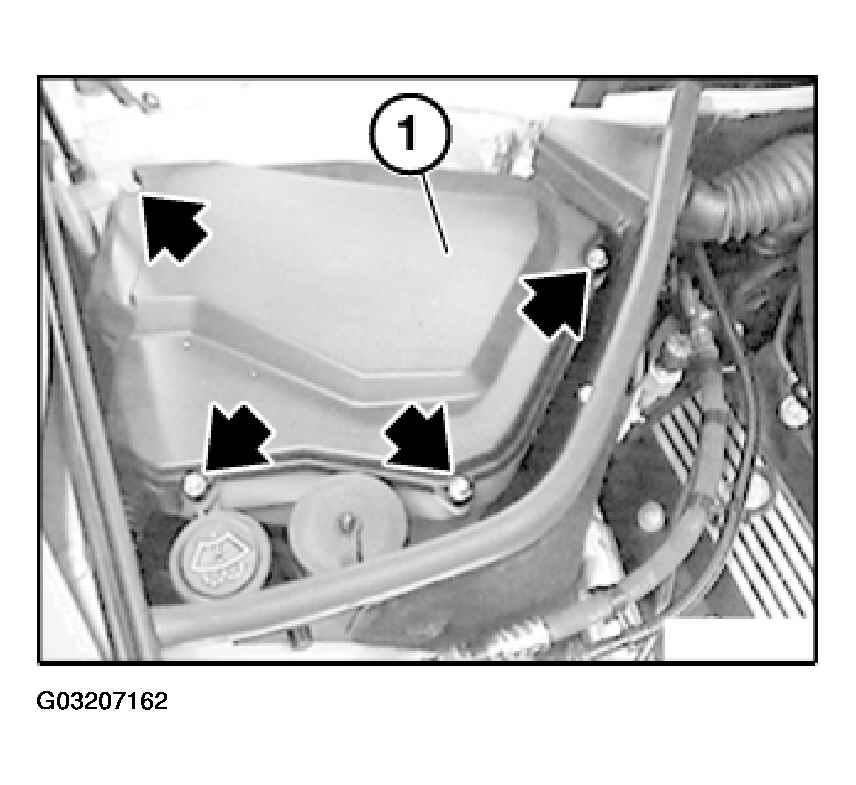

Fig 1: Removing Cover From Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten rubber seal (1).

Pull wiring harness (2) out of partition wall.

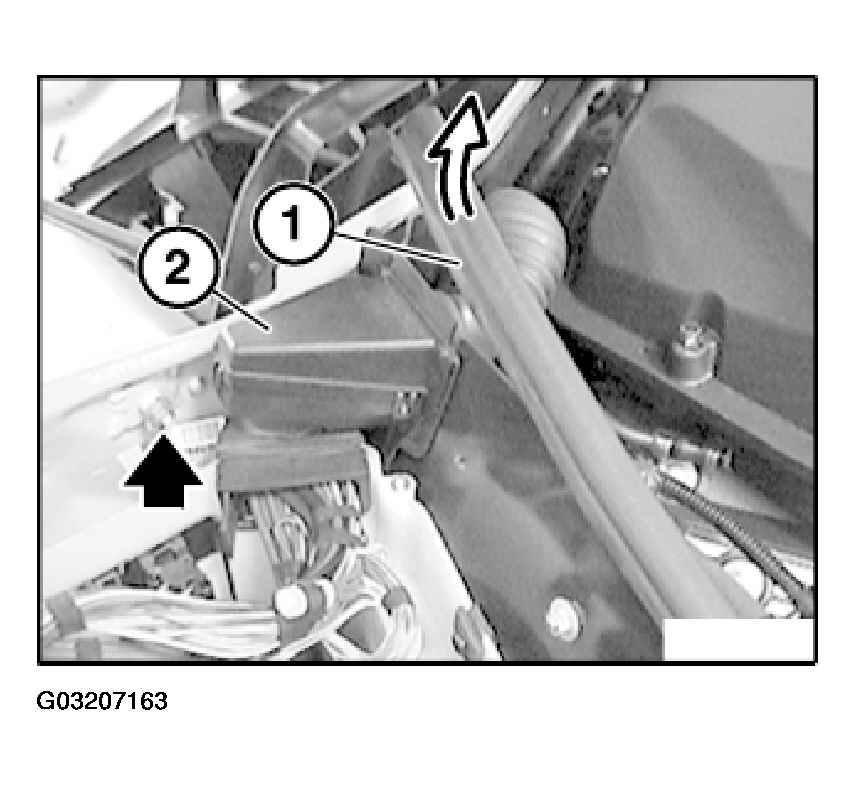

Fig 2: Pulling Wiring Harness Out Of Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw connections.

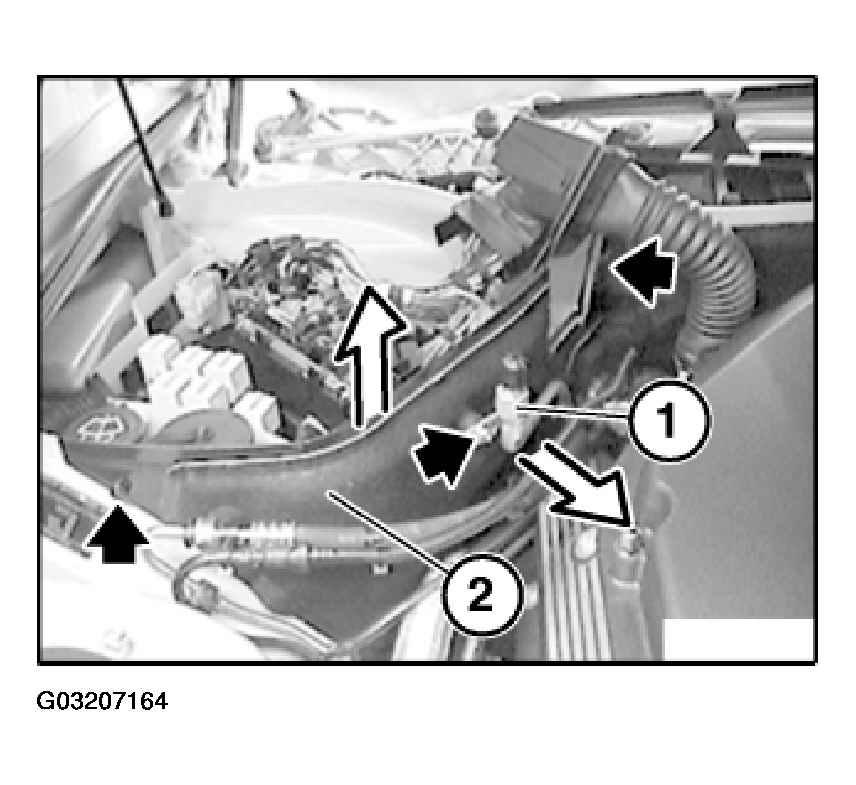

Fig 3: Detaching Refrigerant Line From Partition Wall

Courtesy of BMW OF NORTH AMERICA, INC.

Detach refrigerant line (1) from partition wall.

Lift out partition wall (2).

Installation:

Install lugs (1) of partition wall on rail (2).

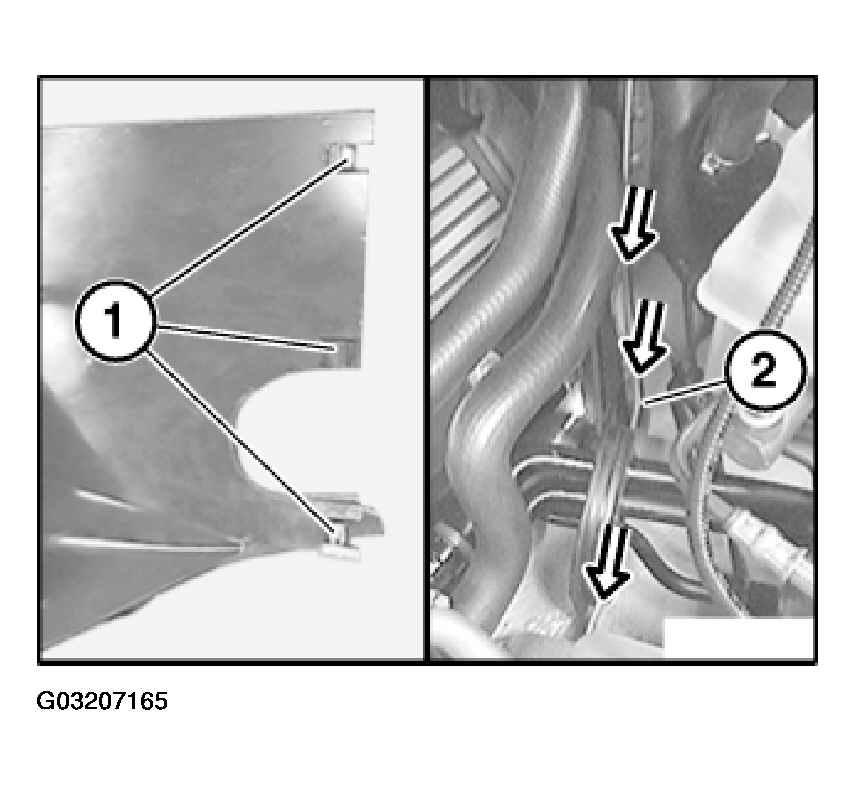

Fig 4: Installing Lugs Of Partition Wall On Rail

Courtesy of BMW OF NORTH AMERICA, INC.
