51 45 050 Removing and installing trim for upper section of instrument panel

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for instrument panel (lower section). Refer to 51 45 030 Removing and installing trim for instrument panel (lower section) .

CAUTION: A second person is required to help remove and install the instrument panel (upper section).

Release screws (1) and (2) on left.

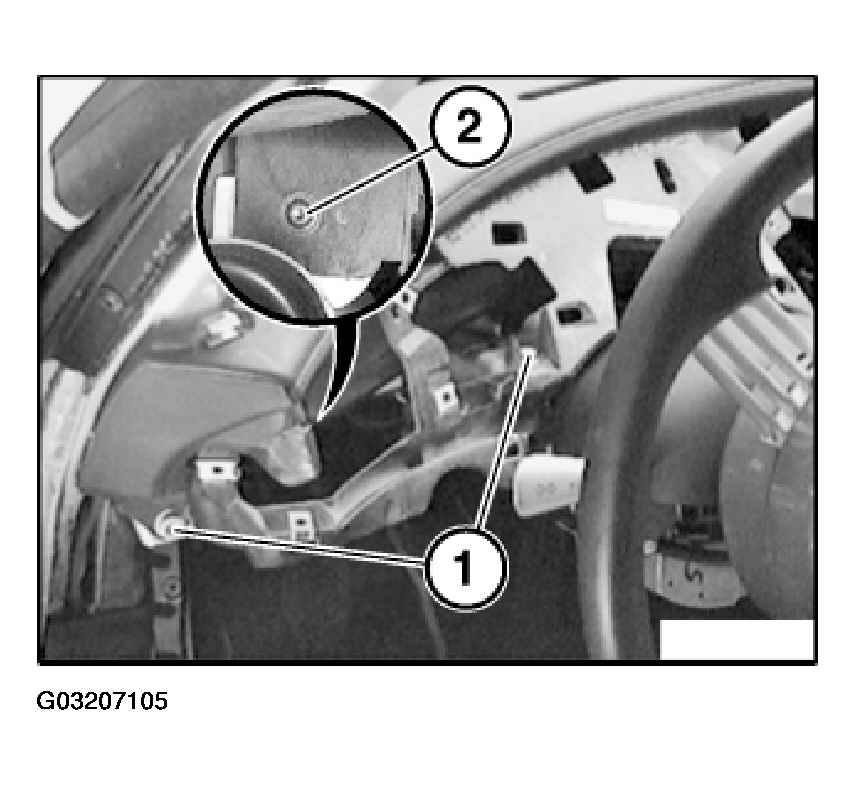

Fig 1: Releasing Screws On Left

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) in middle.

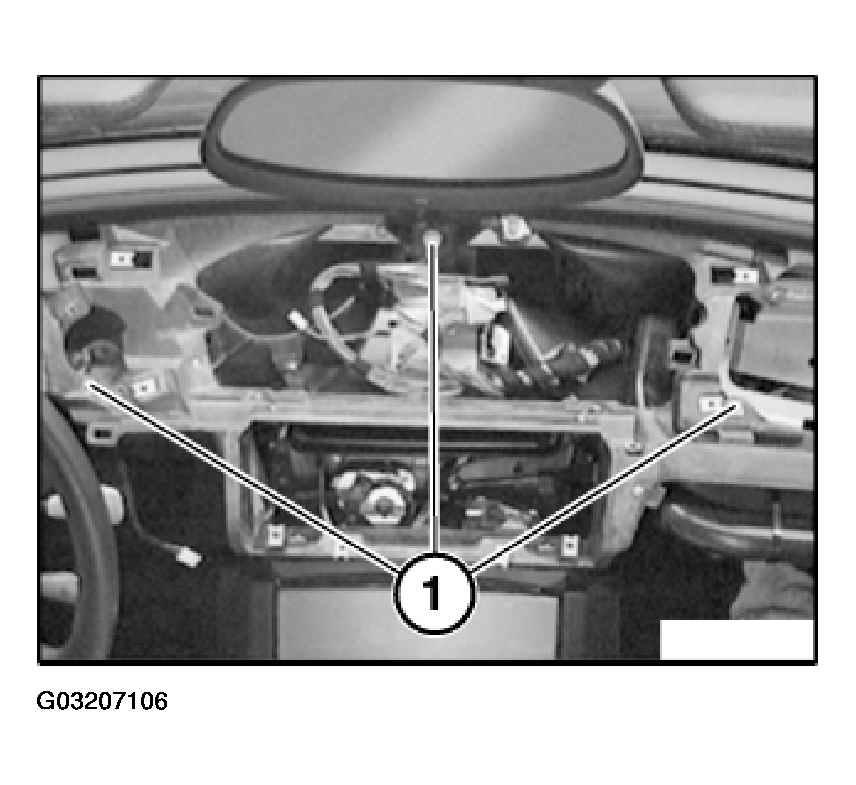

Fig 2: Releasing Screws In Middle

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on right.

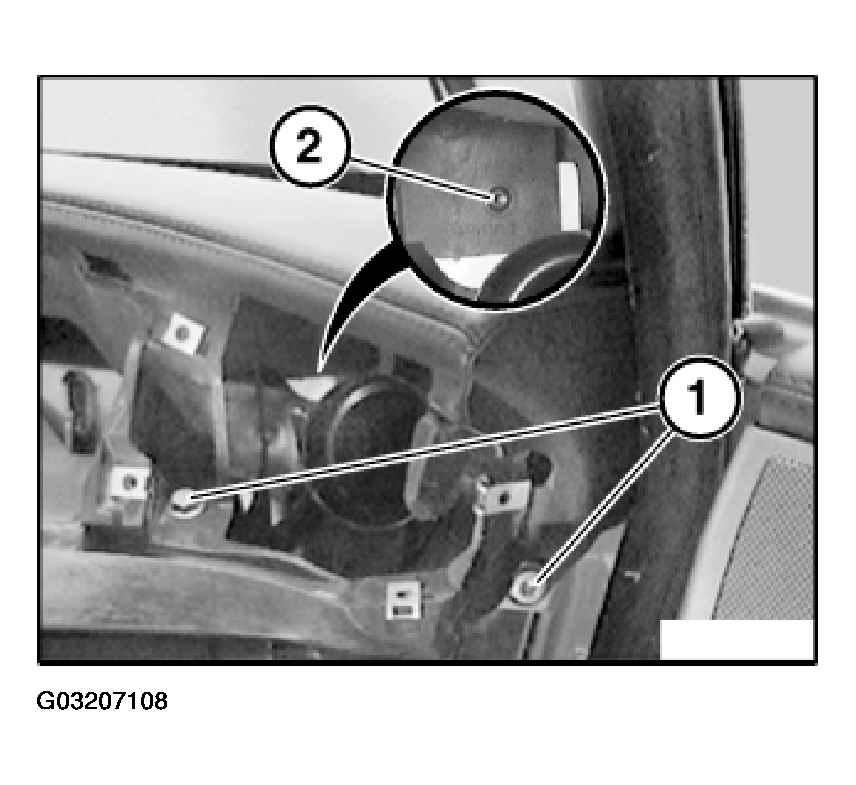

Fig 3: Releasing Screws On Right

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screws (1) and (2).

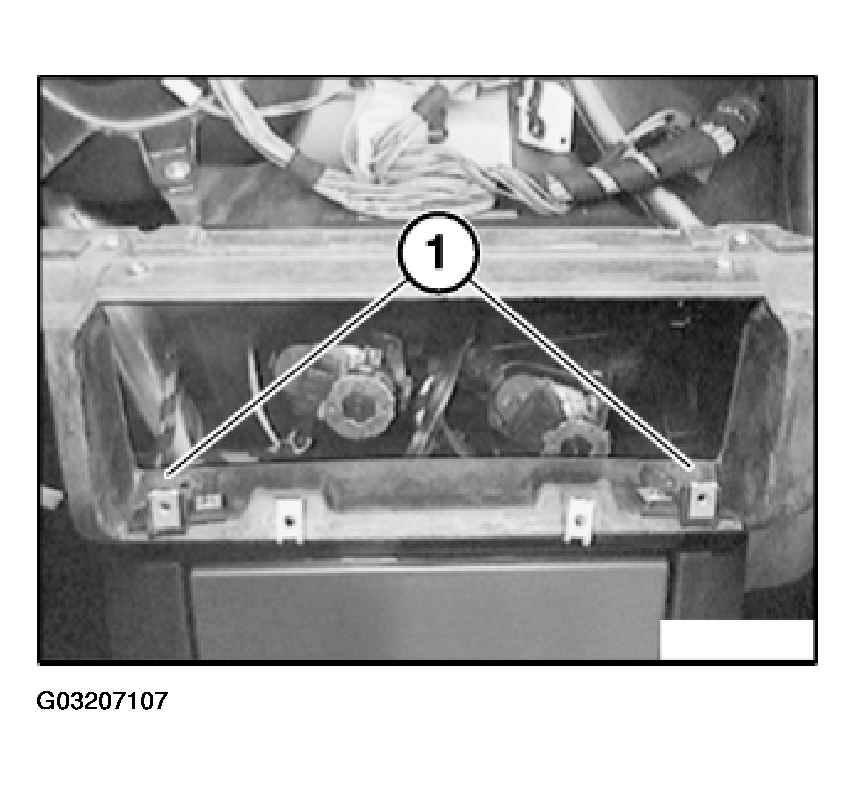

Fig 4: Removing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Partially detach door rubber on A-pillars.

With aid of a second person, lift panel over steering column and remove.
