64 11 820 Replacing servodrive of fresh air flap

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove right glovebox with housing. Refer to 51 16 366 REMOVING AND INSTALLING RIGHT GLOVEBOX WITH HOUSING .

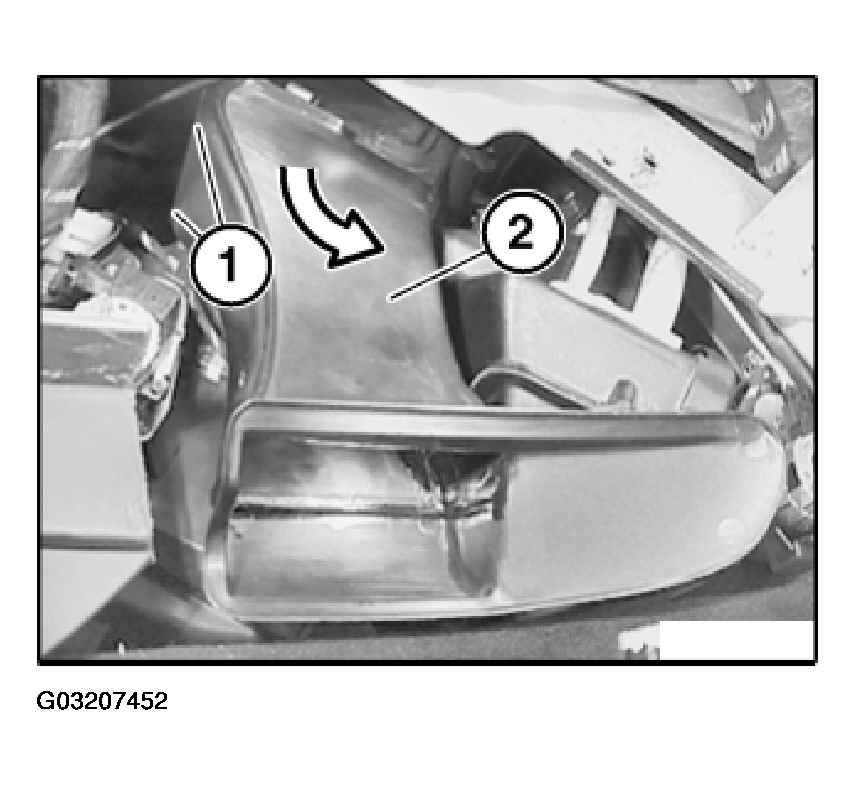

Unclip heating duct for footwell on right (2) at catches (1) and remove in direction of arrow.

Fig 1: Removing Heating Duct

Courtesy of BMW OF NORTH AMERICA, INC.

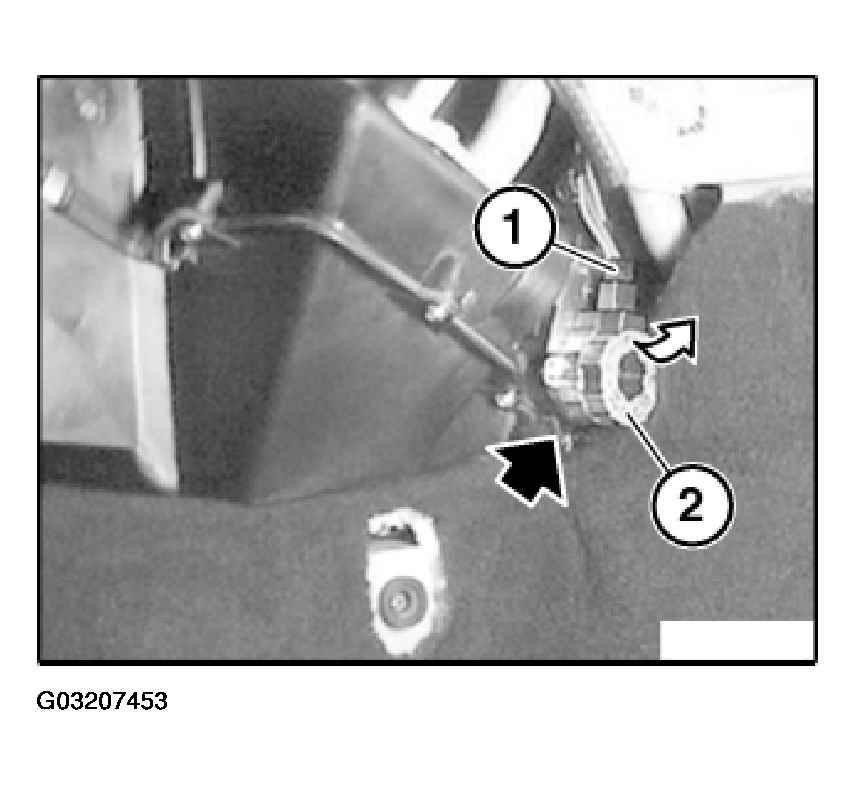

Disconnect plug connection (1).

Unclip servodrive (2) and pull out in direction of arrow.

Fig 2: Removing Servodrive

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

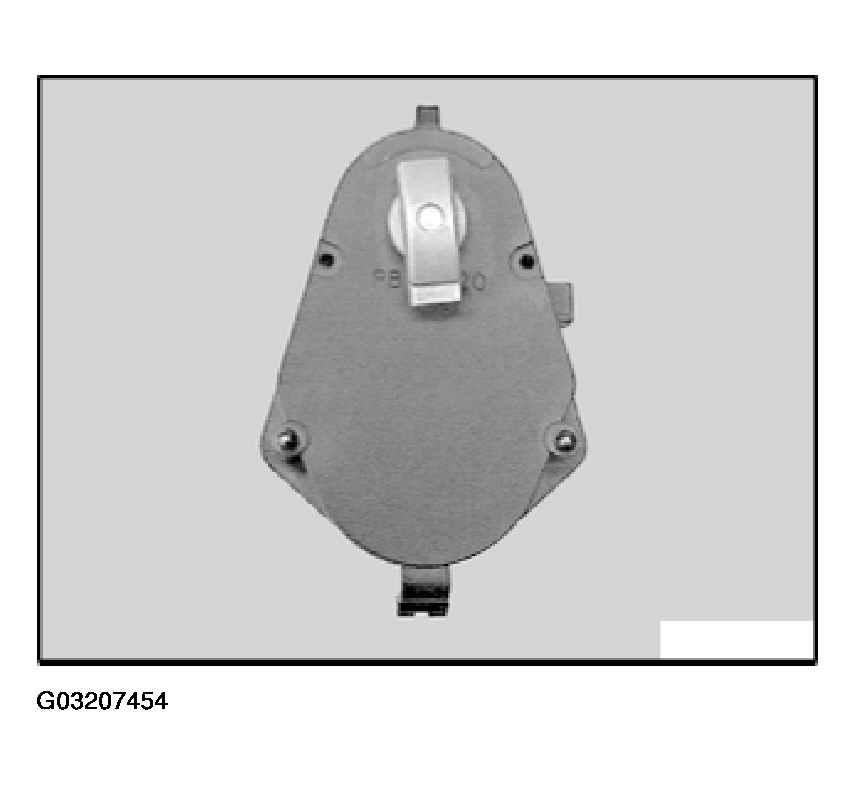

If necessary, align shaft of ventilation flaps to position of servodrive.

Fig 3: Aligning Shaft Of Ventilation flaps

Courtesy of BMW OF NORTH AMERICA, INC.
