17 00 005 Draining and adding coolant (S62)

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of scalding!
Only perform this work after engine has cooled down.

Recycling

Catch and dispose of drained coolant. Observe country-specific waste-disposal regulations.

NOTE: Follow instructions for working on cooling system. Refer to 17 00 Instructions for working on cooling system .

Draining coolant:

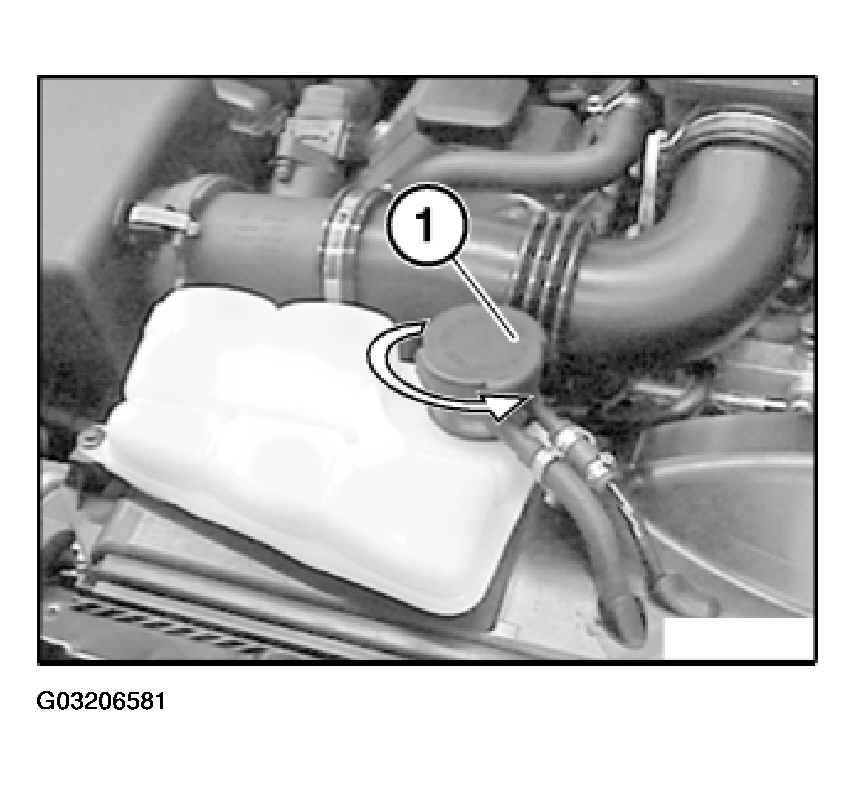

Open cap (1) on coolant expansion tank.

Fig 1: Identifying Cap On Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

Remove underbody protection at front and rear.

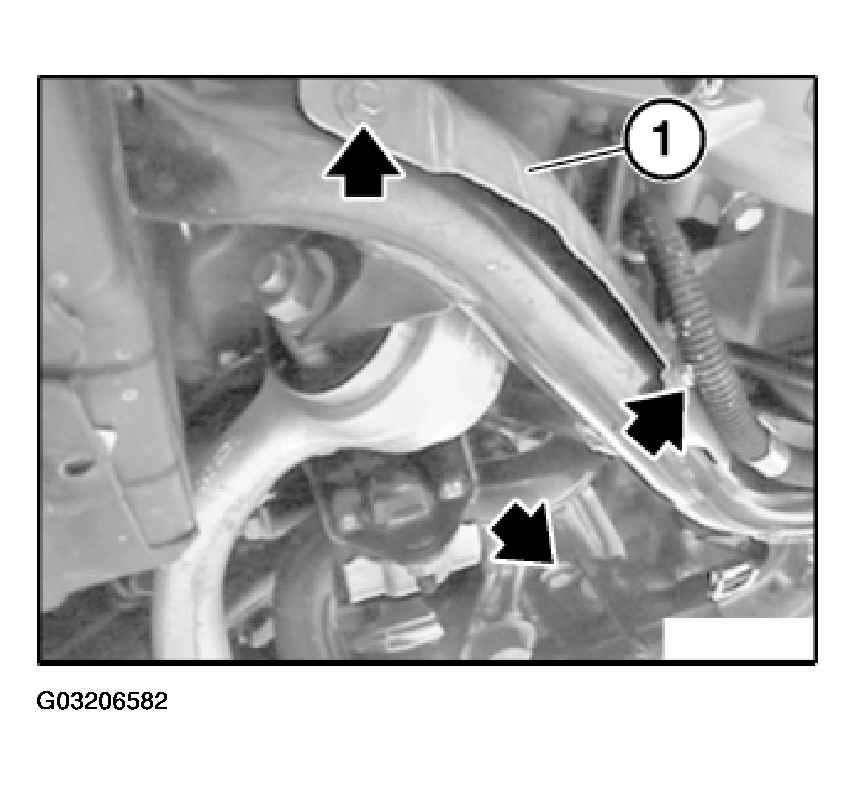

NOTE: Remove heat shield (1) to facilitate access to drain plug on left side of engine block.

Release screws.

Fig 2: Removing Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Remove heat shield (1).

NOTE: The heat shield on the E39 is shown.

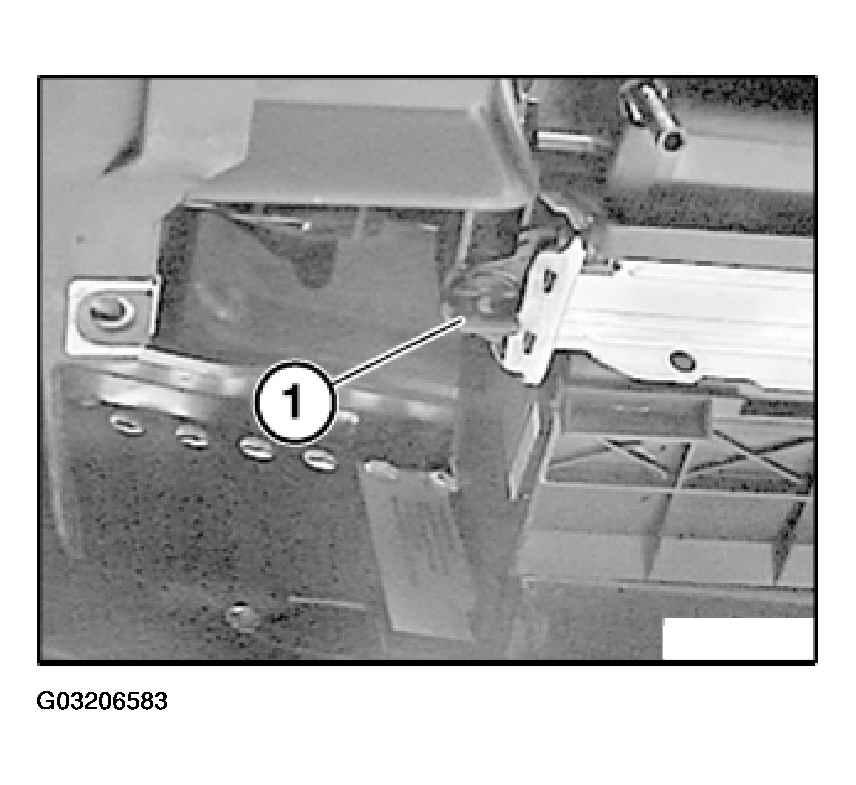

Open drain plug (1) at bottom of radiator.

Fig 3: Identifying Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal.

Drain, catch and dispose of coolant.

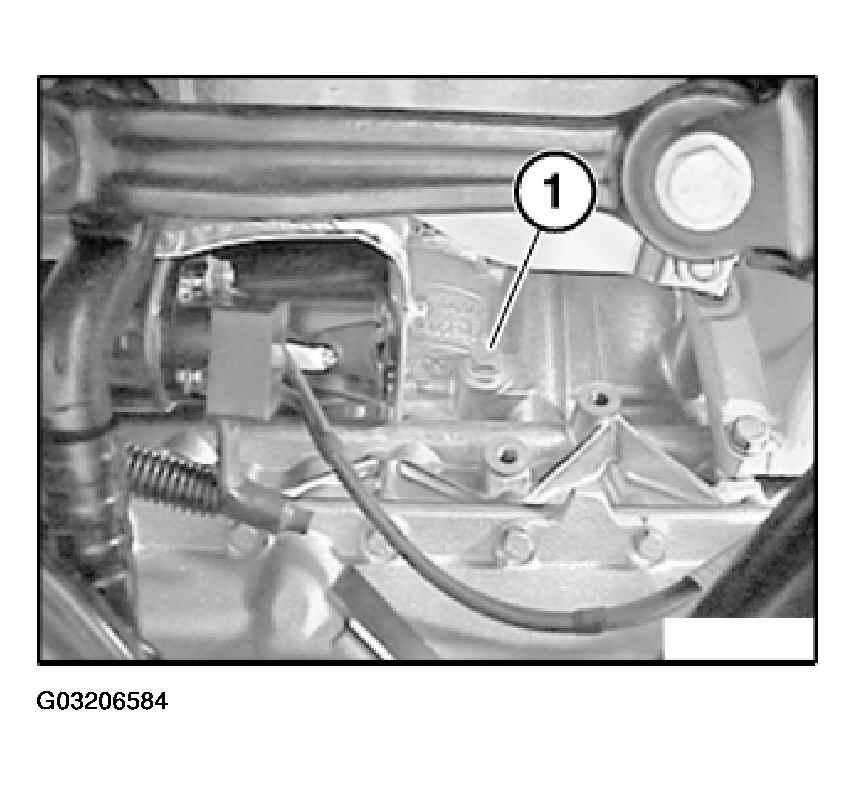

Open drain plug (1) on left and right sides of engine block.

Fig 4: Identifying Drain Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace seal.

Tightening torque, 11 11 5AZ. Refer to ENGINE - TIGHTENING TORQUES .

Drain, catch and dispose of coolant.

Adding coolant:

NOTE: Slowly fill coolant expansion tank with coolant.

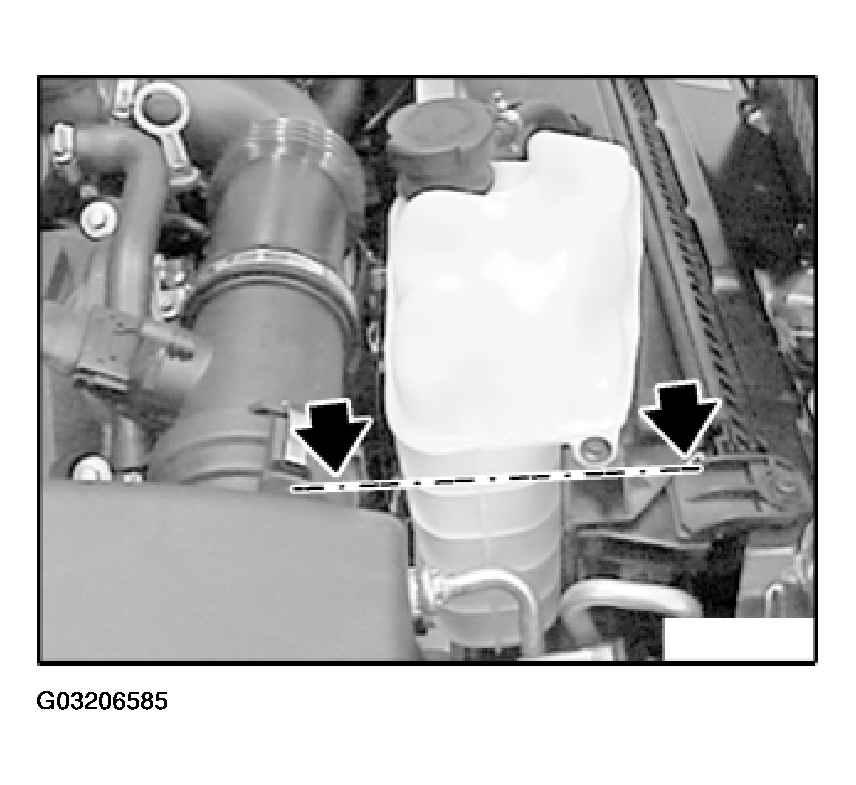

Pour coolant into coolant expansion tank to a level of approx. 5 mm above max. cold fill level.

Fig 5: Identifying Coolant Expansion Tank

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The tank mark indicates the fluid level at approx. 20°C.

Use only recommended coolant.

Vent cooling system and check for leaks. Refer to 17 00 039 Venting cooling system and checking for water leaks (S62) .
