51 12 001 Replacing rear bumper

WARNING: This page is about a different car, the 2003 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Replacing rear bumper center section (carrier) (51 12 011):

Remove complete rear bumper. Refer to 51 12 000 Removing and installing complete rear bumper .

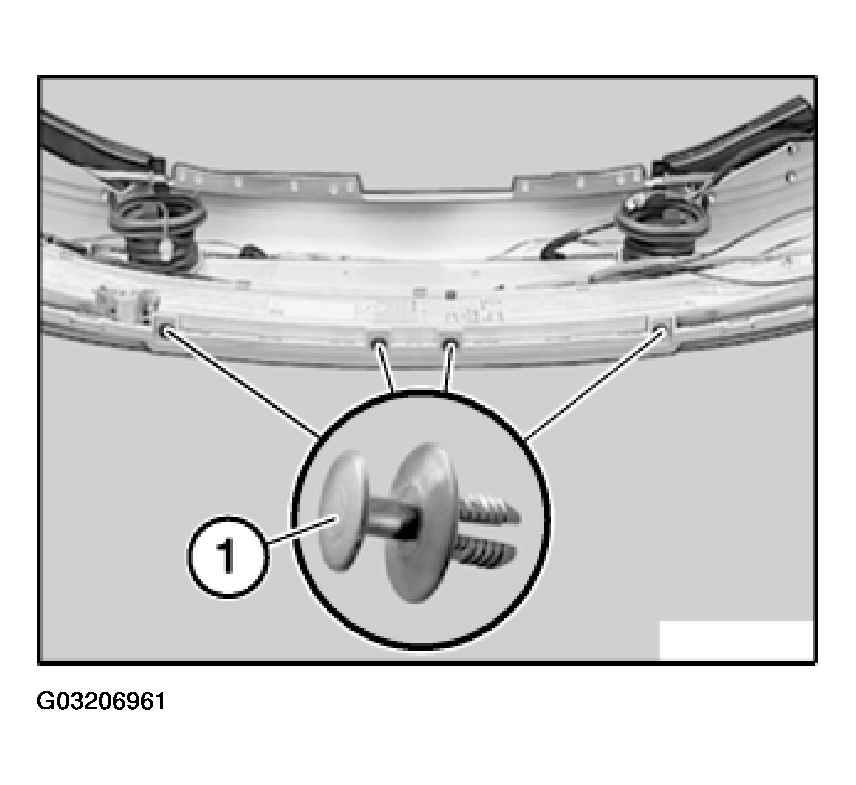

Release expansion rivets (1).

Fig 1: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

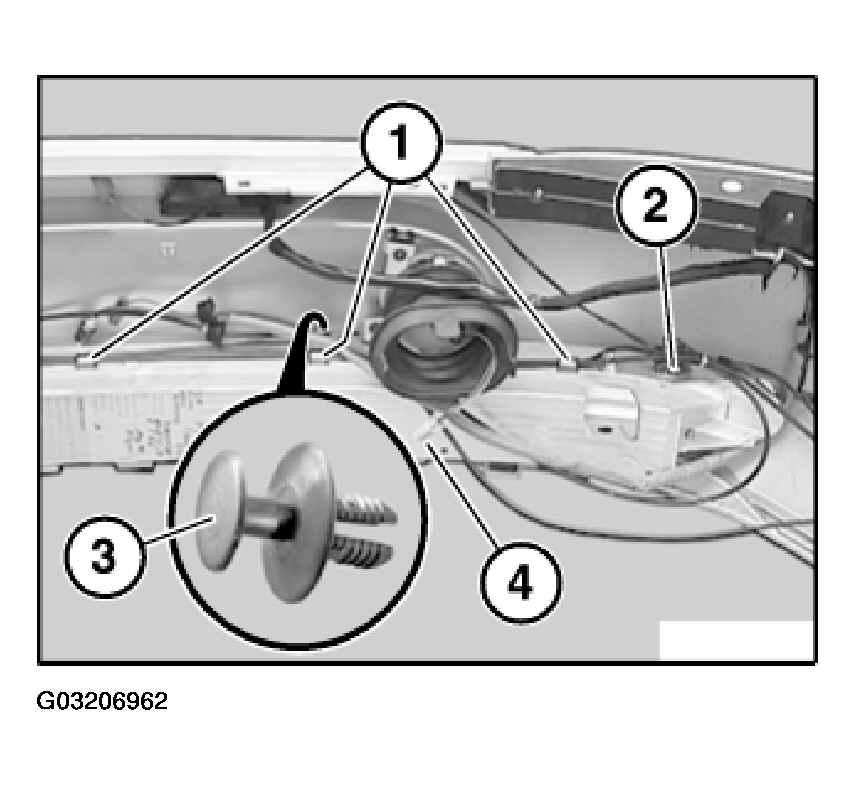

Lever cable out of retainers (1) on left/right.

Fig 2: Removing Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen left/right screw (2).

Release expansion rivets (3) and remove center section of bumper (4).

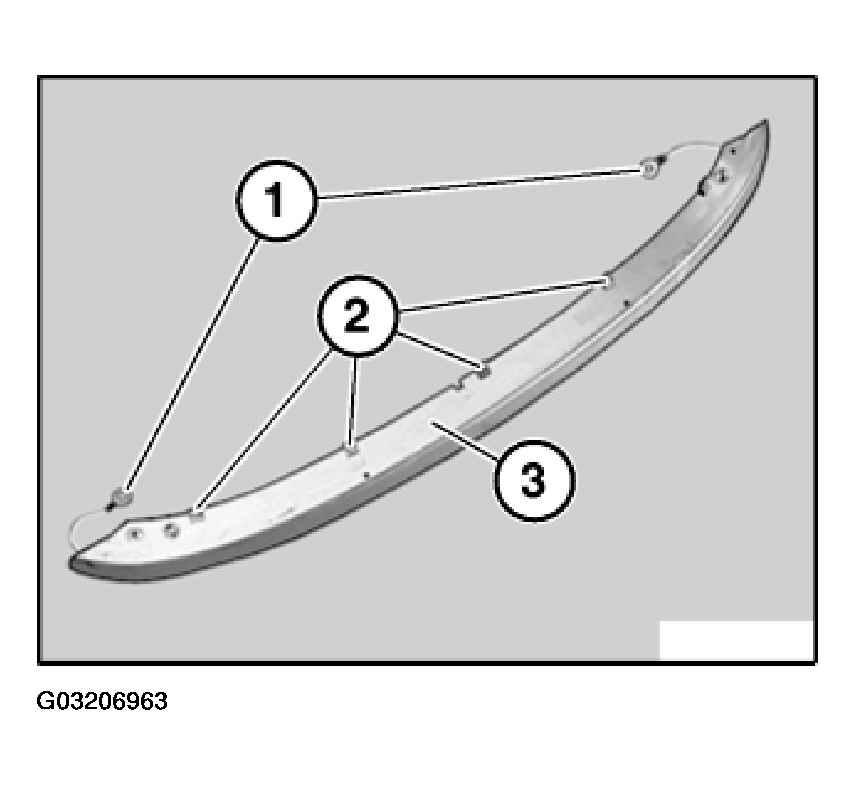

Release screws and remove cable (1).

Detach retainers (2) from center section of bumper (3).

Fig 3: Detaching Retainers From Center Section Of Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The work for "Replacing rear bumper center section (carrier) (51 12 011)" ends here.

Replacing rear bumper trim (51 12 157) and replacing rear bumper (51 12 001):

Remove both rear lights. Refer to 63 21 180 REMOVING AND INSTALLING/REPLACING LEFT OR RIGHT TAIL LIGHT .

Remove rear fog light. Refer to 63 21 ... REMOVING AND INSTALLING/REPLACING LEFT REAR FOG LIGHT .

Remove reversing light. Refer to 63 21 ... REMOVING AND INSTALLING/REPLACING LEFT REAR FOG LIGHT .

Remove reflecting tail light from rear bumper. Refer to 63 14 120 REMOVING AND INSTALLING/REPLACING REFLECTING TAIL LIGHT ON REAR BUMPER .

Remove antenna (radio). Refer to 65 24 100 REMOVING AND INSTALLING/REPLACING ANTENNA (RADIO) .

Remove telephone antenna. Refer to 84 50 010 REMOVING AND INSTALLING/REPLACING TELEPHONE ANTENNA .
