63 14 120 Removing and installing/replacing reflecting tail light on rear bumper

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 321

Left side:

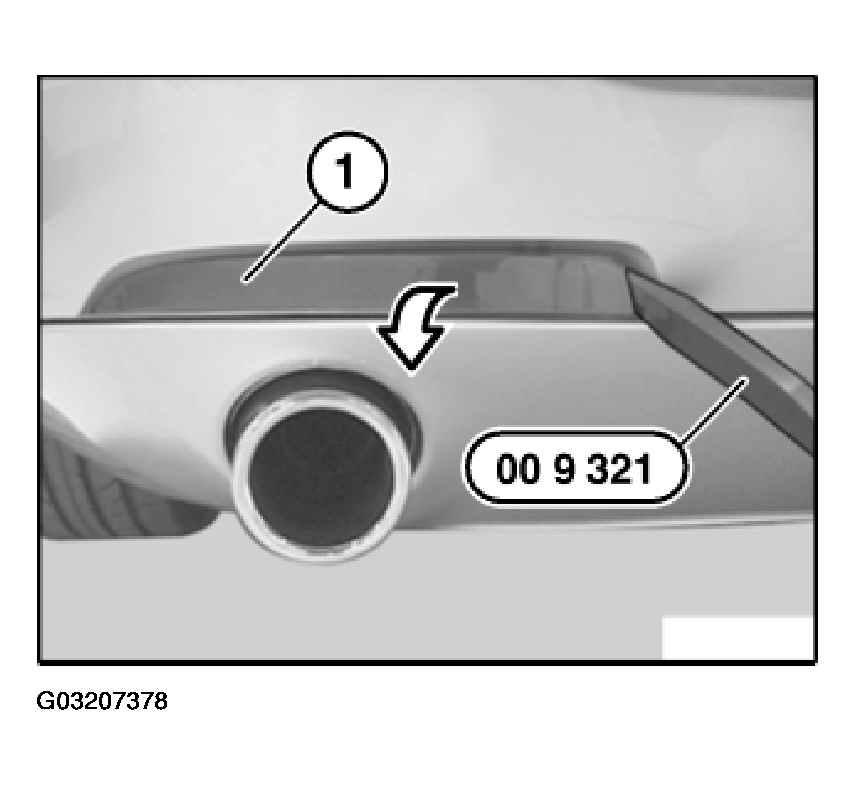

Lever out reflecting tail light (1) with special tool 00 9 321 (fishbone) and remove.

Fig 1: Removing Reflecting Tail Light

G03207378

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

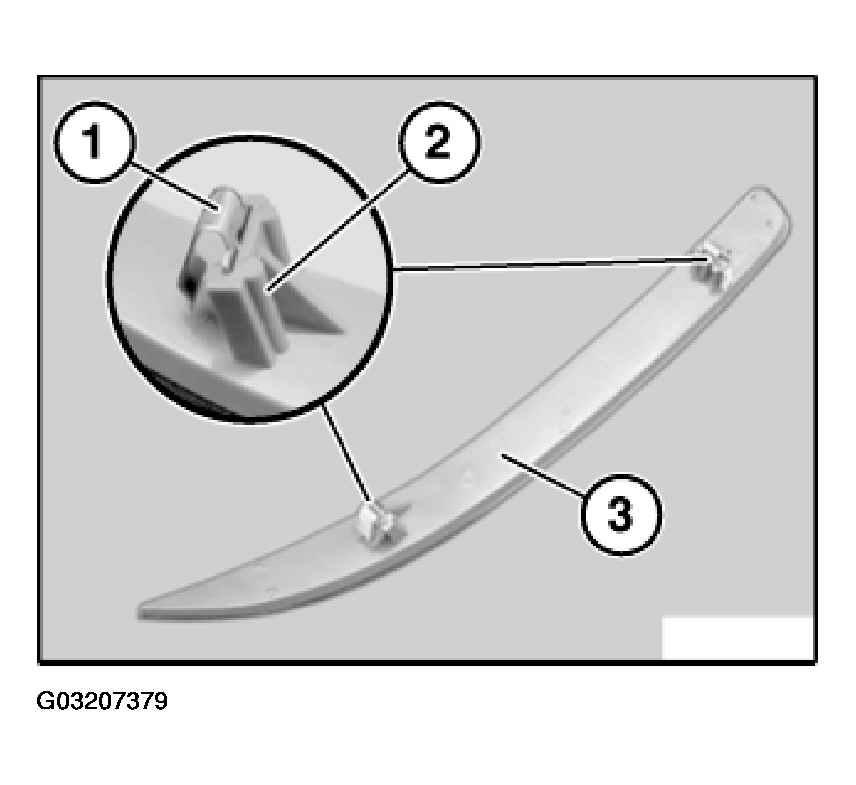

Springs (1) and mounts (2) on reflecting tail light (3) must not be damaged.

Fig 2: Installing Springs And Mounts On Reflecting Tail Light

G03207379

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

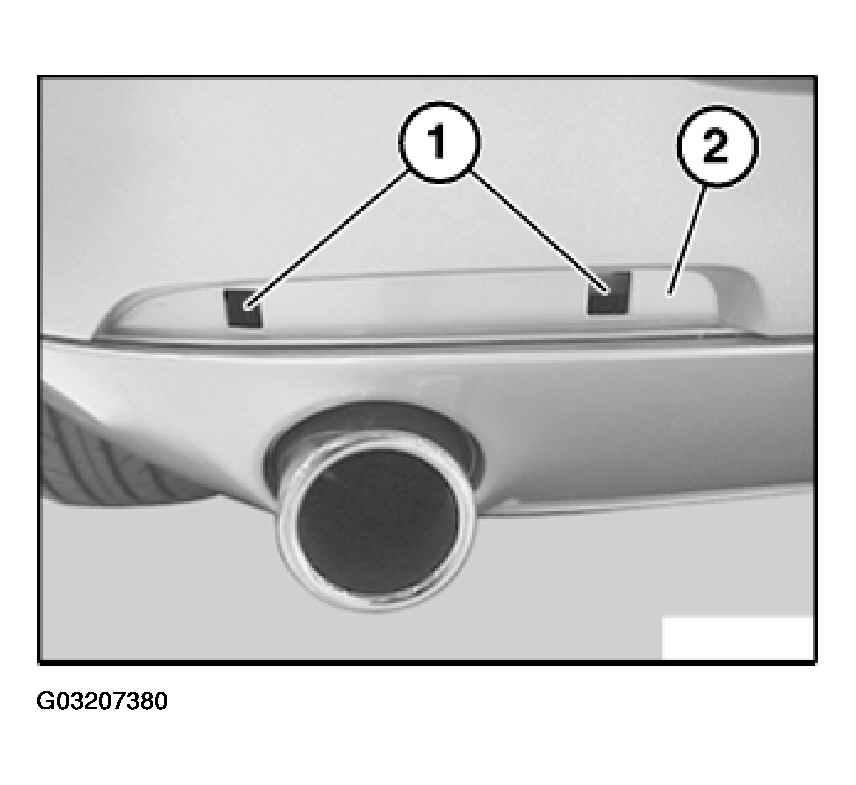

Fixtures (1) in bumper (2) must not be damaged.

Fig 3: Installing Fixtures In Bumper

G03207380

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

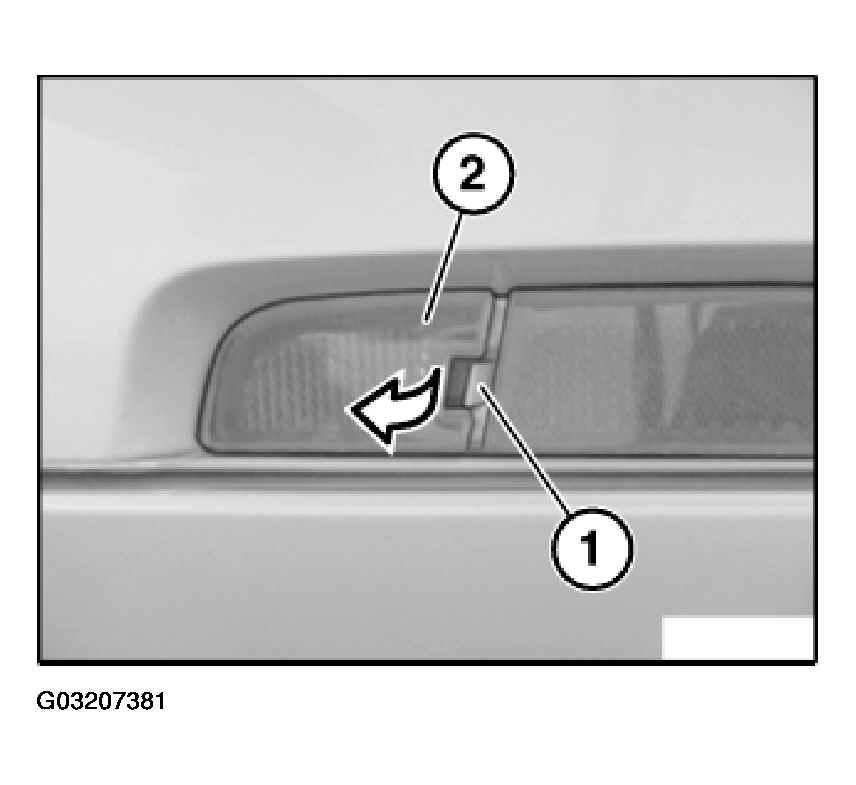

Lever out lock (1) and remove reflecting tail light (2).

Fig 4: Removing Reflecting Tail Light

G03207381

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

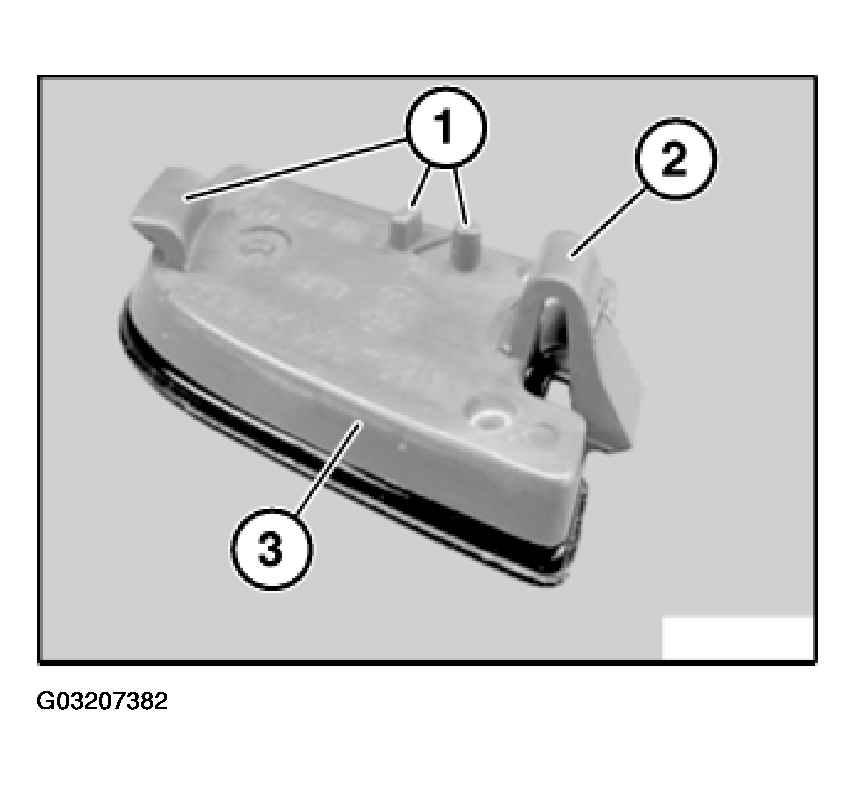

Guides (1) and lock (2) on reflecting tail light (3) must not be damaged.

Fig 5: Installing Guides And Lock On Reflecting Tail Light

G03207382

Courtesy of BMW OF NORTH AMERICA, INC.

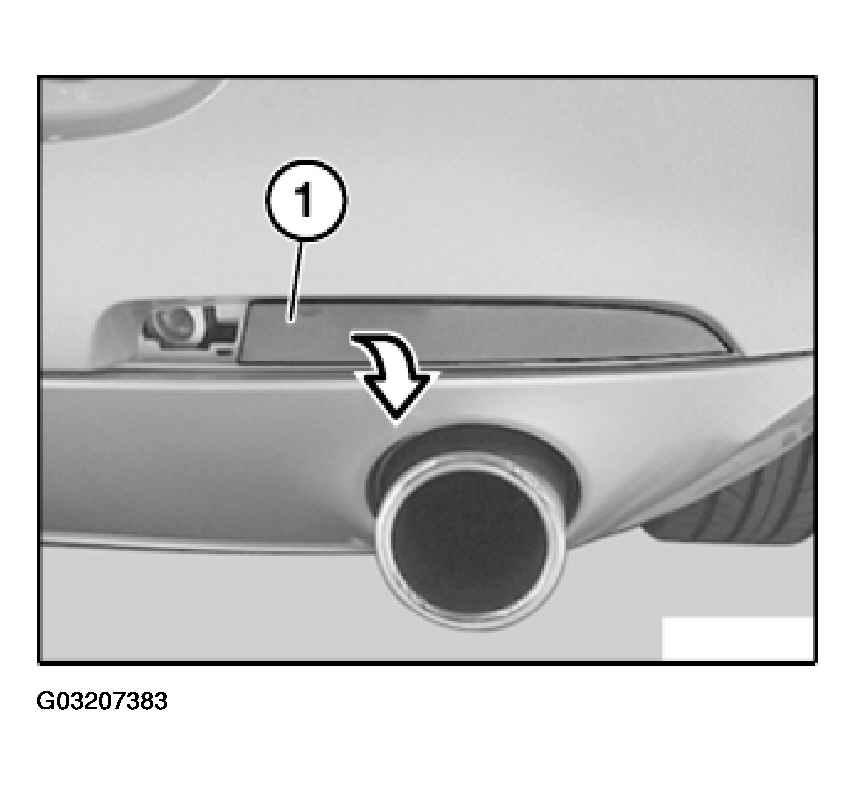

Lever out and remove reflecting tail light (1).

Fig 6: Removing Reflecting Tail Light

G03207383

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

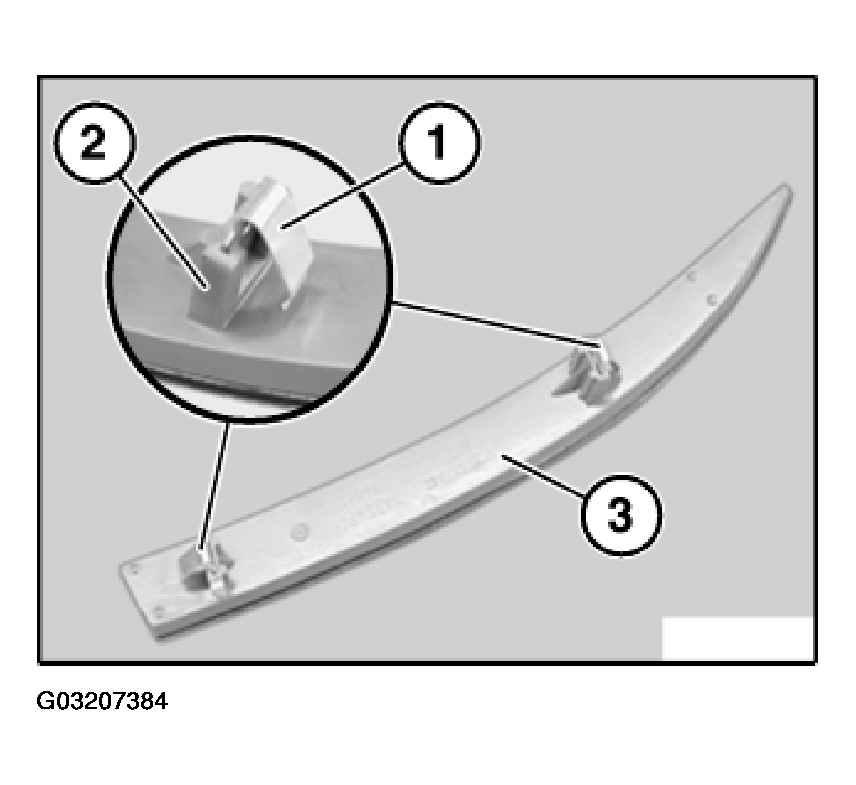

Springs (1) and mounts (2) on reflecting tail light (3) must not be damaged.

Fig 7: Identifying Springs And Mounts On Reflecting Tail Light

G03207384

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

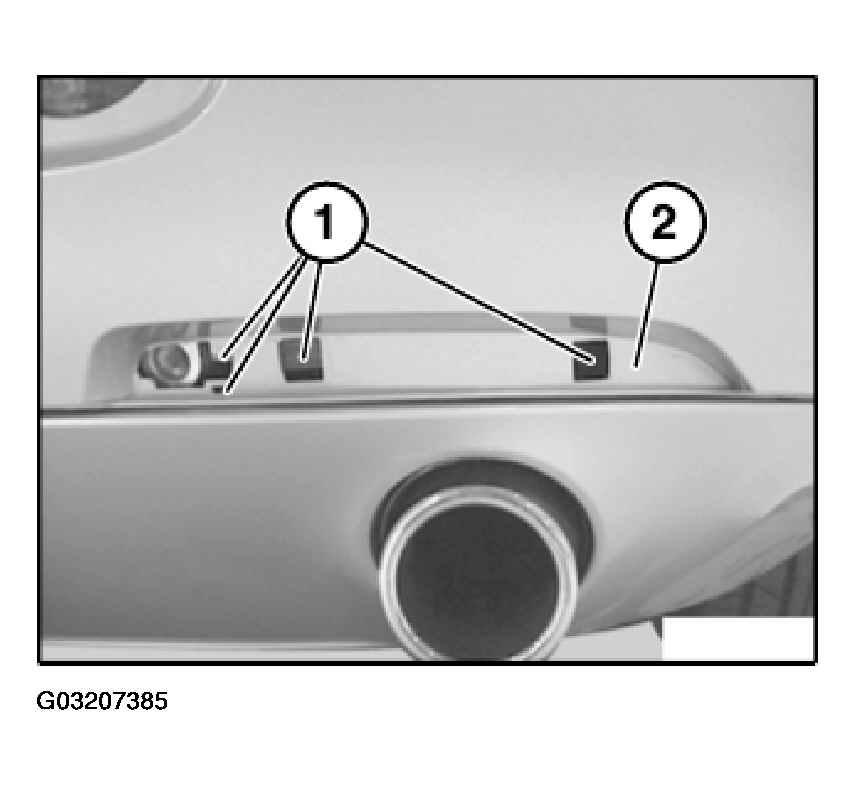

Fixtures (1) in bumper (2) must not be damaged.

Fig 8: Identifying Fixtures In Bumper

G03207385

Courtesy of BMW OF NORTH AMERICA, INC.
