63 21 ... Removing and installing/replacing left rear fog light

WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove complete rear bumper. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

Loosen screws (1).

Remove rear fog light (2).

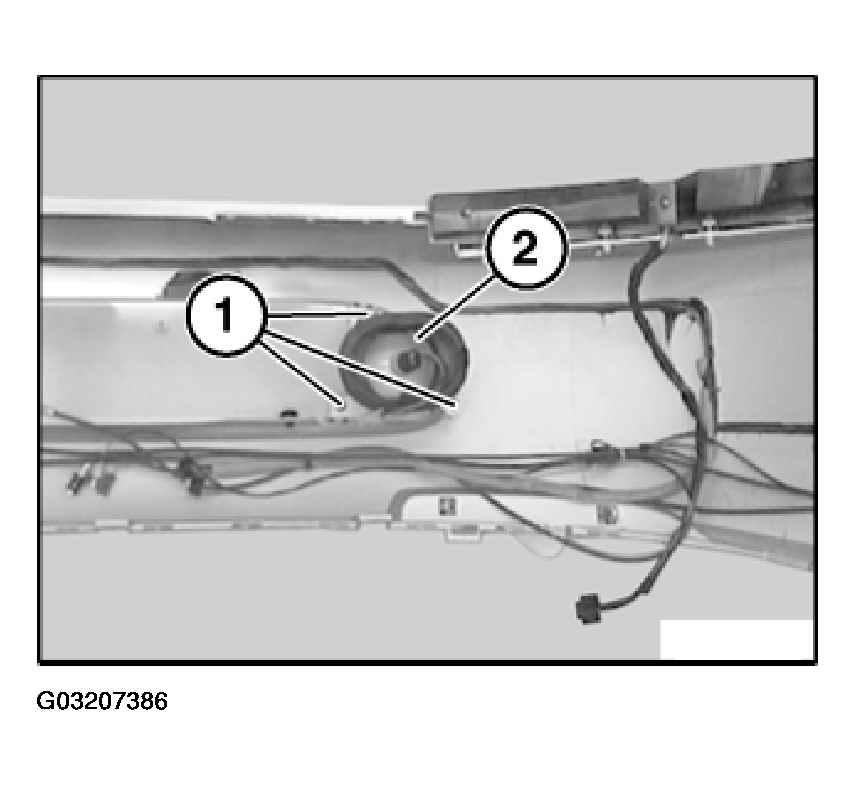

Fig 1: Removing Rear Fog Light
G03207386Courtesy of BMW OF NORTH AMERICA, INC.
