84 50 010 Removing and installing/replacing telephone antenna
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
Remove complete rear bumper. Refer to 51 12 000 REMOVING AND INSTALLING COMPLETE REAR BUMPER .

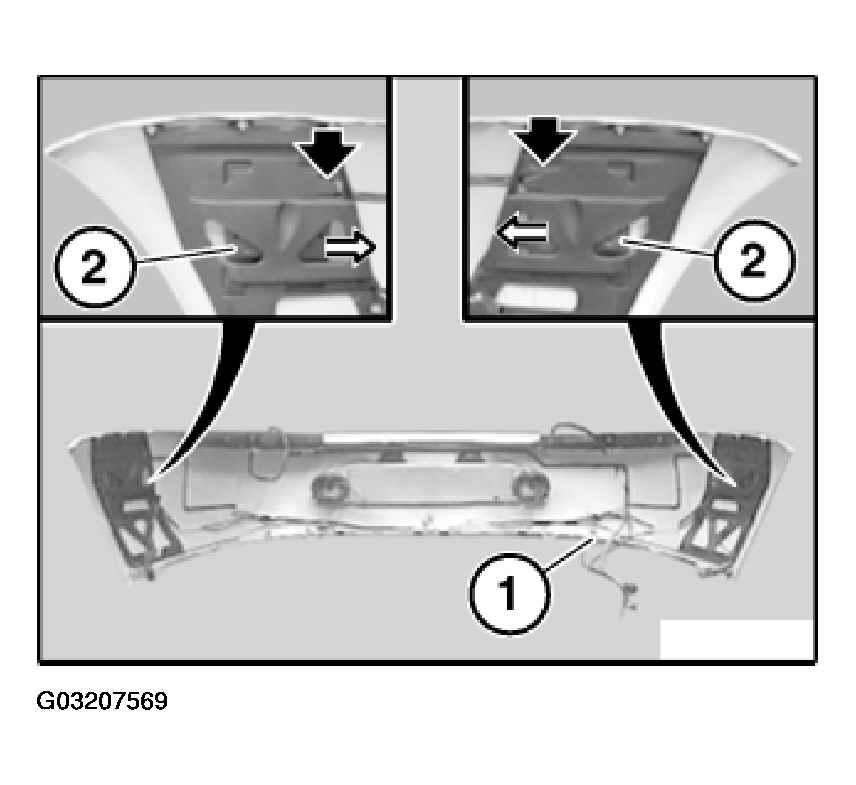

Detach cable ties for fastening connecting leads of telephone antenna (1).
Unclip telephone antenna (2) on left and right of bumper and slide out of mount in direction of arrow.
Installation:
Ensure telephone antenna is correctly seated in mount.
