51 12 000 Removing and installing complete rear bumper

Remove bumper lower paneling at rear. Refer to 51 12 160 Removing and installing/replacing rear lower bumper trim .

Unlock rotary fasteners (1) and remove covers (2) from ventilation grill (3).

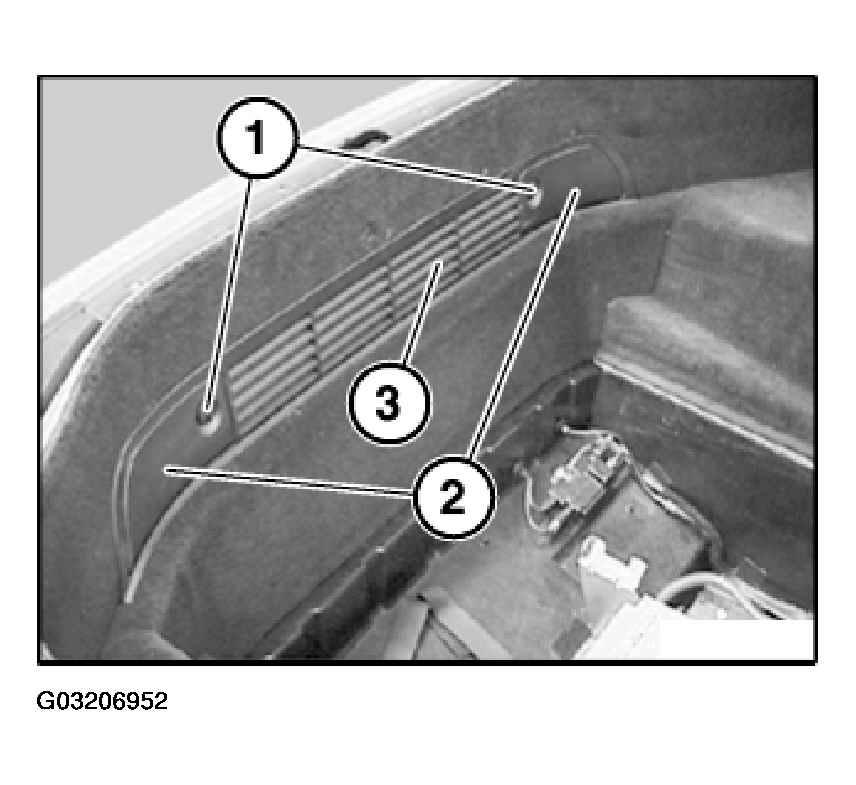

Fig 1: Removing Covers From Ventilation Grill

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1) on left/right.

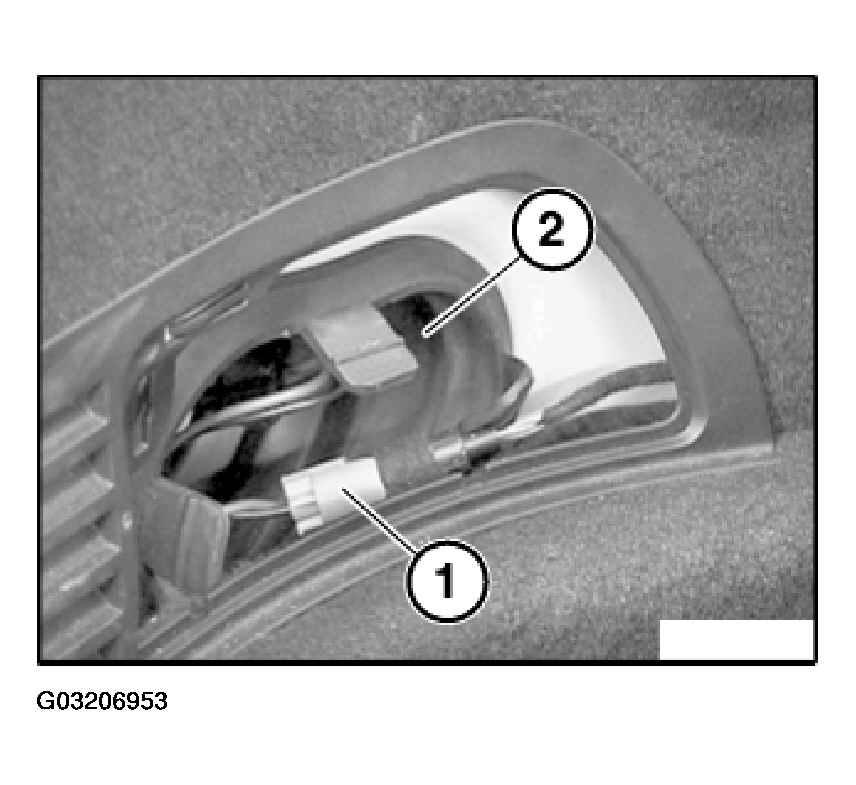

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out grommet (2).

Remove luggage compartment floor trim panel. Refer to 51 47 101 Removing and installing/replacing luggage compartment floor trim panel .

Disconnect plug connection (1).

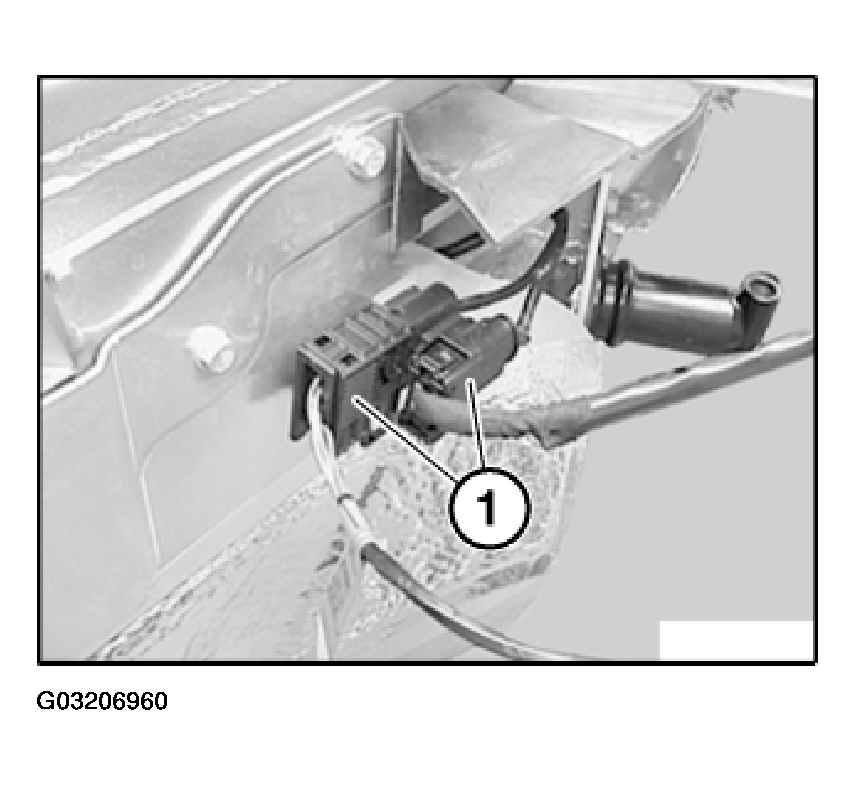

Fig 3: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Release expansion rivets (1) and remove trim (2).

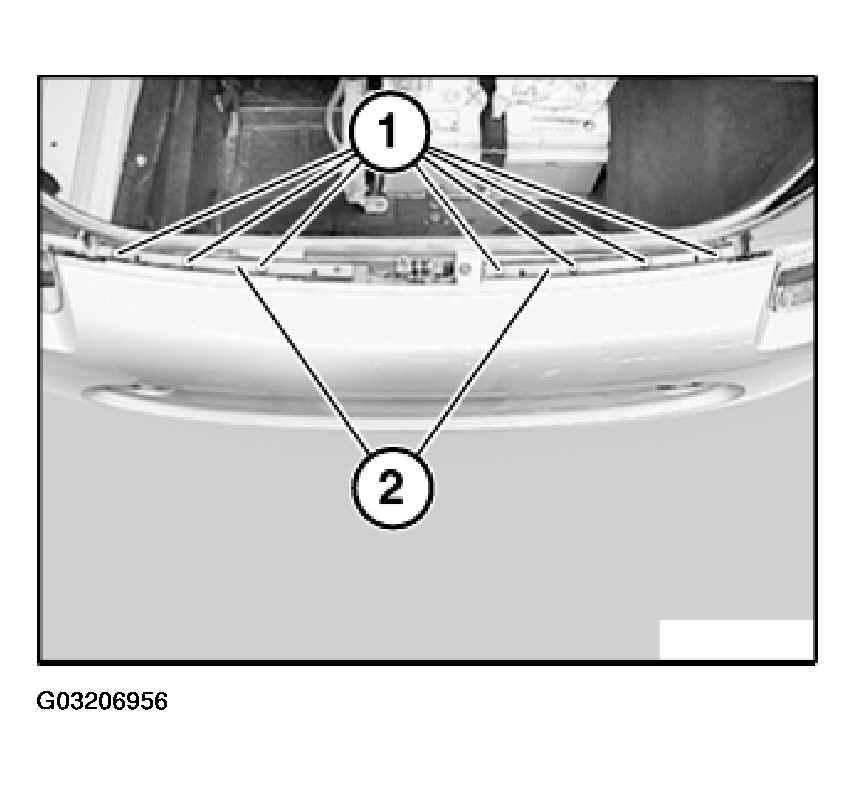

Fig 4: Releasing Expansion Rivets

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove retaining rail (2) and spacers.

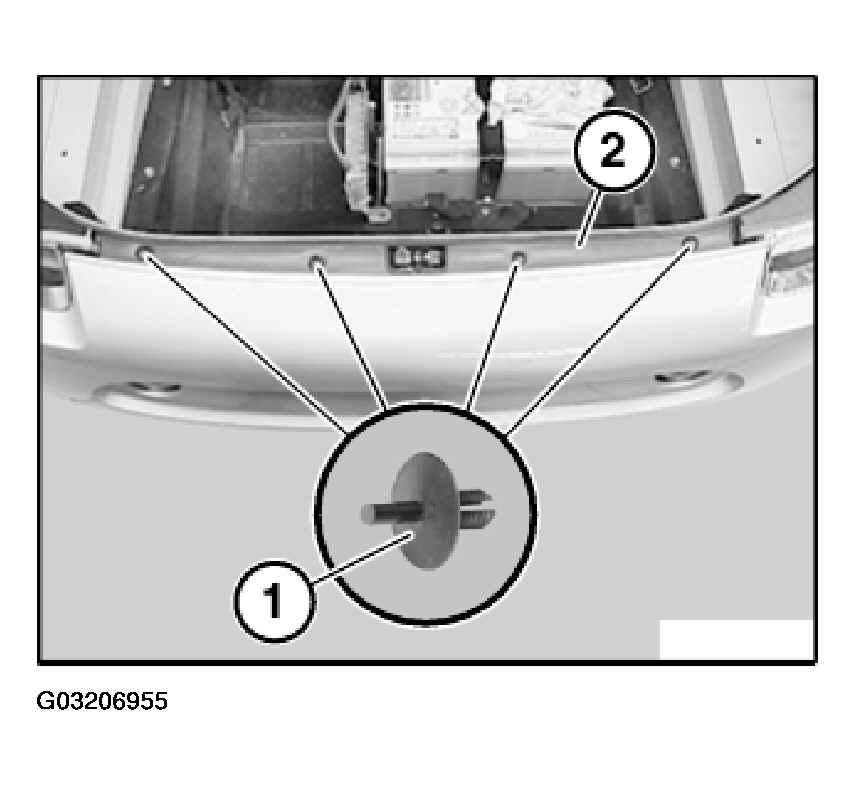

Fig 5: Removing Retaining Rail And Spacers

Courtesy of BMW OF NORTH AMERICA, INC.

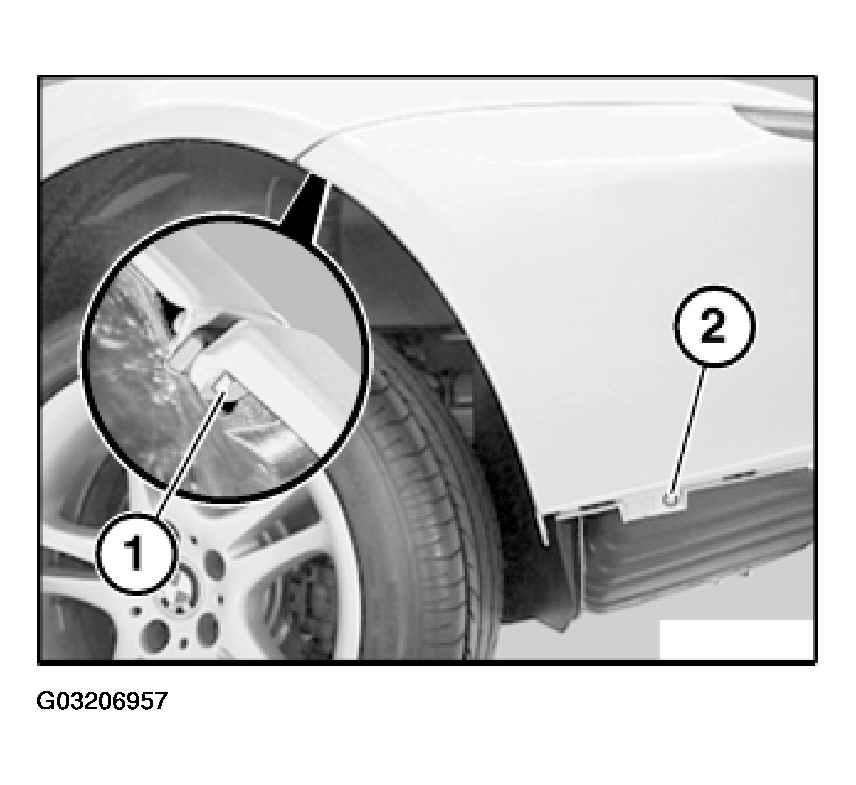

Release screws (1) and (2) on left/right and remove spacer bushings.

Fig 6: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

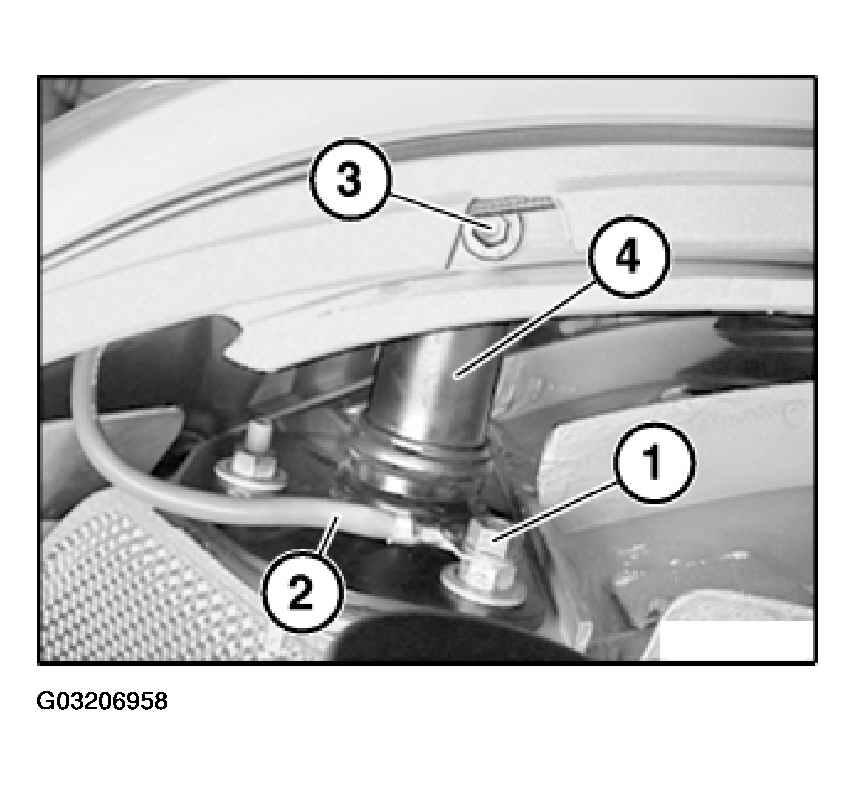

Release nut (1) on left/right and detach cable (2).

Fig 7: Releasing Nuts And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (3) on left/right from impact absorber (4).

Installation:

Tightening torque 51 12 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Carefully pull bumper (1) on left/right outwards and snap out the first two ribs (3) with a small screwdriver (risk of damage).

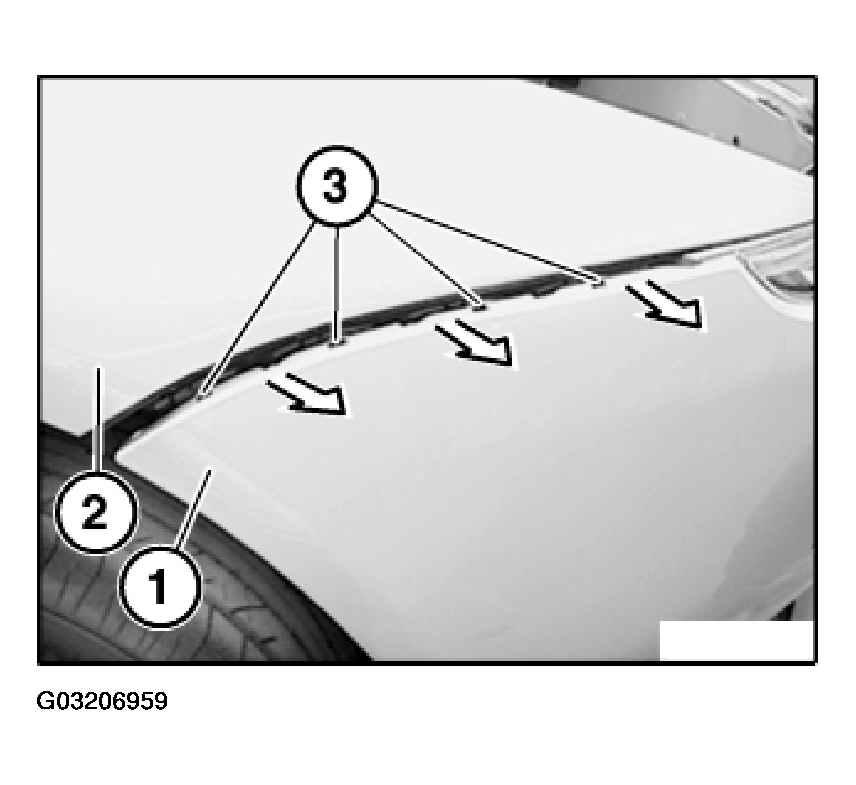

Fig 8: Unclipping Bumper From Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Then unclip rest of bumper (1) from side panel (2).

Ribs (3) must not be damaged.

Pull back bumper slightly.

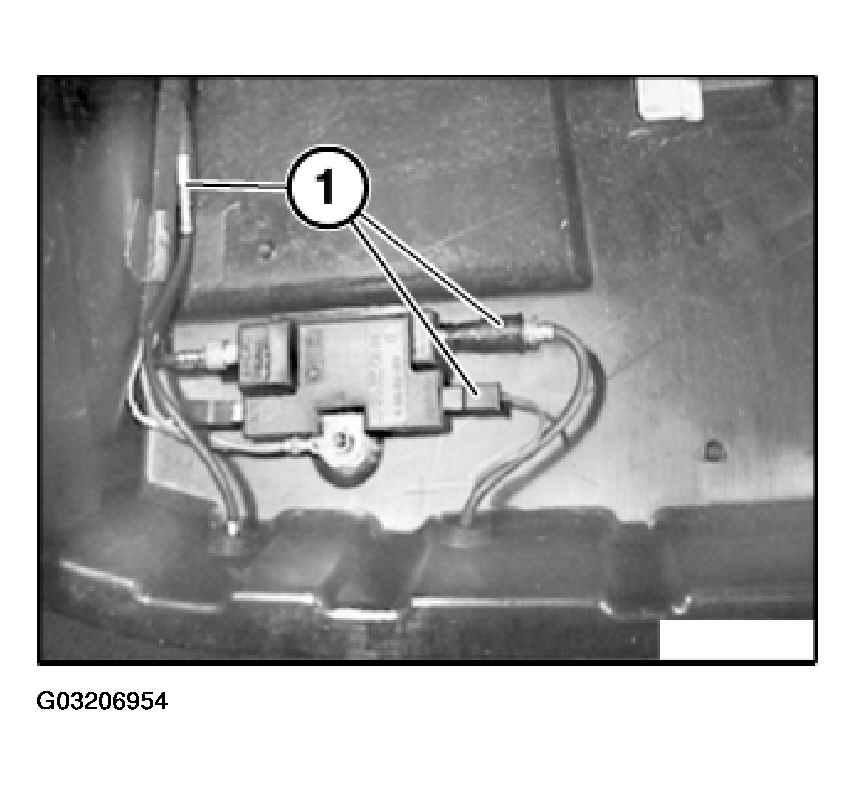

Disconnect plug connections (1) on left/right and pull off complete bumper.

Fig 9: Disconnecting Plug Connections
