51 45 030 Removing and installing instrument panel trim: Notes

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect battery negative lead. See 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .

Remove both panels for front roof pillar. See 51 43 201 Removing And Installing/Replacing Panel For Roof Pillar At Front (A-Pillar), Left Or Right .

Remove light switch unit. See 61 31 033 REMOVING AND INSTALLING LIGHT SWITCH UNIT .

Remove complete instrument carrier. See 62 21 000 REMOVING AND INSTALLING COMPLETE INSTRUMENT CARRIER .

Remove fixture for steering column switch. See 61 31 005 REMOVING AND INSTALLING/REPLACING FIXTURE FOR STEERING COLUMN SWITCH .

Remove center fresh air grill. See 64 22 161 REMOVING AND INSTALLING/REPLACING FRESH AIR GRILL CENTER .

Remove radio receiver. See 65 11 030 REMOVING AND INSTALLING / REPLACING RADIO .

Remove airbag module on passenger side. See SIDE AIR BAG MODULE .

Remove center console. See 51 16 200 Removing And Installing Center Console .

Remove lower left trim from instrument panel. See 51 45 180 Removing And Installing Trim For Instrument Panel, Bottom Left .

Remove right glovebox. See 51 16 360 Removing And Installing Right Glove Box .

Remove all clipped finishers (decorative strips on panel for instrument panel). See 51 16 221 Replacing A Clipped Finisher (Decorative Strip On Panel For Instrument Panel, Front Or Rear Door) .

Release screws (1).

Disconnect plug connection for speaker.

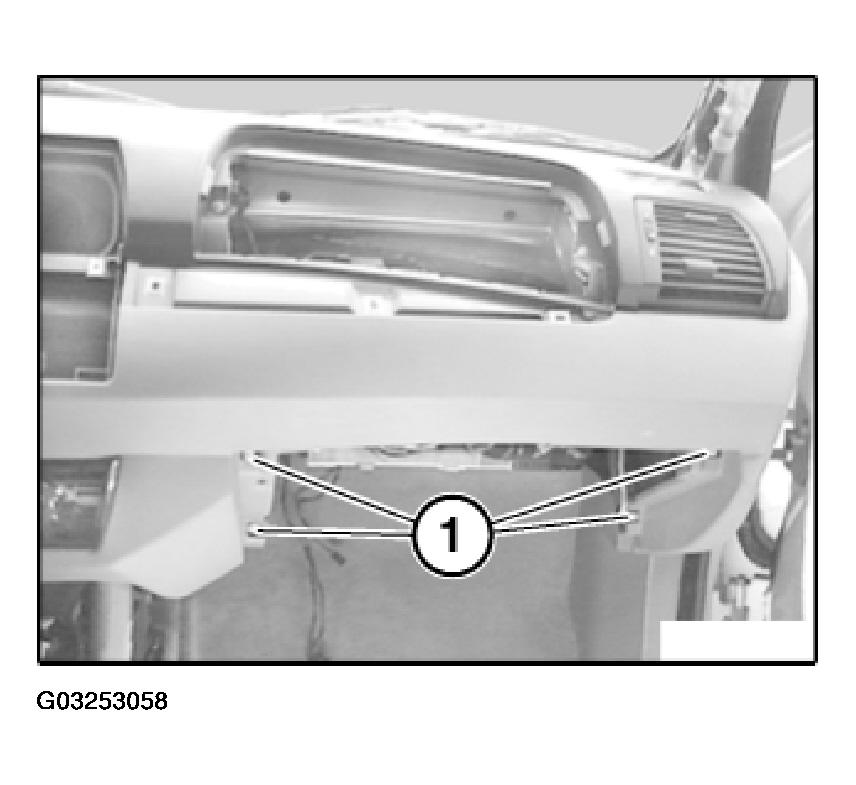

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Disconnect plug connection for speaker.

Fig 2: Disconnecting Plug Connection For Speaker

Courtesy of BMW OF NORTH AMERICA, INC.
