51 45 180 Removing and installing trim for instrument panel, bottom left

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove trim for pedal assembly. See 51 45 185 Removing And Installing/Replacing Trim For Pedal Assembly .

Release screws (1).

Disconnect plug connection for OBD socket (2).

Unclip rubber gaiter from steering wheel trim and remove trim (2).

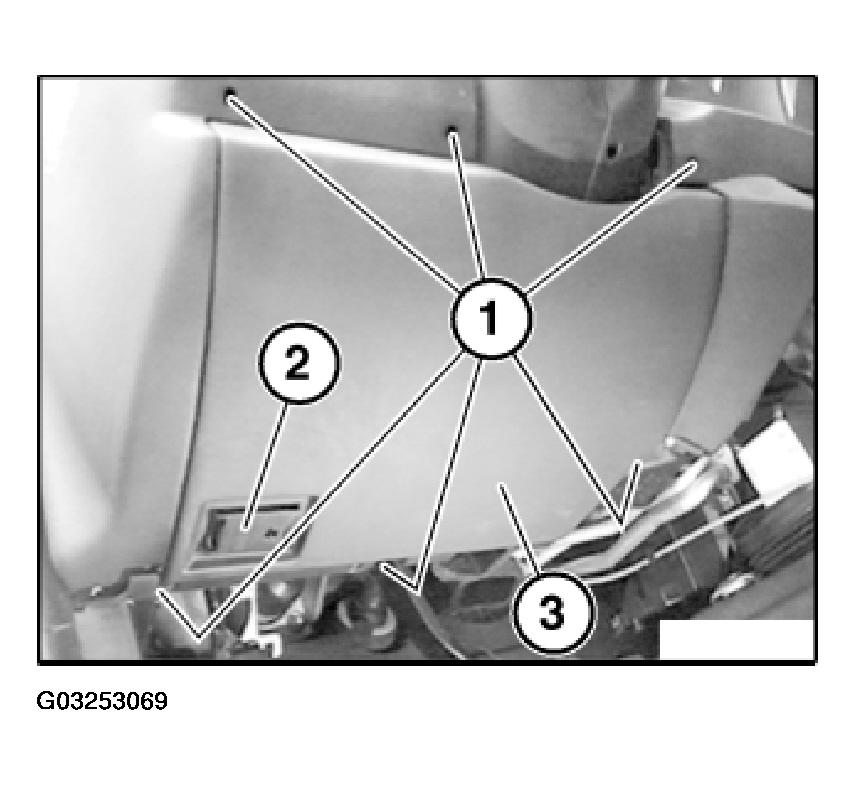

Fig 1: Uncliping Rubber Gaiter From Steering Wheel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clip rubber gaiter (1) correctly with clips (1) into fixtures (3) in steering wheel trim.

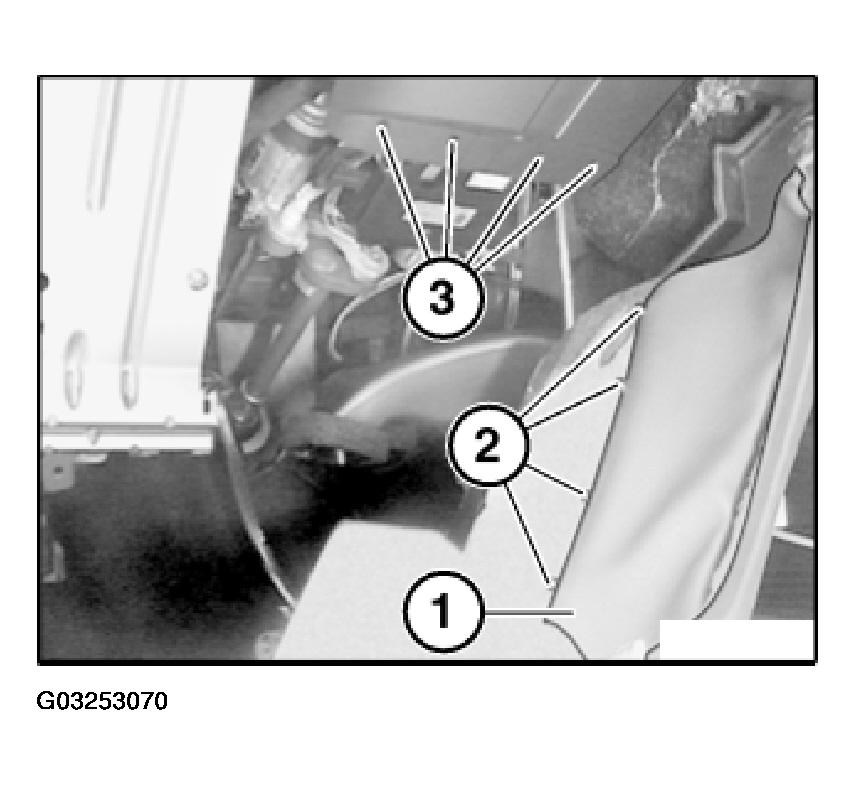

Fig 2: Inspecting Clip Rubber Gaiter Correctly With Clips Into Fixtures In Steering Wheel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace faulty metal nuts (1).

Rubber gaiter (2) and styrofoam (3) must not be damaged.

Replacement only:

Remove OBD socket (4) from trim (5).

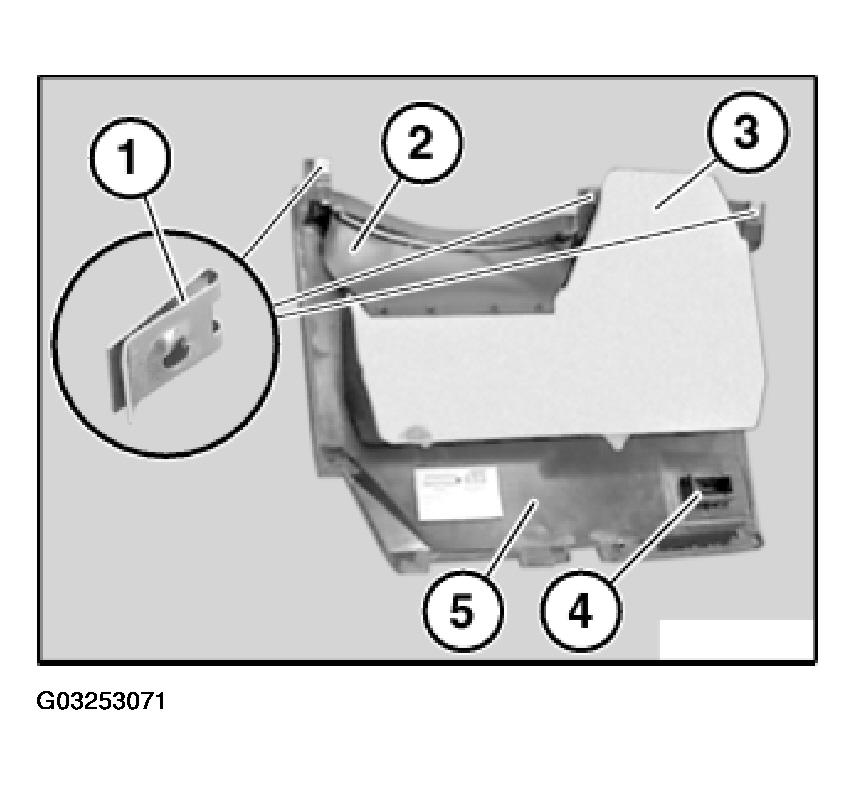

Fig 3: Removing OBD Socket From Trim

Courtesy of BMW OF NORTH AMERICA, INC.
