62 21 000 Removing And Installing Complete Instrument Carrier

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Extend steering column completely and set in downward position.

Loosen screws (1).

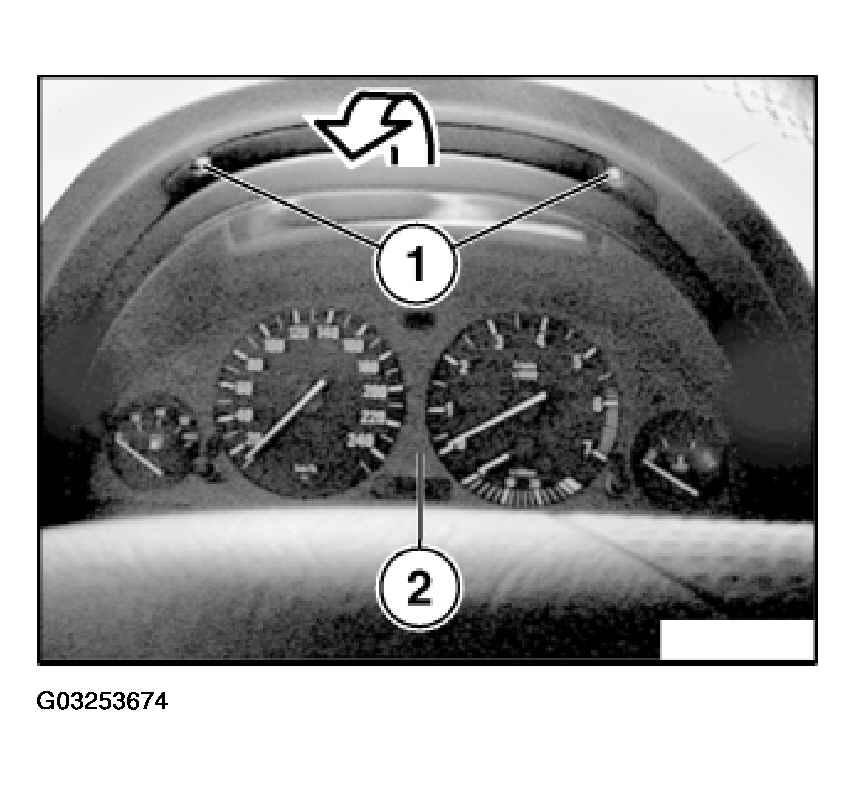

Fig 1: Removing Instrument Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Fold down instrument carrier (2) and remove.

Disconnect plug connections and remove instrument carrier (2).
