51 43 201 Removing and installing/replacing panel for roof pillar at front (A-pillar), left or right

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Follow safety instructions for working on cars with airbag systems.

IMPORTANT: Do not use sharp-edged tools to remove trim (risk of damage to head air bag).

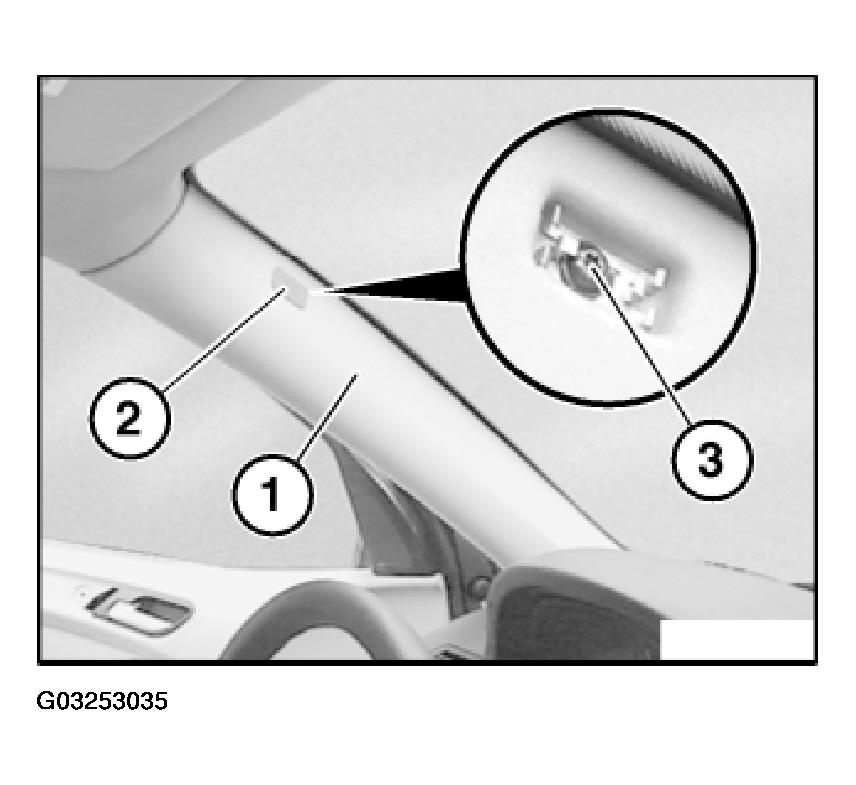

Detach mucket on outside in area of panel (1).

Remove plate (2).

Unscrew bolt (3).

Tightening torque, see 51 43 2AZ in BODY EQUIPMENT - TIGHTENING TORQUES .

Fig 1: Unscrewing Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

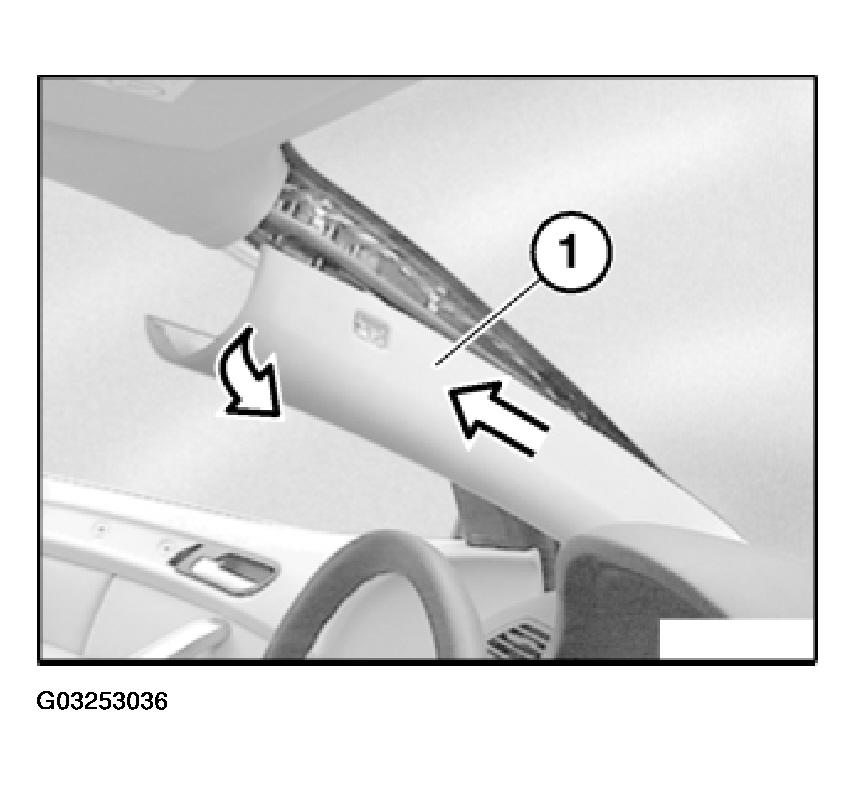

Unclip panel (1) at top and detach towards top.

Fig 2: Uncliping Panel At Top And Detach Towards Top

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

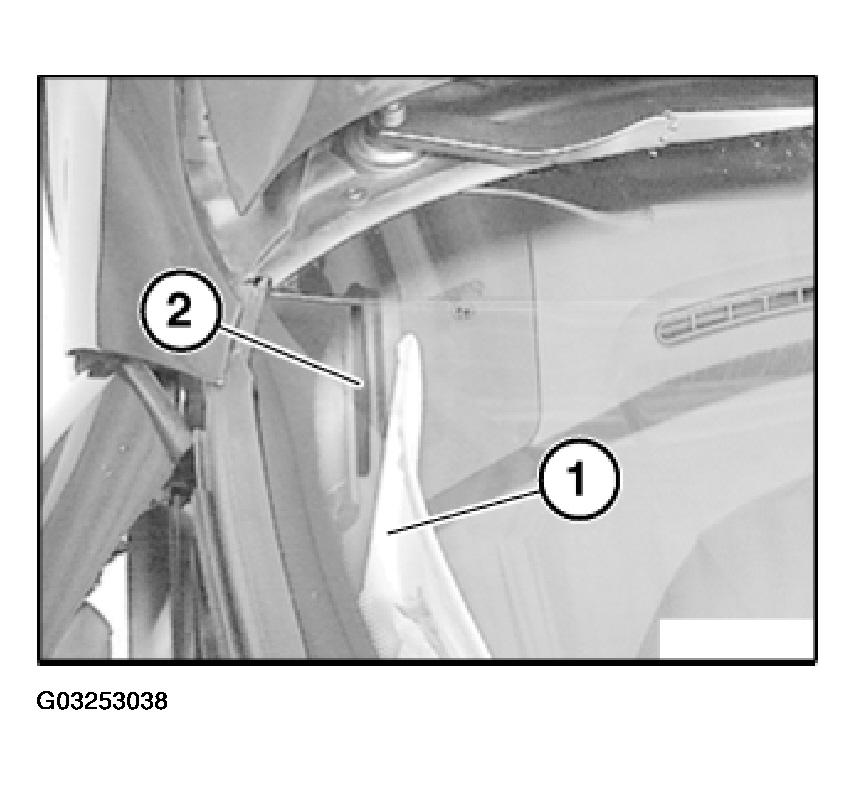

If necessary, replace faulty clips (1).

Align plastic lug (2) to retainer in A-pillar.

Fig 3: Aligning Plastic Lug To Retainer In A-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Viewing direction through windscreen:

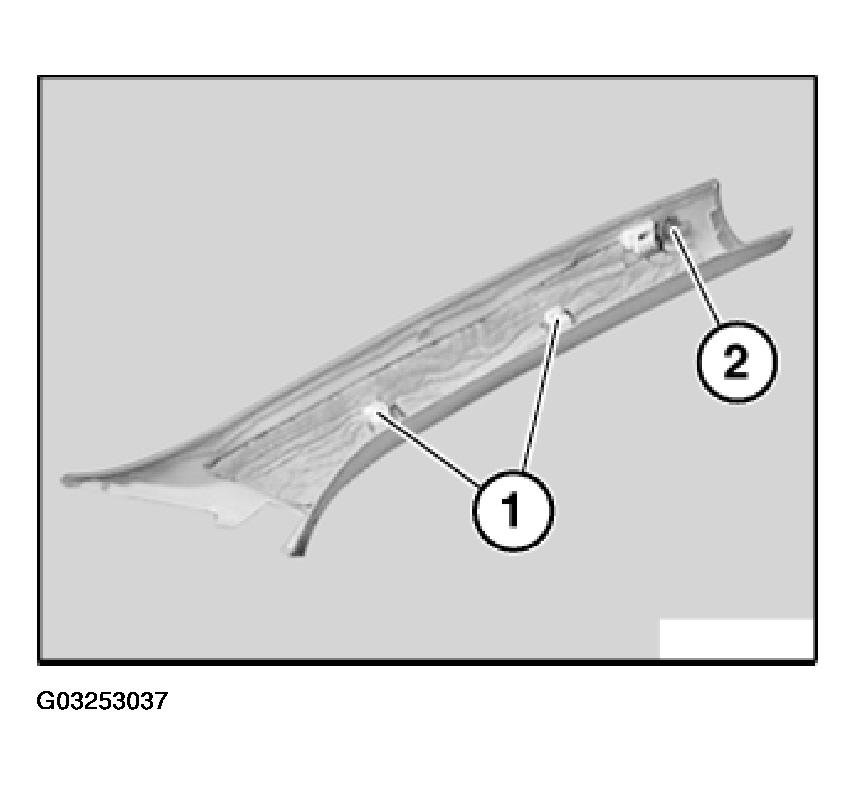

Insert panel for roof pillar (1) into groove (2) of trim panel for instrument panel.

Fig 4: Inserting Panel For Roof Pillar Into Groove

Courtesy of BMW OF NORTH AMERICA, INC.
