51 16 360 Removing and installing right glove box

WARNING: This page is about a different car, the 2003 BMW X5, 2002 BMW X5, 2001 BMW X5, and 2000 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove bottom right trim panel from instrument panel.

Open glovebox.

Lever out glovebox lamp and disconnect plug connection.

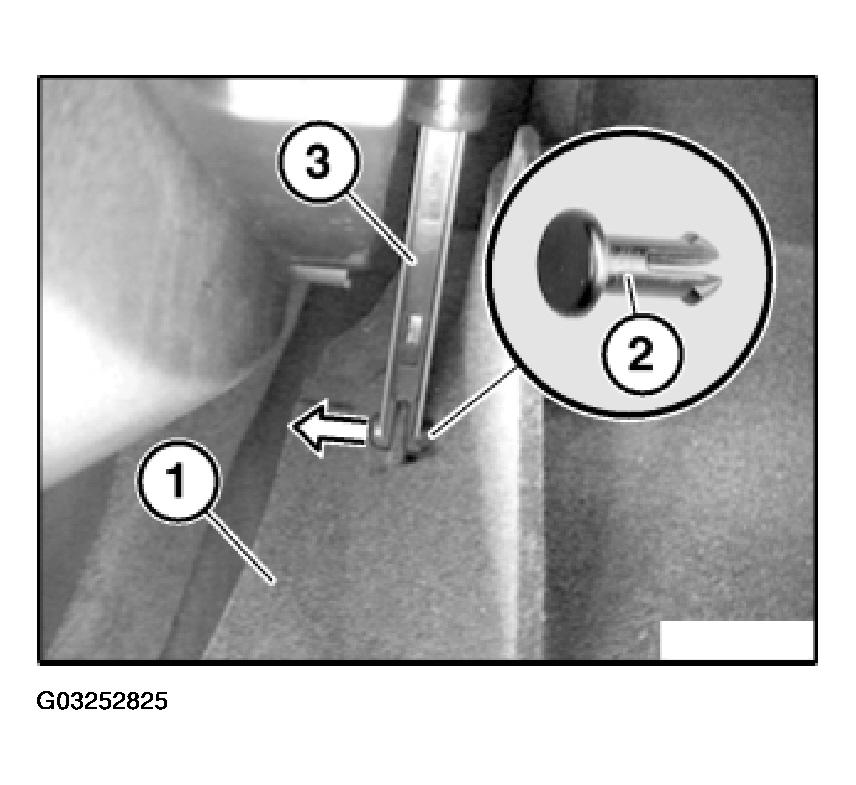

Raise glovebox (1) a little and detach pin (2) from retaining strap (3).

Fig 1: Detaching Pin From Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover from right glovebox and open fully.

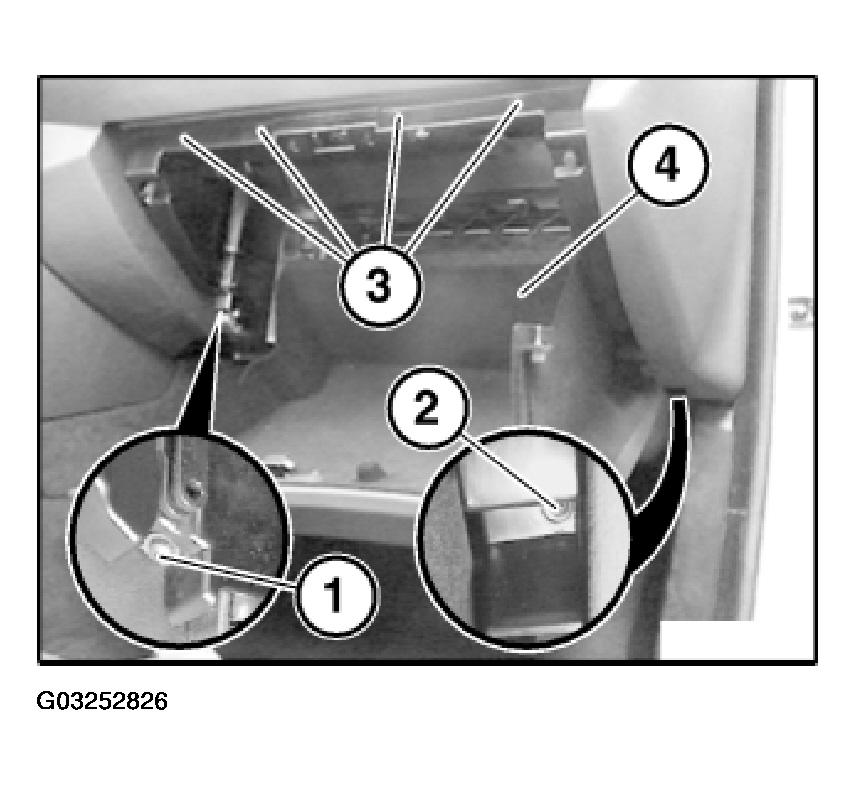

Remove screws (1) and (2).

Release screws (3) and fold down glovebox (4).

Fig 2: Releasing Screws And Fold Down Glovebox

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, disconnect plug connection for portable lamp.

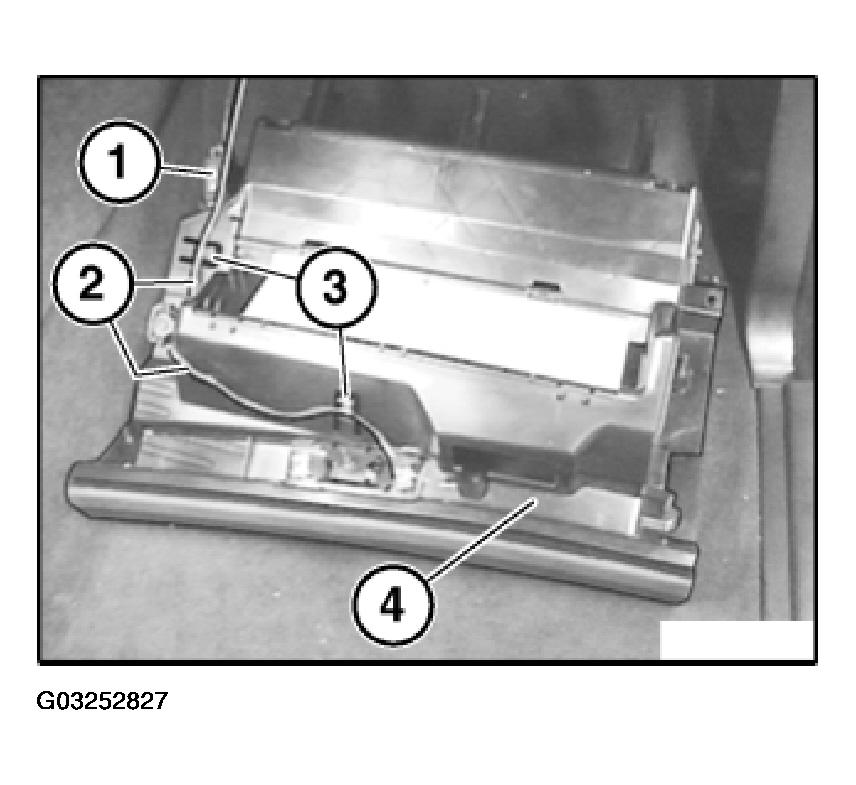

Feed cable (2) out of holder (3) and remove glovebox (4).

Fig 3: Disconnecting Plug Connection For Portable Lamp

Courtesy of BMW OF NORTH AMERICA, INC.
