Remove/Install Elastomer Bearing Of Spring Control Arm On Rear Axle Carrier - AR35.20-P-3405S

Model 223 with engine 176, 256, 279, 656

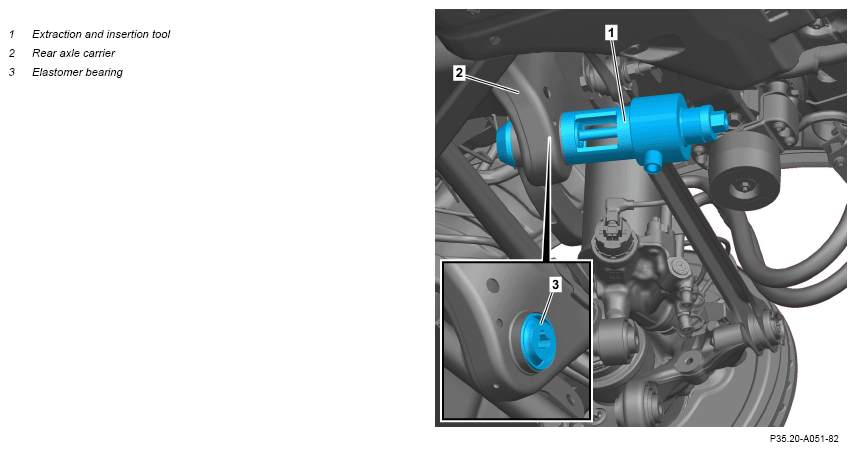

Removal, shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

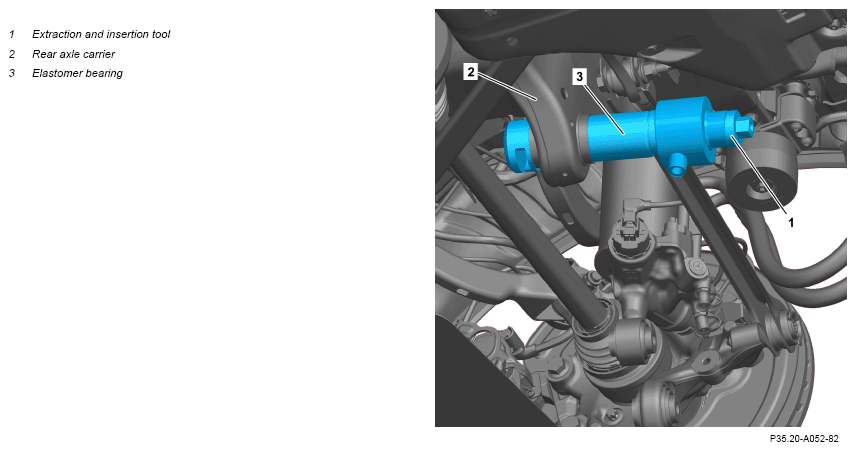

Installation, shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1.1	Remove exhaust system.	Model 223 with engine 176, 256, 656 Model 223 with engine 176, 256	AR49.10-P-7142S
		Model 223 with engine 656	AR49.10-P-7142SB
1.2	Remove left rear muffler.	Model 223 with engine 279 When removing left elastomer bearing (3).	AR49.10-P-4824SVZ
1.3	Remove right rear muffler.	Model 223 with engine 279 When removing right elastomer bearing (3).	AR49.10-P-4825SVZ
2	Remove left and right spring link.	Model 223 with engine 279 with code Z07 (B7 armoring on special protection version)	AR35.20-P-0119SG
		Model 223 with engine 176, 256, 656	AR35.20-P-0119S
3	Position extraction and insertion tool (1), as shown, onto rear axle carrier (2) and elastomer bearing (3).	Model 223 with engine 176, 256, 656 Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) From extraction and insertion tool (1), counterholder (293 589 00 43 01), thrust piece (293 589 00 43 02), nut (293 589 00 43 05) and spindle (293 589 00 43 06) are required. Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) From extraction and insertion tool (1), counterholder (223 589 05 43 01), thrust piece (223 589 05 43 03), nut (223 589 05 43 05) and spindle (223 589 05 43 06) are required. Hand pump	Fig 1
		Hydraulic hose (complete)	Fig 5
		Hydraulic cylinder	Fig 2
		Model 223 with engine 176, 256, 656 Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) Extraction and insertion tool	Fig 4
		Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) Extraction and insertion tool	Fig 3
4	Press elastomer bearing (3) out of rear axle carrier (2).
	Install
5	Clean bearing seat in rear axle carrier (2).
6	Coat new elastomer bearing (3) with insertion agent.	Mobil Vacuoline 137 insertion agent, 0.5 L	*BR00.45-Z-1097-06A
7	Position extraction and insertion tool (1) with new elastomer bearing (3) onto rear axle carrier (2), as shown.	Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) From extraction and insertion tool (1), counterholder (223 589 05 43 02), thrust piece (223 589 05 43 04), nut (223 589 05 43 05)
		and spindle (223 589 05 43 06) are required. Model 223 with engine 176, 256, 656 Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) From extraction and insertion tool (1), counterholder (293 589 00 43 04), thrust piece (293 589 00 43 03), nut (293 589 00 43 05) and spindle (293 589 00 43 06) are required. Hand pump	Fig 1
		Hydraulic hose (complete)	Fig 5
		Hydraulic cylinder	Fig 2
		Model 223 with engine 176, 256, 656 Model 223 with engine 279 except code Z07 (B7 armoring on special protection version) Extraction and insertion tool	Fig 4
		Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) Extraction and insertion tool	Fig 3
8	Pull new elastomer bearing (3) into rear axle carrier (2).	Pull-in elastomer bearing (3) far enough until protrusion on rear axle carrier (2) is equal on both sides. The elastomer bearing (3) must be seated centrally in the rear axle carrier (2).
9	Remove extraction and insertion tool (1).
10	Install spring link.	Model 223 with engine 279 with code Z07 (B7 armoring on special protection version)	AR35.20-P-0119SG
		Model 223 with engine 176, 256, 656	AR35.20-P-0119S
11.1	Install exhaust system.	Model 223 with engine 176, 256, 656 Model 223 with engine 176, 256	AR49.10-P-7142S
		Model 223 with engine 656	AR49.10-P-7142SB
11.2	Install left rear muffler.	Model 223 with engine 279 If left elastomer bearing (3) was replaced.	AR49.10-P-4824SVZ
11.3	Install right rear muffler.	Model 223 with engine 279 If right elastomer bearing (3) was replaced.	AR49.10-P-4825SVZ

Fig 1: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hydraulic Cylinder (001 589 60 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (223 589 05 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction And Insertion Tool (293 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Hose (complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA
