Remove/Install Front Axle Differential - AR33.30-P-0525S

Model 223 with engine 176, 256

with code M005 (Vehicles with 4MATIC/all-wheel drive)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove front axle carrier.	Model 223 with engine 176 with code M005 (Vehicles with 4MATIC/all-wheel drive) : Only install lower engine compartment paneling after leak test.	AR33.10-P-0100SA
2	Detach front axle differential propeller shaft from front axle differential (1).	Model 223 with engine 176 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR41.10-P-0070SC
		Model 223 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 223 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive) Installation:  Only install lower engine compartment paneling after leak test.	AR41.10-P-0070S
3	Drain front axle differential oil.		AR33.25-P-0300-01S
		Quick-acting adhesive Omnifit 100H (50 g)	*BR00.45-Z-1110-02A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Front axle transmission filling screw	*BA33.30-P-1014-03G
		Front axle transmission drain screw	*BA33.30-P-1008-03G
		Hypoid gear oil (filling quantity)	BF33.30-P-1001-03F
		Hand pump	Fig 1
4	Remove front axle shafts.	Model 223 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0620S
5	Remove intermediate shaft.		AR33.30-P-0625S
6	Lower steering gear far enough until front axle differential (1) can be removed.	Model 223 with engine 256 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR46.20-P-0500S
7	Remove integrated starter alternator control unit (N129).	Model 223 with engine 256.9 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code ME10 (Hybrid vehicle (plug-in, PHEV))	AR15.40-P-0004SB

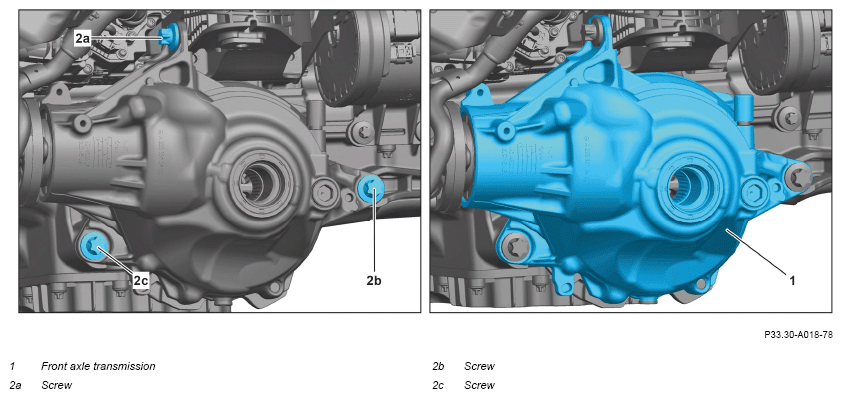

8	Unscrew screw (2c).	Collar bolt, front axle differential to support/oil pan	*BA33.30-P-1006-03G
9	Remove screw (2b).	Collar bolt, front axle differential to support/oil pan	*BA33.30-P-1006-03G
10	Unscrew screw (2a) and remove front axle differential (1).	Collect remaining escaping front axle differential oil using an absorbent cloth. Collar bolt, front axle gear to engine support	*BA33.30-P-1007-03G
11	Install in the reverse order.
12	Check front axle differential (1) for leak tightness.
13	Install lower engine compartment paneling.		AR61.20-P-1105S

Fig 1: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA
