Remove/Install Front Axle Differential Propeller Shaft - AR41.10-P-0070SC
Model 223 with engine 176
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove | |||
| 1 | Put transmission into neutral position. | ||
| 2 | Release parking brake. | ||
| 3 | Remove oil cooler. | Model 223 with engine 176 with transmission 725.1 | AR27.55-P-1000SC |
| 4 | Remove holder (2). | ||
| 5 | Remove heat shield from transmission. | AR27.40-P-0700-01S | |

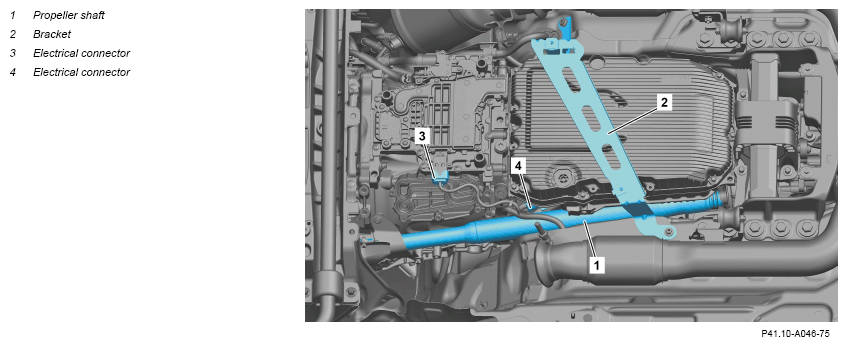

| 6 | Release and disconnect electrical connection (3). | ||
| 7 | Release and disconnect electrical connector (4) and position electrical wiring harness outside the working area. | ||
| 8 | Detach right catalytic converter from exhaust gas turbocharger, center exhaust system and brackets and expose. | AR49.20-P-0102S | |
| 9 | Remove the heat shield (5). | ||
| 10 | Remove bracket (6). | ||

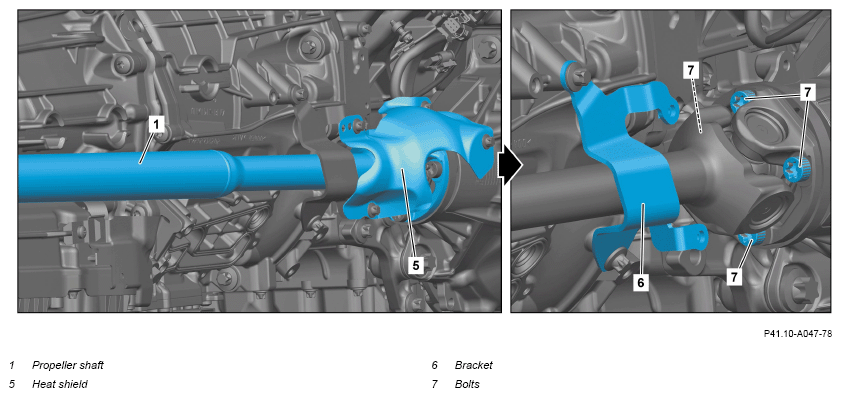

| 11 | Operate service brake and remove screws (7). | Do not counterhold the propeller shaft (1) at the universal joint. The needle roller bearings and seals of the propeller shaft (1) will otherwise be damaged. |
|
| 12 | Turn right catalytic converter outwards in transmission tunnel and detach propeller shaft (1) from front axle differential. | ||
| 13 | Remove propeller shaft (1) together with transfer case. | Model 223 with engine 176 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100S |
| 14 | Remove propeller shaft (1) from transfer case. | ||

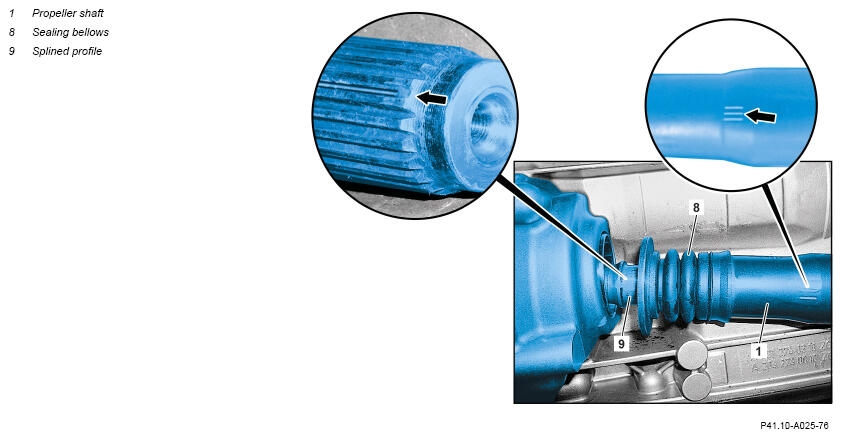

| 15 | Check sealing bellows (8) for damage. | If sealing bellows (8) is damaged, ↓ replace sealing bellows (8). |
|
| Install | |||
| 16 | Grease splined profile (9). | Klueber Microlube GNY 202 | *BR00.45-Z-1071-06A |
| 17 | Attach propeller shaft (1) to transfer case. | ||
| 18 | Install propeller shaft (1) together with transfer case. | Model 223 with engine 176 with transmission 725.1 with code M005 (Vehicles with 4MATIC/all-wheel drive) |
AR28.10-P-0100S |
| 19 | Turn right catalytic converter outwards in transmission tunnel and position propeller shaft (1) on front axle differential. | ||
| 20 | Operate service brake and screw in screws (7). | Do not counterhold the propeller shaft (1) at the universal joint. The needle roller bearings and seals of the propeller shaft (1) will otherwise be damaged. Replace the bolts (7). |
*BA33.30-P-1012-03G |
| 21 | Install bracket (6). | *BA33.30-P-1010-03G | |
| 22 | Install the heat shield (5). | *BA33.30-P-1009-03G | |
| 23 | Attach right catalytic converter to exhaust gas turbochargers, center exhaust system and brackets. | AR49.20-P-0102S | |
| 24 | Connect and lock electrical connector (4). | ||
| 25 | Connect and lock electrical connector (3). | ||
| 26 | Install heat shield on transmission. | AR27.40-P-0700-01S | |
| *BA27.10-P-1008-04H | |||
| *BA27.10-P-1009-04H | |||
| 27 | Install holder (2). | ||
| 28 | Install oil cooler. | Model 223 with engine 176 with transmission 725.1 | AR27.55-P-1000SC |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | Transmission 725.1 | |
|---|---|---|---|---|
| BA27.10-P-1008-04H | Bolt, leaf spring for heat shield to transmission | Nm | 5 | 5 |
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0 | Transmission 725.1 | |
|---|---|---|---|---|
| BA27.10-P-1009-04H | Bolt, heat shield to oil pan | Nm | 9 | 9 |
FRONT AXLE GEAR
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA33.30-P-1009-03G | Collar bolt, heat shield to holder of heat shield/retaining plate/front axle differential | Nm | 8 |
FRONT AXLE GEAR
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA33.30-P-1010-03G | Collar bolt, holder for heat shield to transmission/holder for exhaust system | M6 | Nm | 12 |
| M8 | Nm | 20 | ||
FRONT AXLE GEAR
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA33.30-P-1012-03G | Screw/bolt, propeller shaft to front axle gear | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 95 | ||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1071-06A | Klueber Microlube GNY 202 | A 001 989 44 51 10 |
