Drain/Pour In Front Axle Gear Oil - AR33.25-P-0300-01S
Model 223
with code M005 (Vehicles with 4MATIC/all-wheel drive)
MODIFICATION NOTES
| 30.07.2023 | Hypoid gear oil (filling quantity) | BF33.30-P-1001-03F |
FRONT AXLE GEAR
| Number | Designation | Model 223 | |
|---|---|---|---|
| BA33.30-P-1008-03G | Front axle transmission drain screw | Nm | 20 |
FRONT AXLE GEAR
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BA33.30-P-1014-03G | Front axle transmission filling screw | M24 | Nm | 25 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1046-04A | Loctite 7063 (400 ml) cleaning spray | A 001 986 71 71 09 |
| BR00.45-Z-1110-02A | Quick-acting adhesive Omnifit 100H (50 g) | A 002 989 23 71 |
Drain off

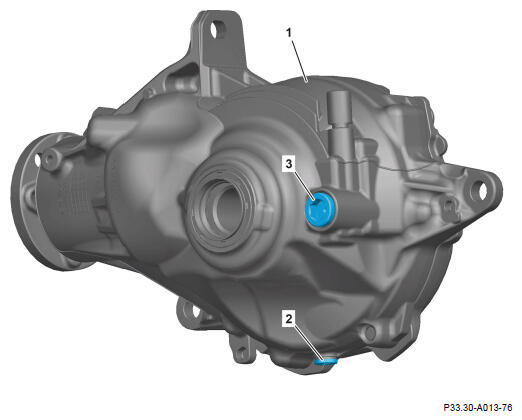

- Remove filling screw (3).
- Remove drain screw (2) and collect hypoid gear oil in a suitable container.
- Remove sealing ring of drain screw (2).
Pour in
- Clean thread of drain screw (2) and filling screw (3) in housing of transfer case (1) using cleaning spray.
- Attach sealing ring on drain screw (2).
Replace seal.
- Screw in drain screw (2)
.
- Fill hypoid gear oil using
hand pump
.
- Coat first pitch of thread of filling screw (3) with quick-acting adhesive.
- Screw in filling screw (3)
