Remove/Install Intermediate Shaft - AR33.30-P-0625S

Model 223

with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

22.03.2021

Check of pilot bushing (4), added.

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses.	AS00.40-Z-0001-01A
		Do not pour transmission oil into beverage bottles.
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove left front axle shaft.		AR33.30-P-0620S

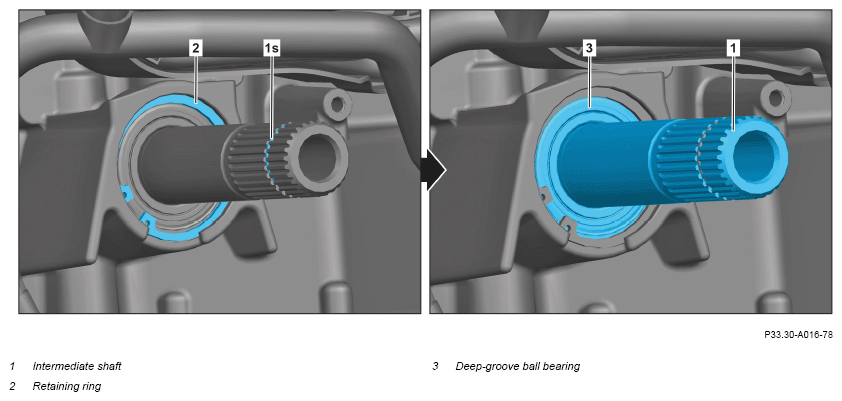

2	Remove retaining ring (2).
3	Remove intermediate shaft (1) with deep-groove ball bearing (3).
	Check
4	Check intermediate shaft (1) for damage.	If the intermediate shaft (1) is damaged. ↓ Replace intermediate shaft (1).
5	Check deep-groove ball bearing (3) for damage.	If the deep-groove ball bearing (3) is damaged. ↓ Replace deep-groove ball bearing (3). Replace deep-groove ball bearing in intermediate shaft	AR33.30-P-0625-02S
		Length "a" for grooved ball bearing wheel offset	*BE33.30-P-1001-04C
		Pulling arms	Fig 1
		Puller, two-arm	Fig 2
		Thrust piece set	Fig 3
		Drift	Fig 4

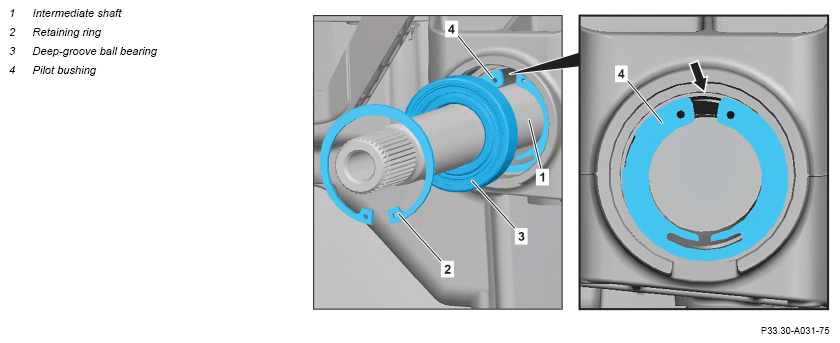

6	Check pilot bushing (4) for damage.	If pilot bushing (4) is damaged: ↓ Replace pilot bushing (4). Observe installation position (arrow).
7	Check pilot bushing (4) is correctly seated in oil pan.	The pilot bushing (4) must be installed in the oil pan. Otherwise, the radial shaft sealing ring on the front axle differential will be damaged. If the pilot bushing (4) is not correctly seated in the oil pan: ↓ Install pilot bushing (4) correctly in oil pan. Observe installation position (arrow).
	Install
8	Install intermediate shaft (1) with deep-groove ball bearing (3).
9	Install retaining ring (2).
10	Install front axle shaft at left.		AR33.30-P-0620S

INTERMEDIATE SHAFT

Number	Designation				Model 223
BE33.30-P-1001-04C	Length "a" for grooved ball bearing wheel offset	With an intermediate shaft length of	472.0 mm	mm	-
			478.5 mm	mm	-
			479.3 mm	mm	350, 2...350, 4
			504.3 mm	mm	-
			510.0 mm	mm	-
