Remove/Install Turbocharger With Left Exhaust Manifold - AR09.40-P-6037SVZ

Engine 279 in model 223

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove engine from front axle carrier.		AR01.10-P-2510SVZ
2	Remove transmission from engine.		AR27.10-P-0500SVZ
3	Mount the engine on the assembly stand with the engine crane.
	000 588 27 31 00 Assembly stand for cars		WS01.00-P-0262B
	000 588 00 62 00 Load tilter	Commercially available devices/tools: Engine crane	WS01.00-P-0102B
4	Remove engine crane and load tilter from engine.
5	Remove the coolant feed line for the left exhaust gas turbocharger.		AR09.41-P-0011SVZ
6	Remove the oil feed line for the left exhaust gas turbocharger.		AR09.40-P-0002SVZ
7	Remove the coolant return flow line for the left exhaust gas turbocharger.		AR09.41-P-0013SVZ
8	Remove the oil return feed line for the left exhaust gas turbocharger.		AR09.40-P-0004SVZ
9	Remove front left engine carrier.		AR22.10-P-4325SVZ

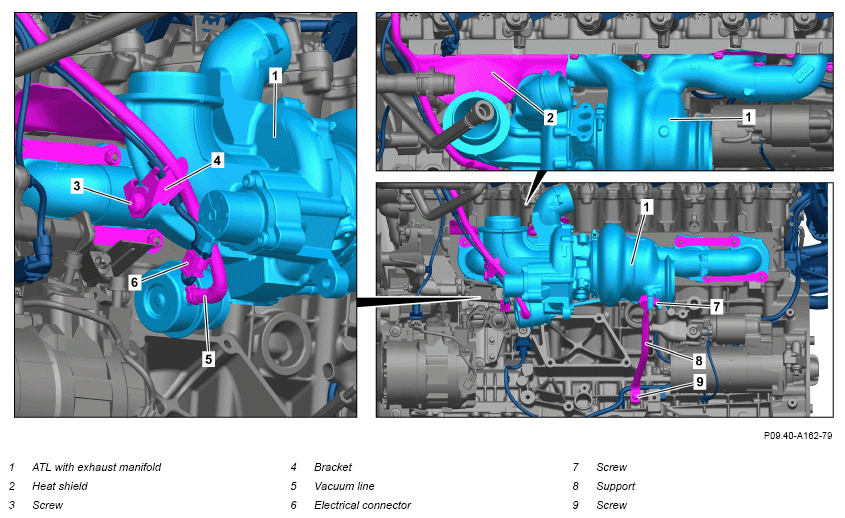

10	Remove heat shield (2).
11	Remove screw (3).
12	Expose the bracket (4) and remove.
13	Release and disconnect electrical connector (6).
14	Remove the snap clamp and vacuum line (5).	Plug openings. : Replace snap clamp. Pliers for click clamps	Fig 2
		Record plug	Fig 1
15	Remove the bolts (7, 9) and the support (8).	Bolt, support for turbocharger to turbocharger	*BA09.40-P-1008-01V
		Bolt, turbocharger support brace to crankcase	*BA09.40-P-1009-01V
16	Remove locking clips (10).	: Replace retainers (10).
17	Remove the nuts (11) in the reverse order of the tightening procedure.
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Tightening procedure	Request the assistance of another person to stop the exhaust gas turbocharger with exhaust manifold (1) from falling. : Replace nuts (11). Tighten the nuts (11) according to the tightening procedure.	GF09.40-P-6037-01SVZ

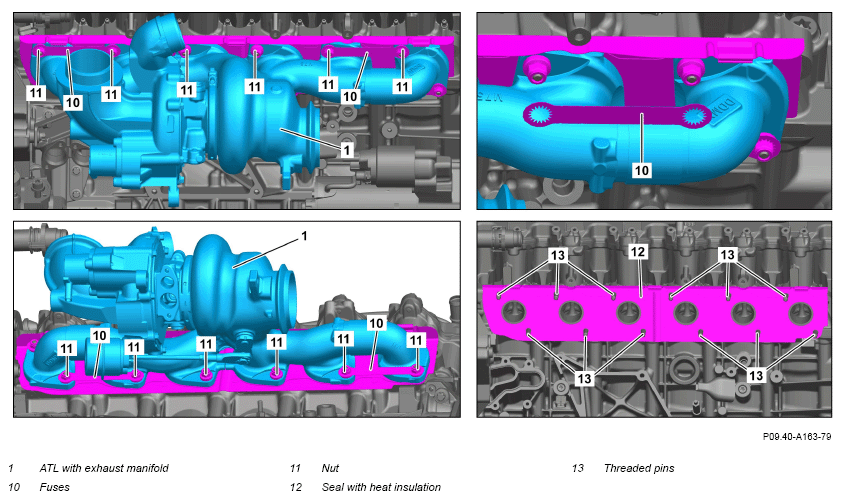

		Nut, exhaust gas turbocharger/exhaust manifold to cylinder head	*BA09.40-P-1001-01V
18	Remove the exhaust gas turbocharger with exhaust manifold (1).	Aid of helper required. The exhaust gas turbocharger and exhaust manifold (1) together form a unit and must not be separated. Seal the openings with suitable, lint-free dry cloths.
19	Remove the seal with heat insulation (12).	Seal the openings with suitable, lint-free dry cloths. : Replace the seal with heat insulation (12).
	Check
20	Check vacuum line (5) for damage.	If damage is present: ↓ Replace vacuum line (5).
21	Check the threaded pins (13) for damage.	If damage is present: ↓ Replace the relevant threaded pin (13).
22	Check the exhaust gas turbocharger with exhaust manifold (1) for damage and wear.	If damage or wear is present: ↓ Replace the exhaust gas turbocharger with exhaust manifold (1).
23	Check the sealing surfaces on the cylinder head and exhaust gas turbocharger with exhaust manifold (1) for damage.	If damage is present: ↓ Replace corresponding component. Remove/install left cylinder head	AR01.30-P-5770SVZ
24	Install in the reverse order.
