Remove/Install Left Front Engine Support - AR22.10-P-4325SVZ
Engine 279 in model 223
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Remove/install | |||
| 1 | Remove engine from front axle carrier. | AR01.10-P-2510SVZ | |
| 2 | Remove transmission from engine. | AR27.10-P-0500SVZ | |
| 3 | Mount the engine on the assembly stand with the engine crane. | ||
| 000 588 27 31 00 Assembly stand for cars | WS01.00-P-0262B | ||
| 000 588 00 62 00 Load tilter | Engine crane |
WS01.00-P-0102B | |
| 4 | Remove engine crane and load tilter from engine. | ||
| 5 | Remove the coolant return flow line. | AR09.41-P-0013SVZ | |
| 6 | Remove oil return feed line. | AR09.40-P-0004SVZ | |
| 7 | Unscrew screw at left front engine mount. | with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw front engine mount to front axle carrier |
*BA22.10-P-1001-03S |

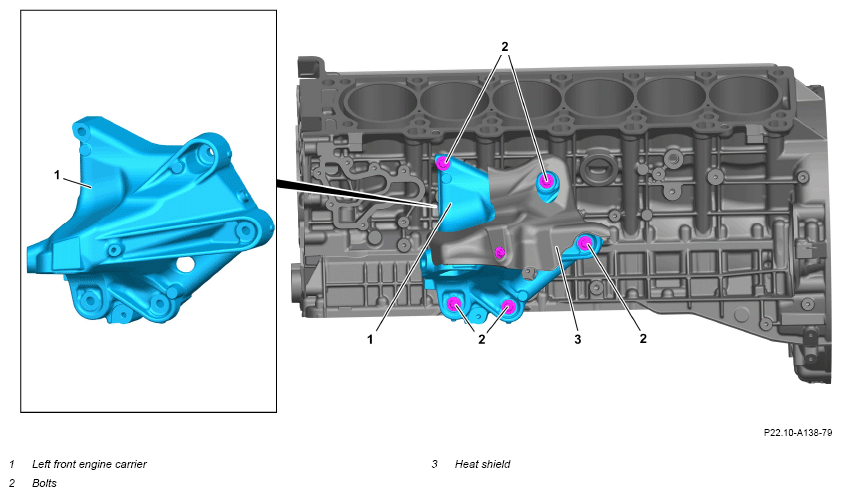

| 8 | Unscrew screws (2) and remove left front engine carrier (1) with engine mount. | *BA22.10-P-1001-02A | |
| 9 | Remove left front engine mount. | When replacing left front engine carrier (1). | |
with code M005 (Vehicles with 4MATIC/all-wheel drive) Screw front engine mount to engine support |
*BA22.10-P-1002-03S | ||
| 10 | Remove heat shield (3). | When replacing left front engine carrier (1). |
*BA22.10-P-1003-02A |
| 11 | Install in the reverse order. |
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 279 | ||
|---|---|---|---|---|
| BA22.10-P-1001-02A | Bolt/nut, engine support to crankcase | Stage 1 | Nm | 20 |
| Stage 2 | ∠° | 90 | ||
ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)
| Number | Designation | Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) | |
|---|---|---|---|
| BA22.10-P-1001-03S | Screw front engine mount to front axle carrier | Nm | 30 |
ENGINE MOUNT, ENGINE SUPPORT (VEHICLE SIDE)
| Number | Designation | Model 223 with code M005 (Vehicles with 4MATIC/all-wheel drive) | ||
|---|---|---|---|---|
| BA22.10-P-1002-03S | Screw front engine mount to engine support | Stage 1 | Nm | 45 |
| Stage 2 | ∠° | 120 | ||
ENGINE SUPPORT (ENGINE SIDE)
| Number | Designation | Engine 279 | |
|---|---|---|---|
| BA22.10-P-1003-02A | Bolt, heat shield to engine support | Nm | 13 |
