Service Sheet For Service A (40,000 Km) Or Service B (80,000 Km) - AP00.20-D-1555TS

Model 907 with engine 642, 651

with code JI6 (Starting distance for maintenance interval 40,000 km)

Model 907.1/2/6 with engine 654.9

Customer.............................................

VIN/license plate number.............................................

Completion time/date.............................................

Notes/explanations.............................................

The following activities are hereby confirmed:

Completion of relevant service operations

Order number.............................................

Current mileage.............................................

Signature.............................................

A	B		Input condition not OK:
Completed
■	■

		Service reception
□	□	The complete reception report for service on the vehicle is available.	............... If no vehicle inspection dialog is possible in XENTRY Mobile (with mobile terminal/tablet), ↓ process reception report.	◦
			Model 907		AP00.20-D-0009TSC
			Model 907 To be performed by the Service Advisor (where market-specific conditions require). Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.		AP00.20-D-0009TS
		Brake system
□	□	Perform brake test and enter result in table	...............	◦	AP42.00-D-4290TS
		Vehicle exterior
	□	Check exterior lighting for proper operation.	...............	◦	AP82.10-D-8252TS
	□	Check headlamp range adjustment for proper operation.	...............	◦
□	□	Correct tire pressure, including spare whee and enter adjusted tire pressure into table.	...............		AP40.15-D-4060TS
		Vehicle interior
	□	Check windshield wipers, rear window wiper, windshield washer system and headlamp cleaning system for proper operation.	...............	◦	AP82.30-D-8252TS
□	□	Check seat belts, seat belt buckles and seat belt buckle extensions on driver's seat and front passenger seat for external damage and proper function.	............... If components are damaged, ↓ Replace damaged parts with new parts.	◦	AP91.40-D-9150TS
	□	Check first-aid kit (soft sided).	After obtaining special order. ............... Enter expiration date for first-aid kit (soft sided) here: ............... If the expiration date has been reached, exceeded or will be reached or exceeded within the next service interval, ↓ replace first-aid kit (soft sided). After obtaining special order.	◦
	□	Check water drain bores in floor area of sliding door.	............... With CODE T16 (Right sliding door) or with CODE T19 (Left sliding door)	◦	AP72.00-D-7254TS
		Engine compartment
□	□	Engine: Change oil and oil filter.	...............
			Engine 642, 651		AP18.00-D-0101TS
			Mercedes-Benz oil recommended. If engine oil of specification 228.51 (LT) with viscosity 5W30 is filled: ↓ Observe service information. Service Information: Starting distance/oil change interval Engine 642, 651		SI00.20-D-0053SG
□	□	Brake system: Check fluid level.	...............	◦	AP42.10-D-4210TS
	□	Power steering system: Check fluid level.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)	◦	AP46.00-D-4612TS
□	□	Windshield washer system: Check/correct fluid level	...............	◦	AP82.35-D-8210TS
	◦	Check poly-V-belt in visible area for wear and damage.	............... If poly-V-belt is damaged, ↓ replace poly-V belt. After obtaining special order.	◦	AP13.22-D-1351TS
	□	Check all visible parts in engine compartment for damage and leaks.	............... If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.	◦	AP00.20-D-0053TS
		Underside of vehicle
	□	Check all visible parts of vehicle underside for damage and leaks.	............... If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.	◦	AP00.20-D-0054TS
	□	Check tie rod and drag link ball joints for play, check boots.	............... If parts are damaged, ↓ determine cause and correct. After obtaining special order.	◦	AP46.00-S-4651E
	□	Check front axle and front axle joint.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.	◦	AP33.10-S-3358E
	□	Check propeller shaft and flex disks.	............... If components are damaged, ↓ determine cause and correct. After obtaining special order.	◦	AP41.10-S-4152E
	□	Check suspension struts or shock absorber springs and auxiliary rubber springs.	............... If components are damaged, ↓ determine cause and correct. After obtaining special order.	◦	AP32.25-S-3255E
□	□	Check tires for damage and crack formation, and enter result in table.	............... If tires are damaged, ↓ determine cause and correct. After obtaining special order.	◦	AP40.10-S-4051E

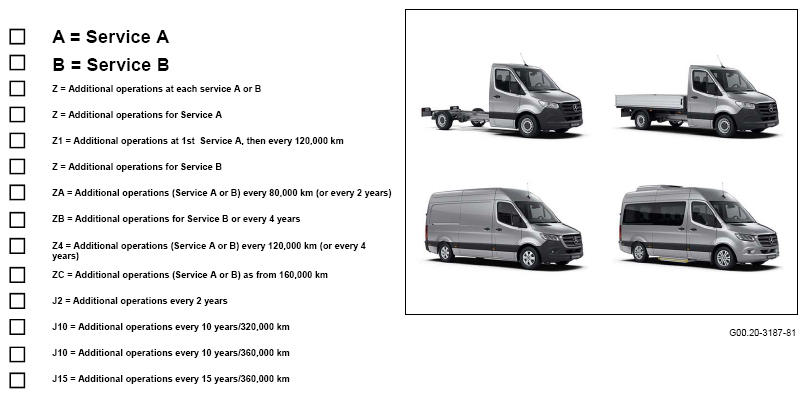

		External refueling Z = Additional operations at each service A or B
□	□	Fill up with AdBlue®.	............... After obtaining special order.		AP49.20-D-0101TS
		Underside of vehicle Z = Additional operations for Service A
□		Check air suspension bellows for damage.	............... with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged, ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.	◦
□		Check retarder.	............... With code O01 (Retarder retrofitted) or with code PB2 (Master code for VMC retarder)	◦	AP43.40-D-7107TS
		Engine compartment/vehicle interior Z = Additional operations for Service A
□		Auxiliary battery: Check/correct fluid level.	............... Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)	◦
□		Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	...............	◦
			Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
		Underside of vehicle Z1 = Additional operations at 1 st Service A, then every 120,000 km
□	□	Automatic transmission: Change oil and oil filter.	............... Transmission 722.9		AP27.00-D-2702TS
			Transmission 725.0 Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.15 or 236.17. Mercedes-Benz oil recommended.		AP27.00-D-2702TSC
□	□	Transfer case: Change oil.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.12. Mercedes-Benz oil recommended.		AP28.00-D-2801TSC
□	□	Front axle: Change oil.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 235.8. Mercedes-Benz oil recommended.		AP33.00-D-3301TSC
		Vehicle exterior Z = Additional operations for Service B
	□	Lubricate hinges of rear-end doors.	............... With code W54 (Rear-end door, two-wing, 270 degrees)		AP72.00-D-7225TS
	□	Lubricate trailer coupling.	............... With CODE Q20 (Trailer hitch (jaw-type))		AP00.20-D-0020TS
	□	Trailer coupling: Check function, play and mounting.	............... With CODE Q20 (Trailer hitch (jaw-type))	◦	AP31.10-D-3151TS
		Underside of vehicle Z = Additional operations for Service B
	□	Check air suspension bellows for damage.	............... with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged, ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.	◦
	□	Assess condition of brakepads and enter result in table.	............... Model 907 with super single tires or with twin tires Subject to separate repair order, remove/install rear wheels. If the brake pads have reached the wear limit, ↓ replace brake linings. After obtaining special order.	◦	AP42.10-D-4252TS
	□	Assess condition of brake disks.	............... Model 907 with super single tires or with twin tires Subject to separate repair order, remove/install rear wheels. If the brake disks have reached the wear limit or they are cracked, ↓ Replace brake disks. After obtaining special order.	◦	AP42.10-D-4256TS
	□	Check retarder.	............... With code O01 (Retarder retrofitted) or with code PB2 (Master code for VMC retarder)	◦	AP43.40-D-7107TS
		Vehicle interior Z = Additional operations for Service B
	□	Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	...............	◦
			Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
		Engine compartment/vehicle interior Z = Additional operations for Service B
	□	Auxiliary battery: Check/correct fluid level.	............... Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)	◦
		Engine compartment ZB = Additional operations for Service B or every 4 years
	□	Replace fuel filter.	............... Replace at least every 4 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP47.20-D-0780TS
		Vehicle interior ZA = Additional operations (Service A or B) every 80,000 km (or every 2 years)
□	□	Replace dust filter for heater/ventilation.	............... With CODE H81 (Ventilation system with filter) Replace after 2 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP83.00-D-8381TS
□	□	Replace activated charcoal particle filter for air conditioning system.	............... With code HH4 (THERMOTRONIC automatic air conditioning) or with code HH9 (TEMPMATIC semi-automatically regulated air conditioning) Replace after 2 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP83.00-D-8381TS
□	□	Replace dust filter for roof-mounted air conditioning system.	............... With code H08 (Roof-mounted air conditioning system, uprated) or with code HH7 (Roof-mounted air conditioning system, basic) or with code HK4 (Rear air conditioning system, uprated)		AP83.50-D-8386TS
		Engine compartment Z4 = Additional operations (Service A or B) every 120,000 km (or every 4 years)
□	□	Replace air filter element.	............... Replace at the latest after 120,000 km or after 4 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB! Air filter insert replaced ___ Yes ___ No.	◦	AP09.10-D-0980TS
		Vehicle interior ZC = Additional operations (Service A or B) as from 160,000 km
□	□	Diesel particulate filter (DPF): Check volumetric efficiency.	............... Note the installation date; refer to the confirmations in the maintenance booklet or DSB! DPF replaced ___ Yes ___ No.	◦	AP49.20-D-0004TS
		Engine compartment J2 = Additional operations every 2 years
□	□	Hydraulic brake system: Replace brake fluid.			AP42.00-D-4280TS
		Underside of vehicle J10 = Additional operations every 10 years/320,000 km
□	□	Rear axle: Change oil.	............... Rear axle 741.4 Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.31. Mercedes-Benz oil recommended.		AP35.00-D-3501TSR
		Underside of vehicle J10 = Additional operations every 10 years/360,000 km
□	□	Manual transmission: Change oil.	............... Transmission 711.6, 700.790 Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 235.3 or 235.10. Mercedes-Benz oil recommended.		AP26.00-D-2605TS
□	□	Engine compartment J15 = Additional operations every 15 years/360,000 km Replace coolant.	............... Pay attention to composition of coolant!		AP20.00-D-2080TS

BRAKE VALUES IN KN

	Left	Right
Front
Rear
Parking brake

Remaining brake lining thickness approx. in mm
	Left	Right
front
Rear

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK.
Condition not OK.

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare wheel
bar/psi
