Automatic Transmission Fluid & Oil Filter Change - AP27.00-D-2702TSC
Transmission 725.0 in model 907
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 |
Remove automatic transmission oil pan with automatic transmission oil filters. | AR27.10-D-7031TSC | |

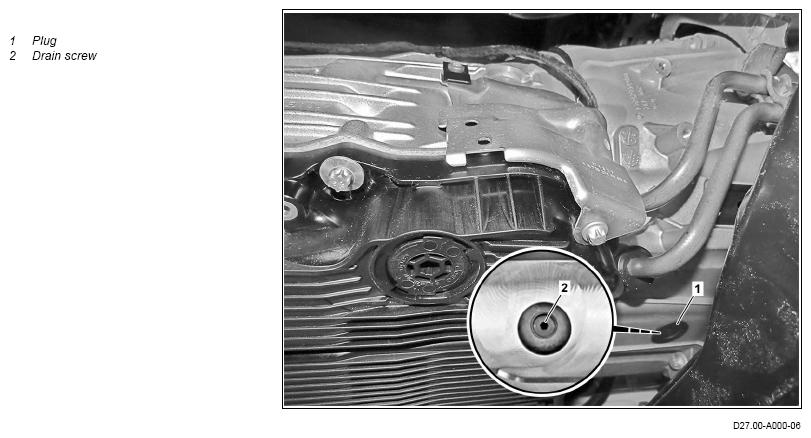

| 2 | Remove stop plug (1). | ||
| 3 | Turn torque converter until drain screw (2) appears. | ||
| Draining | |||
| 4 | Unscrew drain screw (2), drain transmission oil and collect in order to determine transmission oil quantity. | Collect the drained transmission oil in a suitable container in order to measure the oil filling quantity. Damage can otherwise occur. Dispose of old drain screw (2). Otherwise, this may lead to leakage and consequential damage. |
|
| Clean | |||
| 5 | Clean drain opening on torque converter. | ||
| Install | |||
| 6 | Tighten new drain screw (2). | Replace drain screw (2). Otherwise, this may lead to leakage and consequential damage. |
|
| *BA27.20-P-1002-01D | |||
| 7 | Install stop plug (1). | ||
| 8 |
Install new automatic transmission oil pan with automatic transmission oil filters. | AR27.10-D-7031TSC |
| Number | Designation | Transmission 725.0 in model 907 | |
|---|---|---|---|
| BA27.20-P-1002-01D | Drain screw to torque converter | Nm | 10 |
