Replace Air Cleaner For Rear Air Conditioning System - AP83.50-D-8386TS

Model 907

with code H08 (Roof-mounted air conditioning system, reinforced)

Model 907

with code HH7 (Roof-mounted air conditioning system, basic)

Model 907

with code HK4 (Rear air conditioning, reinforced)

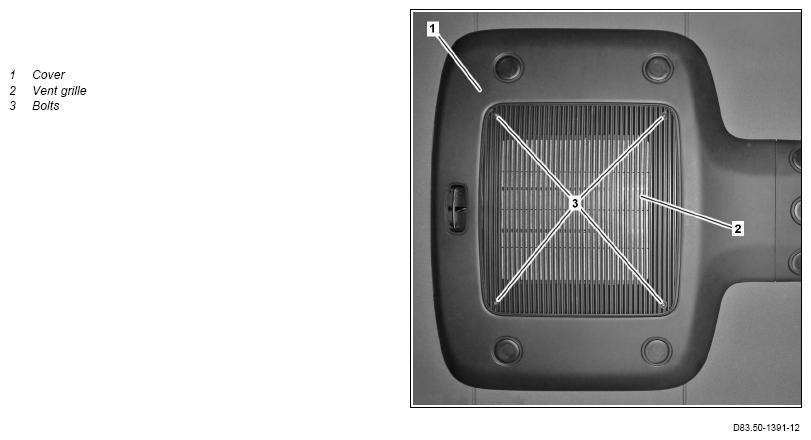

Shown with code HK4 (Rear A/C, uprated)

	Remove/install
1	Remove vent grille (2) from trim (1).	To do so, remove bolts (3).
2	Remove dust filter.	Ensure correct seating.
3	Install in the reverse order.
