Service Sheet For Service A (20,000 Mi) Or Service B (40,000 Mi) - AP00.20-D-1558TS

Model 907 with engine 642, 651

with code JI9 (Starting distance for maintenance interval 20,000 miles)

with code ZU8 (National version for USA)

Customer.............................................

VIN/license plate number.............................................

Completion time/date.............................................

Notes/explanations.............................................

The following activities are hereby confirmed:

Completion of relevant service operations

Order number.............................................

Current mileage.............................................

Signature.............................................

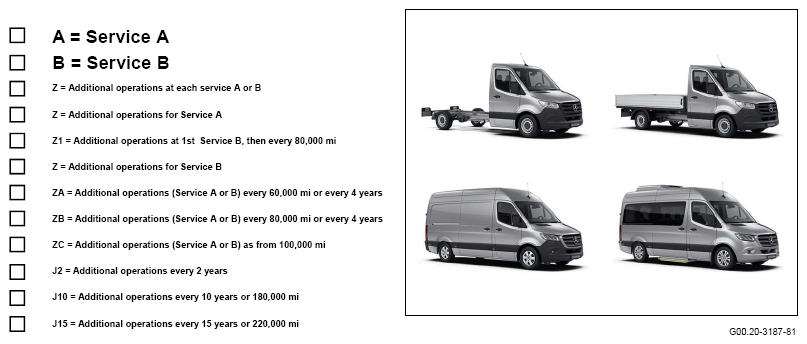

A	B		Input condition not OK:	ⓧ
Completed
■	■

		Service reception
□	□	The complete reception report for service on the vehicle is available.	............... If no vehicle inspection dialog is possible in XENTRY Mobile (with mobile terminal/tablet), ↓ process reception report. Model 907	◦	AP00.20-D-0009TSC
			Model 907 To be performed by the Service Advisor (where market-specific conditions require). Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.		AP00.20-D-0009TS
		Brake system
□	□	Perform brake test and enter result in table.	...............		AP42.00-D-4290TS
		Vehicle exterior
	□	Check exterior lighting for proper operation.	...............	◦
	□	Check headlamp range adjustment for proper operation.	...............	◦	AP82.10-D-8252TS
□	□	Correct tire pressure, including spare whee and enter adjusted tire pressure into table.	...............	◦	AP40.15-D-4060TS
		Vehicle interior
	□	Check windshield wipers, rear window wiper, windshield washer system and headlamp cleaning system for proper operation.	...............	◦	AP82.30-D-8252TS
□	□	Check seat belts, seat belt buckles and seat belt buckle extensions on driver's seat and front passenger seat for external damage and proper function.	............... If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.	◦	AP91.40-D-9150TS
	□	Check first-aid kit (soft sided).	............... Enter expiration date for first-aid kit (soft sided) here:............... If the expiration date has been reached, exceeded or will be reached or exceeded within the next service interval, ↓ replace first-aid kit (soft sided). After obtaining special order.	◦
	□	Check water drain bores in floor area of sliding door.	............... With CODE T16 (Right sliding door) or with CODE T19 (Left sliding door)	◦	AP72.00-D-7254TS
		Engine compartment
□	□	Engine: Change oil and oil filter.	............... Engine 642, 651		AP18.00-D-0101TS
□	□	Brake system: Check fluid level.	Mercedes-Benz oil recommended. ...............	◦	AP42.10-D-4210TS
	□	Power steering system: Check fluid level.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)	◦	AP46.00-D-4612TS
□	□	Windshield washer system: Check/correct fluid level.	...............	◦	AP82.35-D-8210TS
	□	Check poly-V-belt in visible area for wear and damage.	............... If poly-V-belt is damaged, ↓ replace poly-V belt.	◦	AP13.22-D-1351TS
	□	Check all visible parts in engine compartment for damage and leaks.	After obtaining special order. ............... If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.	◦	AP00.20-D-0053TS
		Underside of vehicle
	□	Check all visible parts of vehicle underside for damage and leaks.	............... If fluid loss or damage is present, ↓ determine cause and correct.	◦	AP00.20-D-0054TS
	□	Check tie rod and drag link ball joints for play, check boots.	After obtaining special order. ............... If parts are damaged, ↓ determine cause and correct.	◦	AP46.00-S-4651E
	□	Check front axle and front axle joint.	After obtaining special order. ............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) If fluid loss or damage is present, ↓ determine cause and correct.	◦	AP33.10-S-3358E
	□	Check propeller shaft and flex disks.	After obtaining special order. ............... If components are damaged, ↓ determine cause and correct.	◦	AP41.10-S-4152E
	□	Check suspension struts or shock absorber springs and auxiliary rubber springs.	After obtaining special order. ............... If components are damaged, ↓ determine cause and correct.	◦	AP32.25-S-3255E
	□	Check tires for damage and crack formation, and enter result in table.	After obtaining special order. ............... If tires are damaged, ↓ determine cause and correct. After obtaining special order.	◦	AP40.10-S-4051E
		External refueling Z = Additional operations at each service A or B
□	□	Fill up with AdBlue®.	............... After obtaining special order.		AP49.20-D-0101TS
		Underside of vehicle Z = Additional operations for Service A
□		Check air suspension bellows for damage.	............... with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged, ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.	◦
		Engine compartment/vehicle interior Z = Additional operations for Service A
□		Replace fuel filter.	............... Replace at latest every 2 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP47.20-D-0780TS
□		Auxiliary battery: Check/correct fluid level.	............... Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)	◦
□		Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	............... Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.	◦
		Underside of vehicle Z1 = Additional operations at 1 st Service B, then every 80,000 mi
□	□	Automatic transmission: Change oil and oil filter.	...............
			Transmission 722.9		AP27.00-D-2702TS
			Transmission 725.0 Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.15 or 236.17. Mercedes-Benz oil recommended.		AP27.00-D-2702TSC
□	□	Transfer case: Change oil.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) Oil quality to be used: Specifications for Operating Fluids Sheet 236.12. Mercedes-Benz oil recommended.		AP28.00-D-2801TSC
□	□	Front axle: Change oil.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) Oil quality to be used: Specifications for Operating Fluids Sheet 235.8. Mercedes-Benz oil recommended.		AP33.00-D-3301TSC
		Vehicle exterior Z = Additional operations for Service B
	□	Lubricate hinges of rear-end doors.	............... With code W54 (Rear-end door, two-wing, 270 degrees)		AP72.00-D-7225TS
		Vehicle interior Z = Additional operations for Service B
	□	Replace dust filter for heater/ventilation.	............... With CODE H81 (Ventilation system with filter) Replace at latest after 2 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP83.00-D-8381TS
	□	Replace activated charcoal particle filter for air conditioning system.	............... With code HH4 (THERMOTRONIC automatic air conditioning) or with code HH9 (TEMPMATIC semi-automatically regulated air conditioning) Replace at latest after 2 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP83.00-D-8381TS
	□	Replace dust filter for roof-mounted air conditioning system.	............... With code H08 (Roof-mounted air conditioning system, uprated) or with code HH7 (Roof-mounted air conditioning system, basic) or with code HK4 (Rear air conditioning system, uprated)		AP83.50-D-8386TS
	□	Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	............... Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.	◦	AP91.40-D-9150TS
		Engine compartment/vehicle interior Z = Additional operations for Service B
	□	Replace fuel filter.	............... Replace at latest every 2 years. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP47.20-D-0780TS
	□	Auxiliary battery: Check/correct fluid level.	............... Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)	◦
		Underside of vehicle Z = Additional operations for Service B
	□	Check air suspension bellows for damage.	............... with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged, ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.	◦
	□	Assess condition of brake pads and enter result in table.	............... Model 907 with super single tires or with twin tires ◦ Subject to separate repair order, remove/install rear wheels. If the brake pads have reached the wear limit, ↓ replace brake linings. After obtaining special order.	◦	AP42.10-D-4252TS
	□	Assess condition of brake disks.	............... Model 907 with super single tires or with twin tires Subject to separate repair order, remove/install rear wheels. If the brake disks have reached the wear limit or they are cracked, ↓ Replace brake disks. After obtaining special order.	◦	AP42.10-D-4256TS
			Model 907 with super single tires or with twin tires Subject to separate repair order, remove/install rear wheels. If the brake disks have reached the wear limit or they are cracked, ↓ Replace brake disks. After obtaining special order.		AP42.10-D-4256TS
		Engine compartment ZA = Additional operations (Service A or B) every 60,000 mi or every 4 years
□	□	Replace air filter element.	............... Note the installation date; refer to the confirmations in the maintenance booklet or DSB! Air filter insert replaced ___ Yes ___ No.		AP09.10-D-0980TS
		Engine compartment ZB = Additional operations (Service A or B) every 80,000 mi or every 4 years
□	□	replace poly-V belt.	............... Engine 642		AR13.22-D-1202TSV
			Engine 651		AR13.22-D-1202TSR
		Vehicle interior ZC = Additional operations (Service A or B) as from 100,000 mi
□	□	Diesel particulate filter (DPF): Check volumetric efficiency.	...............	◦	AP49.20-D-0004TS
		Engine compartment J2 = Additional operations every 2 years
□	□	Hydraulic brake system: Replace brake fluid.	...............		AP42.00-D-4280TS
		Underside of vehicle J10 = Additional operations every 10 years or 180,000 mi
□	□	Rear axle: Change oil.	............... Rear axle 741.4 Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.31. Mercedes-Benz oil recommended.		AP35.00-D-3501TSR
		Engine compartment J15 = Additional operations every 15 years or 220,000 mi
□	□	Replace coolant.	............... Pay attention to composition of coolant!		AP20.00-D-2080TS

BRAKE VALUES IN KN

	Left	Right
Front
Rear
Parking brake

Remaining brake lining thickness approx. in mm
	Left	Right
front
Rear

TIRE CONDITION

	Right front	Left front	Right rear	Left rear
Condition OK.
Condition not OK.

SET TIRE PRESSURE IN BAR OR PSI

	Front axle	Rear axle	Spare wheel
bar/psi
