Service Sheet For Service A (20,000 Km) Or Service B (40,000 Km) - AP00.20-D-1552TSD

Model 907 with engine 651

with code J1W (Maintenance interval 1 year)

with code JI3 (Starting distance for maintenance interval 20,000 km)

Customer....................................................

License plate number..........................................

Date.........................................................

Order number.................................................

Current mileage...............................................

Signature....................................................

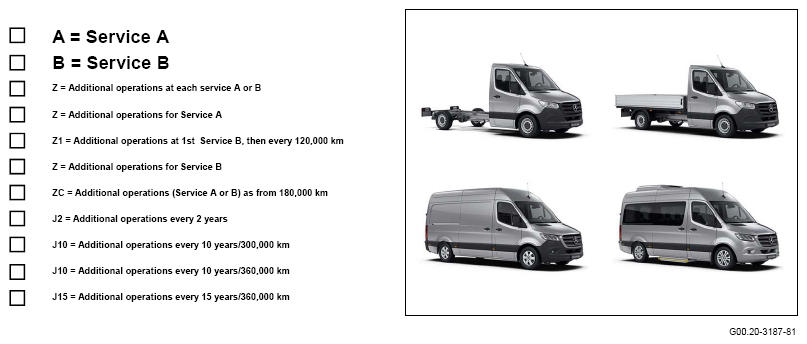

A	B		Input condition not OK:	ⓧ
Completed
■	■
		Service reception
□	□	The complete reception report for service on the vehicle is available.	...............	◦
			If no vehicle inspection dialog is possible in XENTRY Mobile (with mobile terminal/tablet),
			↓
			process reception report. Model 907		AP00.20-D-0009TSC
			Model 907		AP00.20-D-0009TS
			To be performed by the Service Advisor  (where market-specific conditions require). Fully process all acceptance items and the maintenance items listed in the service sheet, only then is the service scope completely performed.
		Brake system
□	□	Perform brake test and enter result in table	...............	◦	AP42.00-D-4290TS
		Vehicle exterior
	□	Check exterior lighting for proper operation	...............	◦
					AP82.10-D-8252TS
	□	Check headlamp range adjustment for proper operation.	...............	◦
□	□	Correct tire pressure, including spare wheel and enter adjusted tire pressure into table.			AP40.15-D-4060TS
		Vehicle interior
	□	Check windshield wipers, rear window wiper, windshield washer system and headlamp cleaning system for proper operation.	...............	◦
□	□	Check seat belts, seat belt buckles and seat belt buckle extensions on driver's seat and front passenger seat for external damage and proper function.	...............	◦	AP82.30-D-8252TS
			If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
	□	Check first-aid kit (soft sided). Enter expiration date for first-aid kit (soft sided) here:	...............	◦
	□	Check water drain bores in floor area of sliding door.	...............	◦
			With CODE T16 (Right sliding door) or with CODE T19 (Left sliding door)		AP72.00-D-7254TS
		Engine compartment
□	□	Engine: Change oil and oil filter.	...............
			Engine 651		AP18.00-D-0101TS
□	□	Brake system: Check fluid level.	...............	◦
	□	Power steering system: Check fluid level.	............... With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)	◦	AP42.10-D-4210TS
□	□	Windshield washer system: Check/correct fluid level	...............	◦	AP46.00-D-4612TS
					AP82.35-D-8210TS
	□	Check poly-V-belt in visible area for wear and damage.	...............	◦
					AP13.22-D-1351TS
			If poly-V-belt is damaged, ↓ replace poly-V belt. After obtaining special order.
	□	Check all visible parts in engine compartment for damage and leaks.	...............	◦
					AP00.20-D-0053TS
			If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.
		Underside of vehicle
	□	Check all visible parts of vehicle underside for damage and leaks.	...............	◦
					AP00.20-D-0054TS
			If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.
	□	Check tie rod and drag link ball joints for play, check boots.	...............	◦
			If parts are damaged, ↓ determine cause and correct. After obtaining special order.		AP46.00-S-4651E
	□	Check front axle and front axle joint.	...............	◦
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) If fluid loss or damage is present, ↓ determine cause and correct. After obtaining special order.		AP33.10-S-3358E
	□	Check propeller shaft and flex disks.	...............	◦
					AP41.10-S-4152E
			If components are damaged, ↓ determine cause and correct. After obtaining special order.
	□	Check suspension struts or shock absorbe springs and auxiliary rubber springs.	...............	◦
					AP32.25-S-3255E
			If components are damaged, ↓ determine cause and correct. After obtaining special order.
□	□	Check tires for damage and crack formation, and enter result in table.	...............	◦
					AP40.10-S-4051E
			If tires are damaged, ↓ determine cause and correct. After obtaining special order.
		External refueling  Z = Additional operations at each service A or B
□	□	Fill up with AdBlue®.	...............
			After obtaining special order.		AP49.20-D-0101TS
		Engine compartment  Z = Additional operations at each service A or B
□	□	Replace air filter element.	...............	◦
			Note the installation date; refer to the confirmations in the maintenance booklet or DSB! Air filter insert replaced_____Yes_____No.		AP09.10-D-0980TS
□	□	Replace fuel filter.	...............
			Note the installation date; refer to the confirmations in the maintenance booklet or DSB!		AP47.20-D-0780TS
		Underside of vehicle  Z = Additional operations for Service A
□		Check air suspension bellows for damage.	...............	◦
			with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged. ↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.
		Engine compartment/vehicle interior  Z = Additional operations for Service A
□		Auxiliary battery: Check/correct fluid level.	...............	◦
			Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)
□		Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	...............	◦
			Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
		Underside of vehicle  Z1 = Additional operations at 1 st Service B, then every 120,000 km
□	□	Automatic transmission: Change oil and oil filter.	...............
			Transmission 722.9		AP27.00-D-2702TS
			Transmission 725.0		AP27.00-D-2702TSC
			Oil quality to be used: Specifications for Operating Fluids (BeVo), Sheet 236.15 or 236.17. Mercedes-Benz oil recommended.
□	□	Transfer case: Change oil.	...............
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction) Oil quality to be used: Specifications for Operating Fluids, sheet 236.12. Mercedes-Benz oil recommended.		AP28.00-D-2801TSC
□	□	Front axle: Change oil.	...............
			With code ZG1 (Engageable all-wheel drive) or with code ZG3 (Engageable all-wheel drive with gear reduction)		AP33.00-D-3301TSC
			Oil quality to be used: Specifications for Operating Fluids, sheet 235.8. Mercedes-Benz oil recommended.
		Vehicle exterior  Z = Additional operations for Service B
	□	Lubricate hinges of rear-end doors.	...............
			With code W54 (Rear-end door, two-wing, 270 degrees)		AP72.00-D-7225TS
	□	Lubricate trailer coupling.	...............
			With CODE Q20 (Trailer hitch (jaw-type))		AP00.20-D-0020TS
	□	Trailer coupling: Check function, play and mounting.	...............	◦
			With CODE Q20 (Trailer hitch (jaw-type))		AP31.10-D-3151TS
		Vehicle interior  Z = Additional operations for Service B
	□	Check seat belts, seat belt buckles and seat belt buckle extensions in the rear passenger compartment for external damage and proper function.	...............	◦
			Model 907 If components are damaged, ↓ Replace damaged parts with new parts. After obtaining special order.		AP91.40-D-9150TS
		Engine compartment/vehicle interior  Z = Additional operations for Service B
	□	Auxiliary battery: Check/correct fluid level.	...............	◦
			Only if fleece battery not installed. With code E2I (Auxiliary battery for retrofit consumer, interior) or with code E2M (Auxiliary battery for retrofit consumer, engine compartment)
		Vehicle interior  Z = Additional operations for Service B
	□	Replace dust filter for heater/ventilation.	...............
			With CODE H81 (Ventilation system with filter)		AP83.00-D-8381TS
			Replace after 2 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!
	□	Replace activated charcoal particle filter fo air conditioning systems	...............
			With code HH4 (THERMOTRONIC automatic air conditioning) or with code HH9 (TEMPMATIC semi-automatically regulated air conditioning)		AP83.00-D-8381TS
			Replace after 2 years at the latest. Note the installation date; refer to the confirmations in the maintenance booklet or DSB!
	□	Replace dust filter for roof-mounted air conditioning systems	...............
			With code H08 (Roof-mounted air conditioning system, uprated) or with code HH7 (Roof-mounted air conditioning system, basic) or with code HK4 (Rear air conditioning system, uprated)		AP83.50-D-8386TS
		Underside of vehicle  Z = Additional operations for Service B
	□	Check air suspension bellows for damage.	...............	◦
			with code CB2 (Air suspension comfort suspension) If air suspension bellows are damaged.
			↓ Determine cause, rectify it and replace damaged parts. After obtaining special order.
	□	Assess condition of brakepads and enter result in table.	...............	◦
			Model 907 with super single tires or with twin tires
					AP42.10-D-4252TS
			Subject to separate repair order, remove/install rear wheels. If the brake pads have reached the wear limit, ↓ replace brake linings.
			After obtaining special order.
	□	Assess condition of brake disks.	...............	◦
			Model 907 with super single tires or with twin tires
					AP42.10-D-4256TS
			Subject to separate repair order, remove/install rear wheels. If the brake disks have reached the wear limit or they are cracked, ↓ Replace brake disks.
			After obtaining special order.
	□	Check retarder.	...............	◦
			With code O01 (Retarder retrofitted) or with code PB2 (Master code for VMC retarder)		AP43.40-D-7107TS
		Vehicle interior  ZC = Additional operations (Service A or B) as from 180,000 km
□	□	Diesel particulate filter (DPF): Check volumetric efficiency.	...............	◦
			Note the installation date; refer to the confirmations in the maintenance booklet or DSB! DPF replaced _____Yes_____No.		AP49.20-D-0004TS
		Engine compartment  J2 = Additional operations every 2 years
□	□	Hydraulic brake system: Replace brake fluid.	...............
					AP42.00-D-4280TS
		Underside of vehicle  J10 = Additional operations every 10 years/300,000 km
□	□	Rear axle: Change oil.	...............
			Rear axle 741.4		AP35.00-D-3501TSR
			Oil quality to be used: Specifications for Operating Fluids, sheet 236.31. Mercedes-Benz oil recommended.
		Underside of vehicle  J10 = Additional operations every 10 years/360,000 km
□	□	Manual transmission: Change oil.	...............
			Transmission 711.6, 700.790 Oil quality to be used: Specifications for Operating Fluids, Sheet 235.3 or 235.10. Mercedes-Benz oil recommended.		AP26.00-D-2605TS
		J15 = Additional operations every 15 years/360,000 km
□	□	Replace coolant.	...............
			Pay attention to composition of coolant!		AP20.00-D-2080TS
