Overview Of Exterior Lights System Components - GF82.10-P-9998LF
Model 217, 222

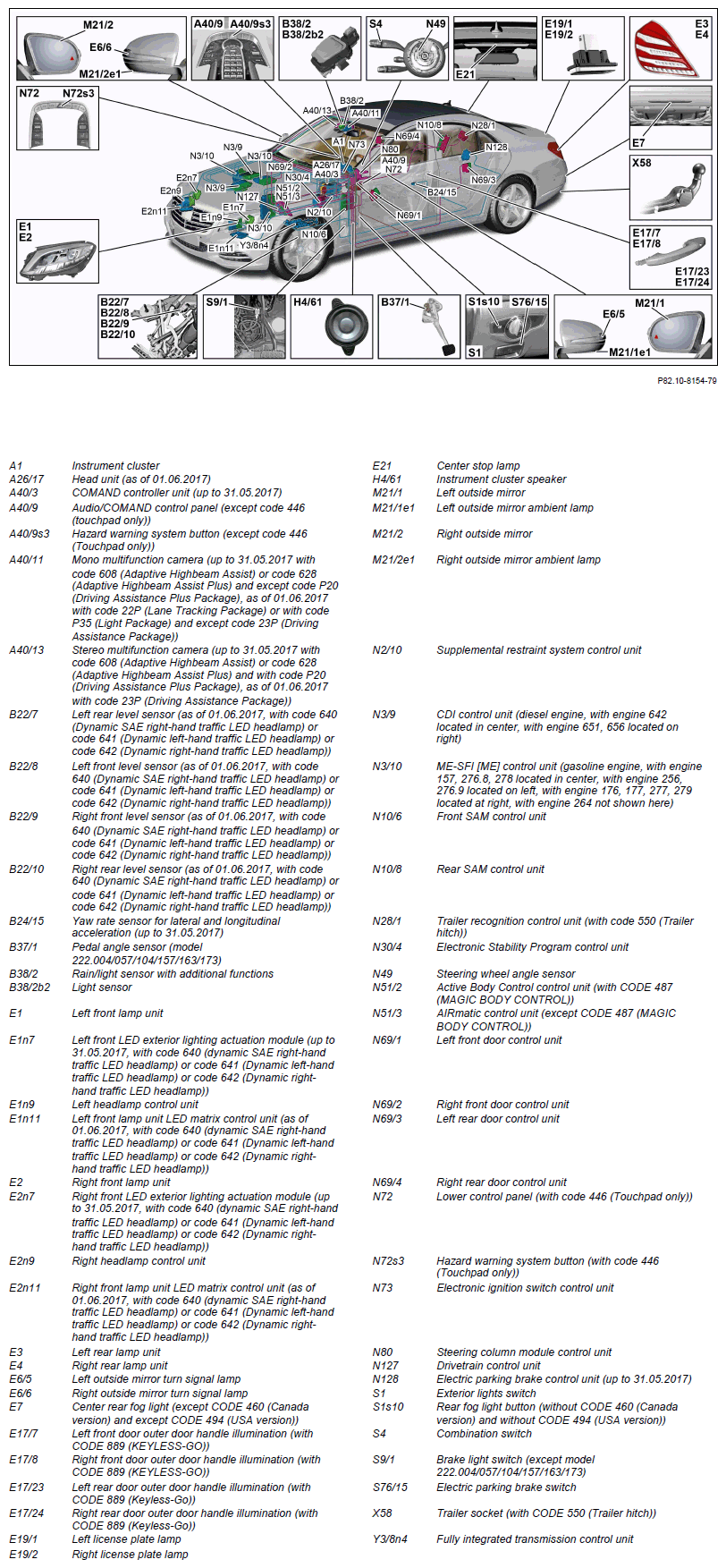

Model 222, shown is model 222 up to 31.05.2017

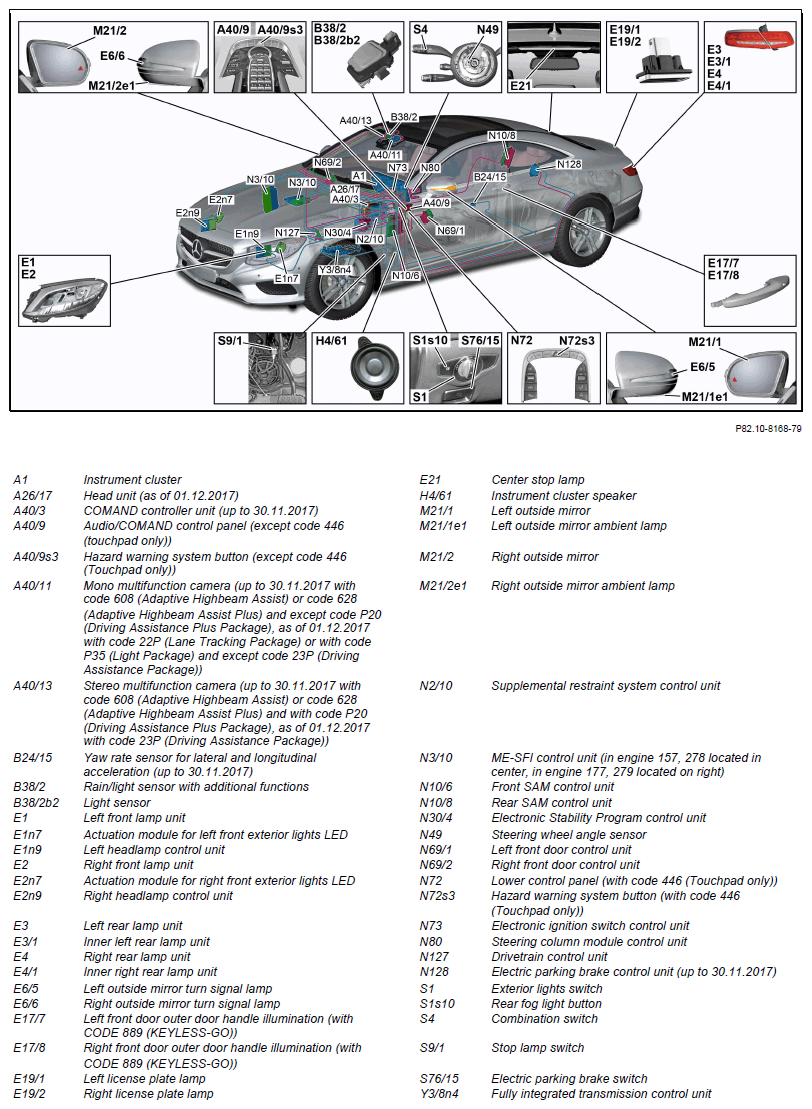

Model 217, shown is model 217 up to 30.11.2017

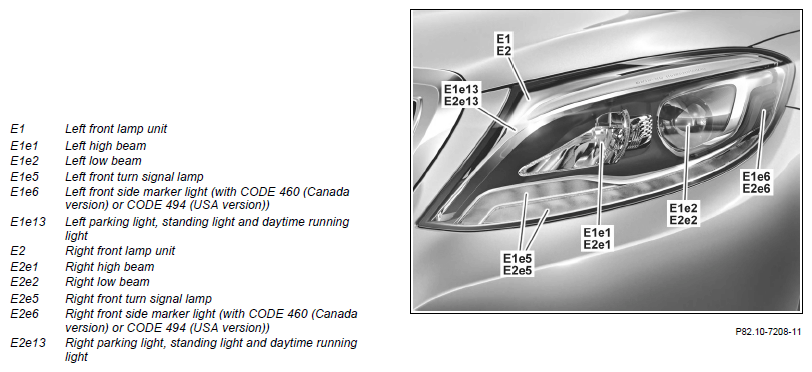

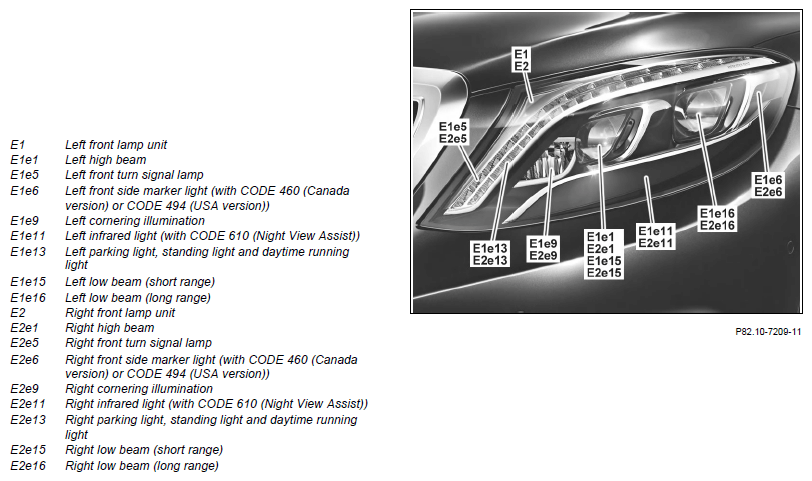

Front lamp unit (except CODE 640 (Dynamic SAE right-hand traffic LED headlamp) and except CODE 641 (Dynamic left-hand traffic LED headlamp) and except CODE 642 (Dynamic right-hand traffic LED headlamp)), shown in model 222 with CODE 460 (Canada version) or CODE 494 (USA version)
Front lamp unit, model 217 and model 222 up to 31.05.2017, with code 640 (Dynamic SAE right-hand traffic LED headlamp) or code 641 (Dynamic left-hand traffic LED headlamp) or code 642 (Dynamic right-hand traffic LED headlamp), shown is model 222 with code 460 (Canada version) or code 494 (USA version) and code 610 (Night View Assist)
The following components are not shown:
- Left active curve lights position sensor (E1b1)
- Left light distribution position sensor (E1b2) (with CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
- Left headlamp range adjustment actuator motor (E1m1)
- Left active curve illumination actuator motor (E1m2)
- Left light distribution actuator motor (E1m3) (with CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
- Fan motor 1 for left front lamp unit (E1m4)
- Fan motor 2 for left front lamp unit (E1m5)
- Right active curve lights position sensor (E2b1)
- Right light distribution position sensor (E2b2) (with CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
- Right headlamp range adjustment actuator motor (E2m1)
- Right active curve illumination actuator motor (E2m2)
- Right light distribution actuator motor (E2m3) (with CODE 641 (Dynamic left-hand traffic LED headlamp) or CODE 642 (Dynamic right-hand traffic LED headlamp))
- Fan motor 1 for right front lamp unit (E2m4)
- Fan motor 2 for right front lamp unit (E2m5)

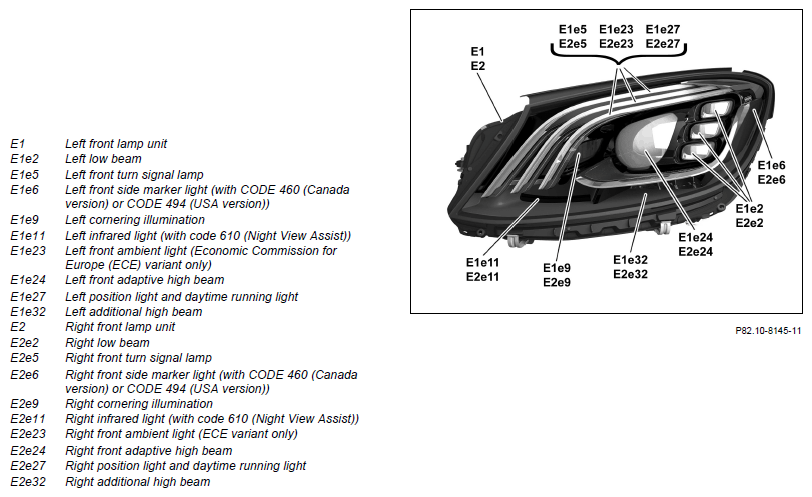

Front lamp unit, model 222 as of 01.06.2017, with code 640 (Dynamic SAE right-hand traffic LED headlamp) or code 641 (Dynamic left-hand traffic LED headlamp) or code 642 (Dynamic right-hand traffic LED headlamp), shown is model 222 with code 460 (Canada version) or code 494 (USA version) and code 610 (Night View Assist)
Model 222 as of 01.06.2017

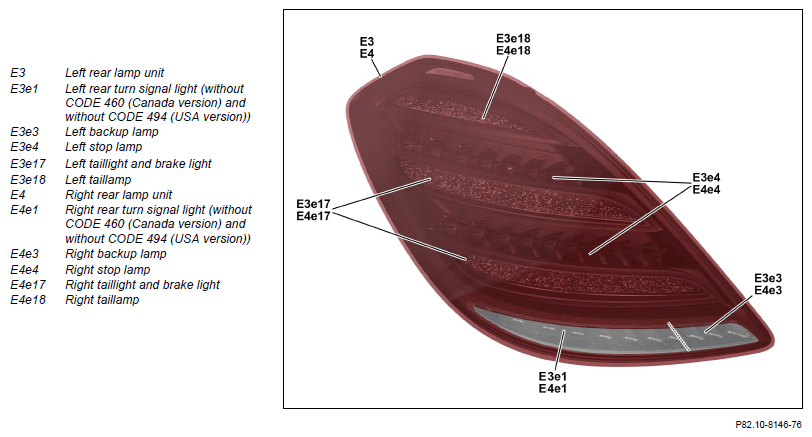

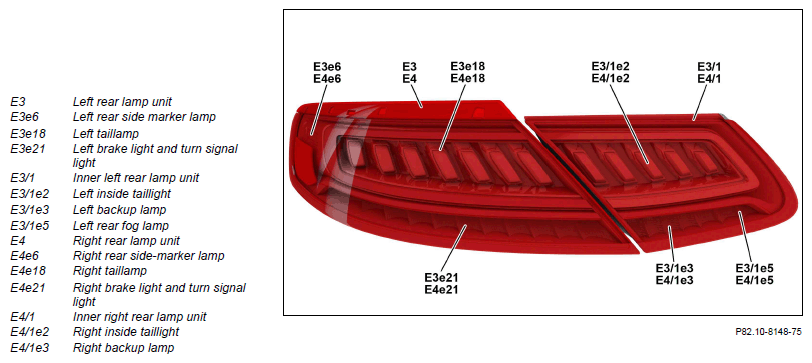

Rear lamp unit, model 222 up to 31.05.2017

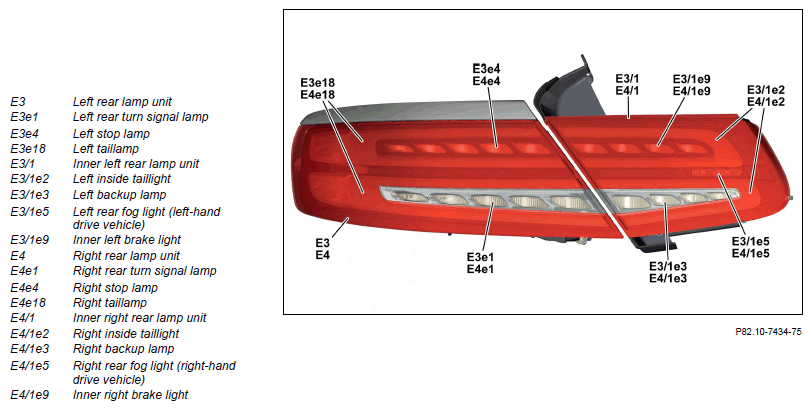

Rear lamp unit, model 217 as of 01.12.2017 except code 460 (Canada version) and except code 494 (USA version)

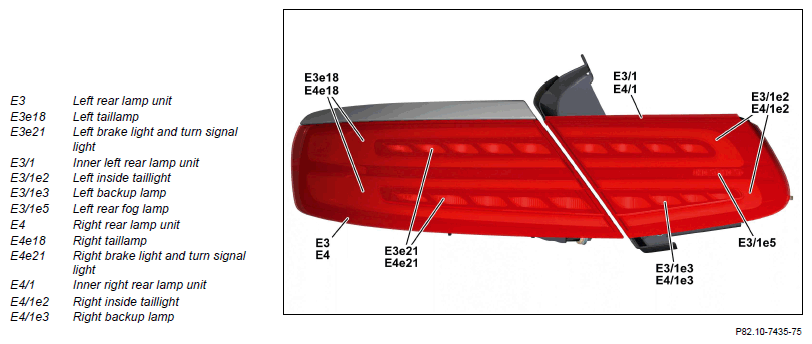

Rear lamp unit, model 217 as of 01.12.2017 with code 460 (Canada version) or code 494 (USA version)

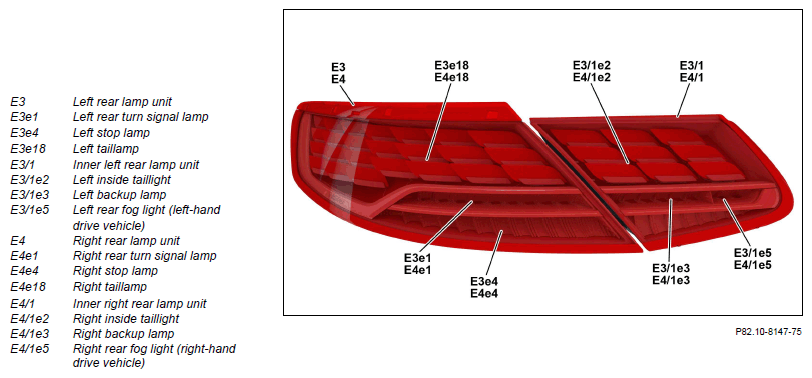

Rear lamp unit, model 217 up to 30.11.2017 except code 460 (Canada version) and except code 494 (USA version)
Rear lamp unit, model 217 up to 30.11.2017 with code 460 (Canada version) or code 494 (USA version)
| Component description for instrument cluster | Model 217, 222 as of model year 2018 A1 |
GF54.30-P-6000LFM | |
| Model 217, 222 up to model year 2018 A1 |
GF54.30-P-6000LF | ||
| Head unit, component description | Model 217, 222 as of model year 2018 A26/17 |
GF82.85-P-3140LFM | |
| Component description for COMAND controller unit | Model 217, 222 up to model year 2018 A40/3 |
GF82.85-P-3136LF | |
| Component description for Audio/COMAND control panel | Model 217, 222 as of model year 2018 with code 448 (Touchpad) A40/9 |
GF54.21-P-4501LFM | |
| Model 217, 222 up to model year 2018 A40/9 |
GF54.21-P-4501LF | ||
| Component description for multifunction camera | Model 217, 222 as of model year 2018 with code 22P (Lane tracking package) Model 217, 222 as of model year 2018 with code 23P (Driving Assistance package) Model 217, 222 as of model year 2018 with code P35 (Light Package) A40/11, A40/13 |
GF54.21-P-3300LFM | |
| Model 217, 222 up to model year 2018 with code 608 (Adaptive Highbeam Assist) Model 217, 222 up to model year 2018 with code 628 (Adaptive Highbeam Assist Plus) Model 217, 222 up to model year 2018 with code P20 (Driving Assistance package Plus) A40/11, A40/13 |
GF54.21-P-3300LF | ||
| Component description for yaw rate sensor for lateral and longitudinal acceleration | Model 217, 222 up to model year 2018 B24/15 |
GF42.45-P-4810LF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005LF | |
| Actuation module, LED exterior lighting, front, component description | Model 217 Model 222 up to model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Model 222 up to model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 up to model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n7, E2n7 |
GF82.10-P-2160LF | |
| Headlamp control unit, component description | Model 222 as of model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Model 222 as of model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 as of model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020LFM | |
| Model 217 Model 222 except code 640 (SAE dynamic LED headlamps, right-hand traffic) except code 641 (Dynamic LED headlamps, left-hand traffic) except code 642 (Dynamic LED headlamps, right-hand traffic) Model 222 up to model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Model 222 up to model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 up to model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n9, E2n9 |
GF82.10-P-2020LF | ||
| Front LED matrix lamp unit control unit, component description | Model 222 as of model year 2018 with code 640 (SAE dynamic LED headlamps, right-hand traffic) Model 222 as of model year 2018 with code 641 (Dynamic LED headlamps, left-hand traffic) Model 222 as of model year 2018 with code 642 (Dynamic LED headlamps, right-hand traffic) E1n11, E2n11 |
GF82.10-P-2025LF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080LF | |
| Component description for CDI control unit | Model 222 with engine 642.8 N3/9 |
GF07.16-P-6000OGS | |
| Model 222 with engine 651.9 N3/9 |
GF07.16-P-6000OLA | ||
| Model 222 with engine 656.9 N3/9 |
GF07.16-P-6000OIA | ||
| Component description for ME-SFI (ME) control unit | Model 222 with engine 276.9 N3/10 |
GF07.61-P-6000MMK | |
| Model 217, 222 with engine 157.9, 278.9 N3/10 |
GF07.61-P-6000MML | ||
| Model 222 with engine 276.8 N3/10 |
GF07.61-P-6000MMT | ||
| Model 217 with engine 279 Model 222 with engine 277, 279 N3/10 |
GF07.61-P-6000MUB | ||
| Model 217 with engine 176.9, 177.9 Model 222 with engine 176.9, 177.9 N3/10 |
GF07.61-P-6000MNL | ||
| Model 222 with engine 256.9 N3/10 |
GF07.61-P-6000MRT | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010LF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030LF | |
| Component description for trailer recognition control unit | Model 222 with code 550 (Trailer coupling) N28/1 |
GF31.19-P-4050LF | |
| Component description for Electronic Stability Program control unit | Model 222.173 as of model year 2018 N30/4 |
GF42.45-P-5119LFA | |
| Model 217, 222 (except 222.173) as of model year 2018 N30/4 |
GF42.45-P-5119LFM | ||
| Model 217, 222 (except 222.004/057/104/157/163) up to model year 2018 N30/4 |
GF42.45-P-5119LF | ||
| Model 222.004/057/104/157/163 up to model year 2018 N30/4 |
GF42.45-P-5119LFH | ||
| ABC control unit, component description | Model 217, 222 with code 487 (MAGIC BODY CONTROL) N51/2 |
GF32.50-P-4501LF | |
| AIRMATIC control unit, component description | N51/3 | GF32.22-P-5110LF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001LF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009LF | |
| Component description for rear door control unit | Model 222 N69/3, N69/4 |
GF72.29-P-6021LF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001LF | |
| Component description for steering column tube module control unit | Model 217, 222 as of model year 2018 N80 |
GF54.21-P-6051LFM | |
| Model 217, 222 up to model year 2018 N80 |
GF54.21-P-6051LF | ||
| Drivetrain control unit, component description | Model 217 with engine 176.9, 177.9 Model 217, 222 (except 222.163/173) with engine 157.9, 276.8, 277, 278.9, 279 Model 222 with engine 176.9, 177.9, 256.9, 264.9 N127 |
GF54.21-P-2141LF | |
| Model 222 with engine 276.9 Model 222.163 with engine 276.8 N127 |
GF54.21-P-2141MMK | ||
| Model 222 with engine 642.8 N127 |
GF54.21-P-2141OGS | ||
| Model 222 with engine 656.9 N127 |
GF54.21-P-2141OIA | ||
| Model 222 with engine 651.9 N127 |
GF54.21-P-2141OLA | ||
| Electric parking brake control unit, component description | Model 217, 222 up to model year 2018 N128 |
GF42.20-P-5005LF | |
| Component description for fully integrated transmission control unit | Model 222 with transmission 724.2 up to model year 2018 Y38n4 |
GF27.60-P-5165LFH | |
| Model 217, 222 with transmission 722.9 (except 722.931/932/971) Y38n4 |
GF27.60-P-5165AHB | ||
| Model 217, 222 with transmission 722.931/971 Y38n4 |
GF27.60-P-5165AHD | ||
| Model 217, 222 with transmission 722.932 Y38n4 |
GF27.60-P-5165AHY | ||
| Model 217, 222 with transmission 725.0 (except 725.017/066/096) Y38n4 |
GF27.60-P-5165AND | ||
| Table of contents for function description of exterior lights | GF82.10-P-0999LF |
