B-Pillar Complete Replacement - Ar63.20-P-1350S

Model 223.0/1

Model 223.9

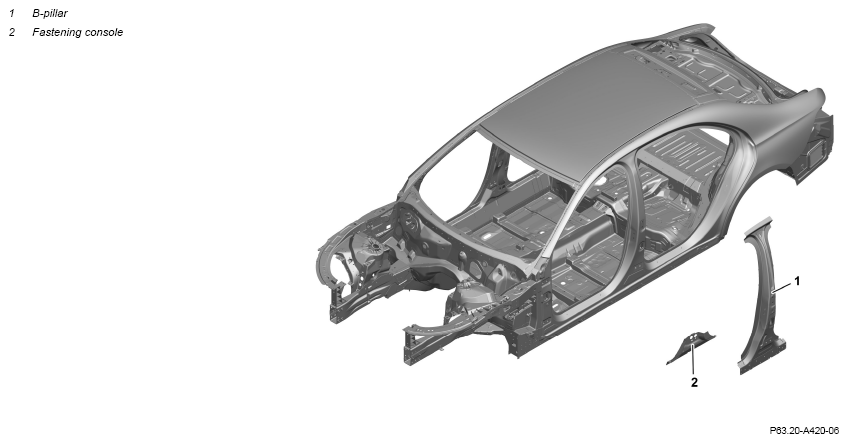

Fig 1: Center Pillar And Center Pillar Fastening Console Component Locations (Model 223.0/1/9)
G16191763DANGERDANGERWARNINGCAUTIONREMOVINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSINSTALLINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses, and protective gloves.
Use a suitable, grounded dust extraction system.
AS60.00-Z-0007-01N
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice General information on body repair   AH60.00-P-0001-01S
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
Notice General information on crack diagnosis of aluminum parts   AH60.00-P-0014-01N
  General information on repair of vehicles with ultra-strength steels.   AH60.00-P-0024-01N
  Note on working on aluminum components and vehicles   AH60.00-P-0034-01RG
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blanket.
3 Set up straightening bench with straightening bench support members and straightening set.
REFER TO SPECIAL TOOLS 000 588 50 23 00 Body straightening system   WS60.00-P-0439K
4 Place vehicle on straightening bench and fasten.
5 Remove B-pillar paneling.   AR63.20-P-1222S
6 Cut off B-pillar (1).   AR63.20-P-1350-05S
REFER TO SPECIAL TOOLS 000 588 04 39 00 Rivet press tool   WS60.00-P-0440B
REFER TO SPECIAL TOOLS 000 588 03 39 00 Rivet die   WS60.00-P-0386K
7 Remove mounting console (2) If mounting console (2) is damaged.
      AR63.20-P-1350-10S
INSTALLING Install
  General information on riveting   AH60.00-P-0003-01S
8 Prepare mounting support (2). If mounting console (2) is damaged.
      AR63.20-P-1350-11S
9 Prepare B-pillar (1).   AR63.20-P-1350-07S
10 Install mounting support (2). If mounting console (2) is damaged.
      AR63.20-P-1350-12S
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) *BR00.45-Z-1016-13A
11 Install B-pillar (1).   AR63.20-P-1350-09S
REFER TO SPECIAL TOOLS 000 588 04 39 00 Rivet press tool   WS60.00-P-0440B
REFER TO SPECIAL TOOLS 000 588 03 39 00 Rivet die   WS60.00-P-0386K
REFER TO SPECIAL TOOLS 000 588 50 23 00 Body straightening system   WS60.00-P-0439K
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1043-13A
    Flow-form rivet with countersunk head X4 4 mm to 5.15 mm *BR00.45-Z-1073-13A
    Flow-form rivet with countersunk head X5 5.0 mm to 6.1 mm *BR00.45-Z-1074-13A
12 Release vehicle from straightening bench, lift and remove straightening bench.
13 Install B-pillar paneling.   AR63.20-P-1222S
14 Remove spark protection blankets.
15 Install all detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-13A Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1016-13A Blind rivet Y3 6.5x14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) A 004 990 17 97
BR00.45-Z-1043-13A Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) A 000 991 82 32
BR00.45-Z-1073-13A Flow-form rivet with countersunk head X4 4 mm to 5.15 mm A 000 991 49 02
BR00.45-Z-1074-13A Flow-form rivet with countersunk head X5 5.0 mm to 6.1 mm A 000 991 50 02
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
