B-Pillar Installation - Ar63.20-P-1350-09S

	000 588 04 39 00 Rivet press tool		WS60.00-P-0440B
	000 588 03 39 00 Rivet die		WS60.00-P-0386K

Model 223.0/1/9

Courtesy of MERCEDES-BENZ USA

Countersunk-head rivet (Z)

• Z₁ = countersunk-head rivet 6.4x14.0
• Z₂ = countersunk-head rivet 6.4x15.5
• Z₃ = countersunk-head rivet 6.4x17.0
• Z₄ = countersunk-head rivet 6.4x19.0
• Z₅ = countersunk-head rivet 6.5x21.0

Blind rivet (Y)

• Y₁ = blind rivet 6.4x12.0
• Y₂ = blind rivet 6.5x12.5
• Y₃ = blind rivet 6.5x14.5
• Y₄ = blind rivet 6.4 M6
• Y₅ = blind rivet 6.4
• Y₆ = blind rivet 6.5X13.5
• Y₇ =blind rivet 6.4x14.0
• Y₈ =blind rivet 6.4x17.0
• Y₉ =Blind rivet 6.4x20

Flow-form rivet with countersunk head (X)

• X₁ = Flow-form rivet with countersunk head 1.3 mm to 2.5 mm clamping range
• X₂ = Flow-form rivet with countersunk head 2.3 mm to 3.5 mm clamping range
• X₃ = Flow-form rivet with countersunk head 3.35 mm to 4.1 mm clamping range
• X₄ = Flow-form rivet with countersunk head 4 mm to 5.15 mm clamping range
• X₅ = Flow-form rivet with countersunk head 5.0 mm to 6.1 mm clamping range
• X₆ = Flow-form rivet with countersunk head 6.0 mm to 7.2 mm clamping range
• X₇ = Flow-form rivet with countersunk head 7.1 mm to 8.3 mm clamping range

Flow-form rivet (W)

• W₁ = Flow-form rivet structure with 3.5 mm clamping range
• W₃ = Flow-form rivet structure 3.35 mm up to 4.1 mm clamping range
• W₄ = Flow-form rivet structure 4 mm up to 5.15 mm clamping range
• W₅ = Flow-form rivet structure 5.0 mm up to 6.1 mm clamping range
• W₆ = Flow-form rivet structure 6.0 mm up to 7.2 mm clamping range
• W₇ = Flow-form rivet structure 7.1 mm up to 8.3 mm clamping range

Blind rivet (V)

• V1 = rivet 3.2x4.5
• V2 = rivet 3.2x6.5

Blind rivet (U)

• U1 = rivet 3.2x9.5

Blind rivet with countersunk head (T)

• T1 = Blind rivet with countersunk head with 3.0 mm to 5.0 mm clamping range
• T2 = Blind rivet with countersunk head with 1.5 mm to 3.0 mm clamping range

The following steps are shown on model 223.1 on the left side of the vehicle and must be similarly performed on the right side of the vehicle in the event of damage.

The superordinate service document as well as the safety information in the service document must be observed.

The graphics show the vehicle from the mechanic's perspective. At the same time, this perspective also specifies the direction in which the rivets must be placed.

Courtesy of MERCEDES-BENZ USA

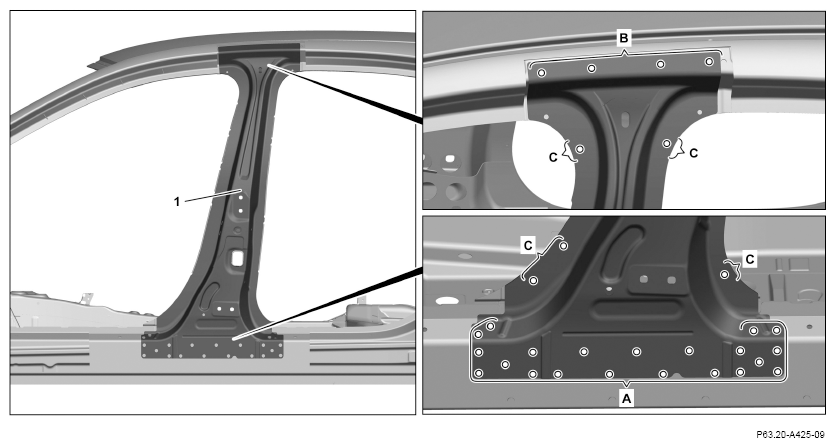

1. Install B-pillar (1) with the side portal frame and portal straightener, fit and fix in place.

   Use spacers.

2. Drill rivet holes in the B-pillar (1) with Ø 6.7 mm (areas A, B).

   Drill rivet holes through existing holes in the B-pillar (1) (area A).

3. Countersink rivet holes (area A).
4. Punch rivet holes in B-pillar (1) with Ø 6.0 mm with rivet press tool (areas C).
5. Remove B-pillar (1) and the portal straightener.
6. Deburr rivet holes in B-pillar (1) and in the body on both sides.
7. Remove drilling chips.

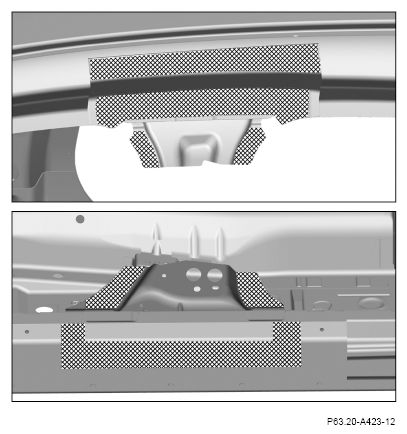

8. Apply 2-component adhesive to body in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

9. Install B-pillar (1) with the side portal frame and portal straightener and fix in place.

   Use spacers.

10. Rivet B-pillar (1) with Ø 6.5x12.5 rivets (area Y₂ ).
11. Rivet B-pillar (1) with Ø 6.4x14.0 countersunk-head rivets (area Z₁ ).
12. Rivet B-pillar (1) with flow-form rivets with countersunk head 4.0 mm to 5.15 mm clamping range (areas X₄ ).
13. Rivet B-pillar (1) with flow-form rivets with countersunk head 5.0 mm to 6.1 mm clamping range (areas X₅ ).
