Outer B-Pillar Panel Removal And Installation - Ar63.20-P-1222S

Model 223.0/1/9

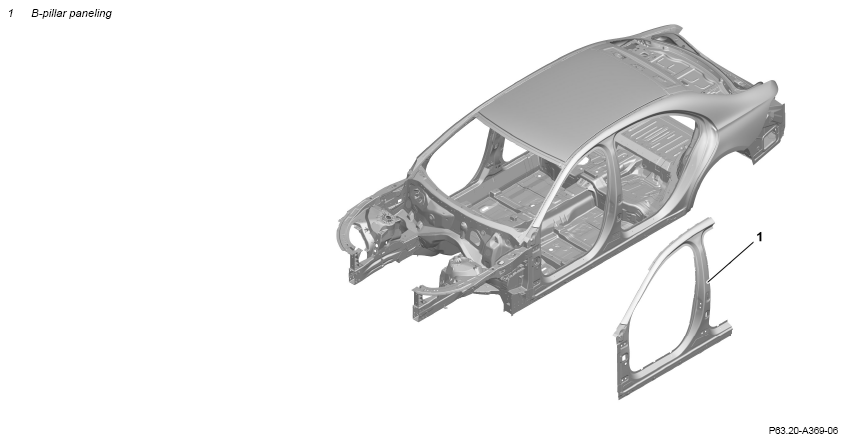

Fig 1: Outer B-Pillar Panel Component Location (Model 223.0/1/9)
G16191761DANGERDANGERWARNINGCAUTIONREMOVINGREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSINSTALLINGDANGERREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of explosion  from aluminum grinding dust, risk of injury to respiratory system from inhaling dust Wear dust filter mask, safety glasses, and protective gloves.
Use a suitable, grounded dust extraction system.
AS60.00-Z-0007-01N
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice General information on body repair   AH60.00-P-0001-01S
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
Notice General information on crack diagnosis of aluminum parts   AH60.00-P-0014-01N
  Note on working on aluminum components and vehicles   AH60.00-P-0034-01RG
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blanket.
3 Remove B-pillar paneling (1).   AR63.20-P-1222-01S
REFER TO SPECIAL TOOLS 000 588 04 39 00 Rivet press tool   WS60.00-P-0440B
REFER TO SPECIAL TOOLS 000 588 03 39 00 Rivet die   WS60.00-P-0386K
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01S
  General notes on welding   AH60.00-P-0005-01N
4 Prepare B-pillar paneling (1).   AR63.20-P-1222-02S
5 Install B-pillar paneling (1) and fit.
6 Carry out common cuts in B-pillar paneling (1) and in the body.
7 Remove B-pillar paneling (1).
8 Prepare weld puddle retainer.   AR60.00-P-0070-01S
9 Install B-pillar paneling (1).   AR63.20-P-1222-03S
REFER TO SPECIAL TOOLS 000 588 04 39 00 Rivet press tool   WS60.00-P-0440B
REFER TO SPECIAL TOOLS 000 588 03 39 00 Rivet die   WS60.00-P-0386K
    Make weld seam on vehicles with aluminum body AR60.00-P-0070-01S
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    Flow-form rivet structure W4 4 mm up to 5.15 mm clamping range (S3) *BR00.45-Z-1028-13A
    Flow-form rivet structure W5 5.0 mm up to 6.1 mm clamping range (S4) *BR00.45-Z-1029-13A
    Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Basic body filler *BR00.45-Z-1057-07A
10 Clean weld joints and sheet metal flange.
11 Remove spark protection blankets.
12 Clean repair area.
13 Prime repair area using primer filler
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal.
14 Seal seam after repair.   AR97.10-P-4000S
15 Paint repair areas and adjacent surfaces.
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting +   AH98.00-P-0003-01A
    IMPORTANT Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal.
16 Supplement cavity preservation.   AR97.20-P-1500S
17 Install all detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-13A Blind rivet Y2 6.5x12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1028-13A Flow-form rivet structure W4 4 mm up to 5.15 mm clamping range (S3) A 000 991 12 33
BR00.45-Z-1029-13A Flow-form rivet structure W5 5.0 mm up to 6.1 mm clamping range (S4) A 000 991 19 33
BR00.45-Z-1057-07A Basic body filler A 012 989 29 71
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
