Remove/Install Crossmember Under Instrument Panel - AR68.10-P-1120S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.### 1# with code 445 (head-up display with augmented reality)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.### 1# with code 445 (head-up display with augmented reality)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.### 1# with code 445 (head-up display with augmented reality)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.### 1# with code 445 (head-up display with augmented reality)

Courtesy of MERCEDES-BENZ USA

Shown on model 223.### 1# with code 445 (head-up display with augmented reality)

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove windshield wiper system.		AR82.30-P-0001S
2	Remove instrument panel.		AR68.10-P-1000S
3	Remove head-up display.	Model 223 with code 438 (Head-up display, Classic.) except code Z07 (B7 armoring on special protection version) Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version)	AR54.30-P-6400S
4	Remove steering column tube.		AR46.10-P-0400S
5	Remove fan for instrument cluster display.	Model 223 with code 200 (Conditionally automated driving) except code Z07 (B7 armoring on special protection version) Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) Model 223 with code 451 (3D combination display) except code Z07 (B7 armoring on special protection version)
			AR54.30-P-6017S
6	Remove ionizer.	Model 223 with code P21 (Air quality package) except code Z07 (B7 armoring on special protection version)
			AR83.40-P-0150S
7	Remove driver's side Wi-Fi antenna from instrument panel.		AR82.85-P-0023S
8	Disconnect electrical connector of left side air vent outlet air temperature sensor.		AR83.30-P-8095S
9	Disconnect electrical connector of right side air vent outlet air temperature sensor.		AR83.30-P-8096S

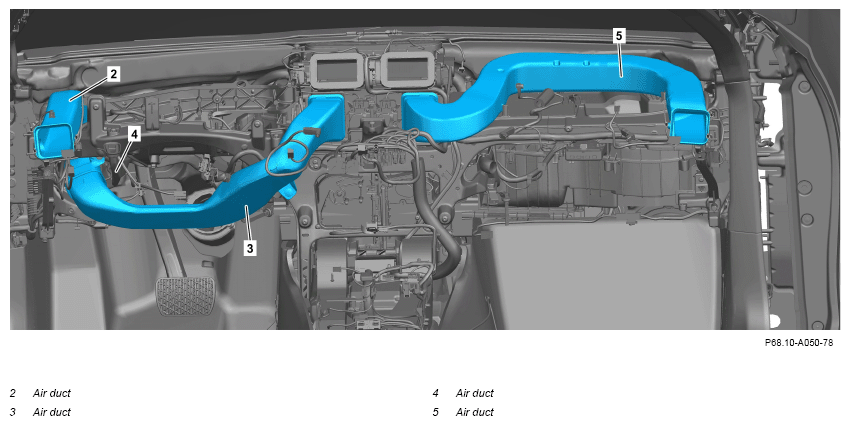

10	Remove air ducts (2, 3, 5).	Dismantling tool	Fig 1
11	Remove air duct (4).	Model 223 with code 200 (Conditionally automated driving) except code Z07 (B7 armoring on special protection version) Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) Model 223 with code 451 (3D combination display) except code Z07 (B7 armoring on special protection version)
		Dismantling tool	Fig 1

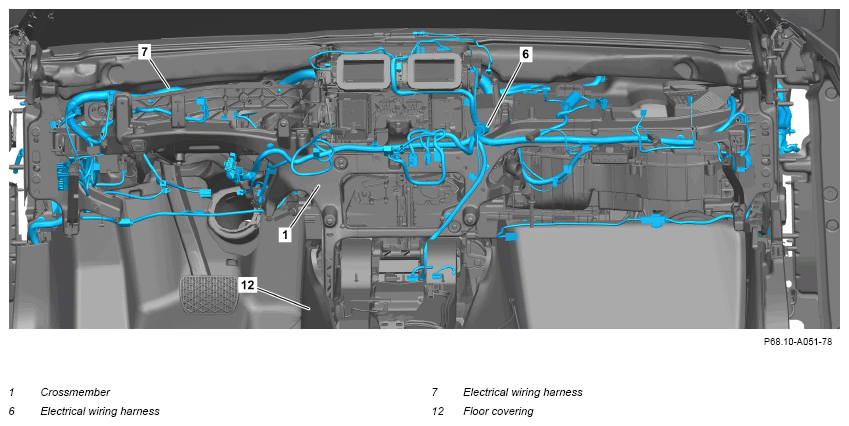

12	Disconnect all electrical connectors on electrical wiring harness (6) and remove electrical wiring harness (6) from crossmember (1).	Pay attention to installation position. Dismantling tool	Fig 1

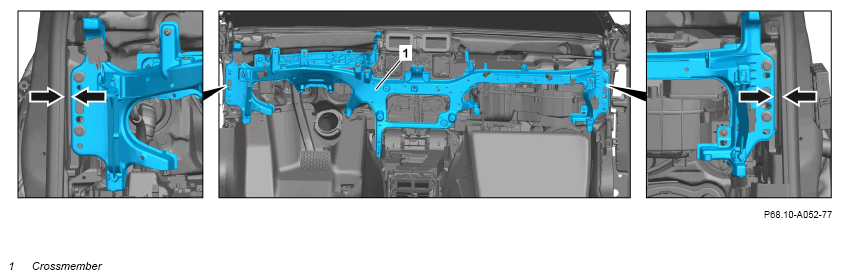

13	Mark installation position of the crossmember (1) relative to the A-pillars (arrows).

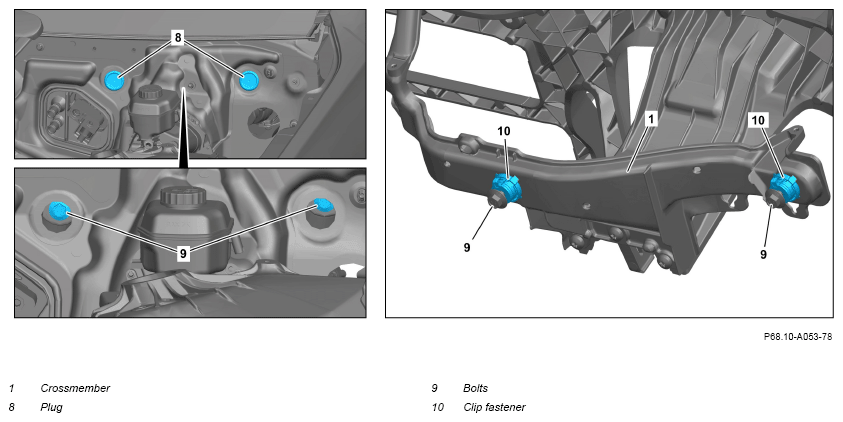

14	Remove stop plugs (8) and bolts (9).	Do not insert bolts (9) until crossmember (1) has been aligned. Otherwise, clip fasteners (10) and thus the installation position of crossmember (1) may shift. The number of bolts (9) and clip fasteners (10) may vary depending on the equipment variant.
		Screw/bolt, crossmember to firewall below windshield	*BA68.10-P-1002-02D

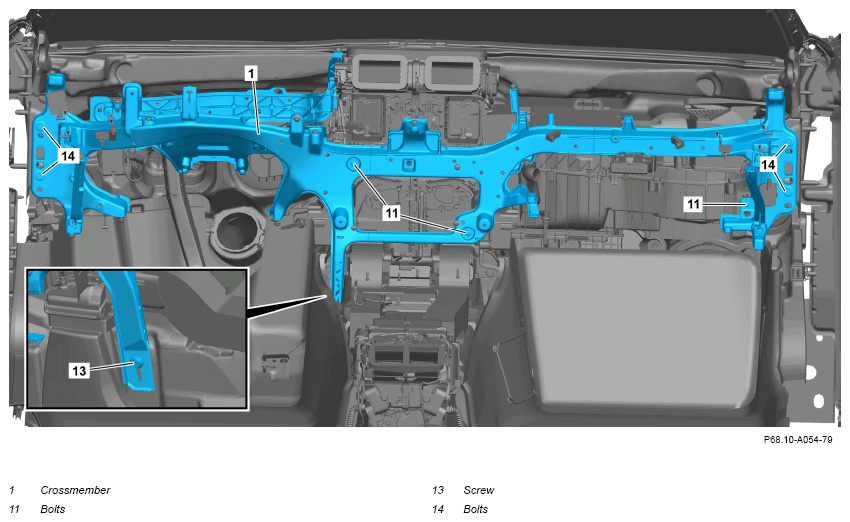

15	Remove screws (11).
16	Fold floor covering (12) in the driver footwell to one side and remove bolt (13).	Screw/bolt, crossmember strut to transmission tunnel	*BA68.10-P-1003-02D
17	Remove screws (14).	Screw/bolt, crossmember to A-pillar	*BA68.10-P-1001-02D
18	Pull crossmember (1) out rearward until electrical wiring harness (7) is accessible and expose it.	Model 223 with code 445 (Head-up display with augmented reality.) except code Z07 (B7 armoring on special protection version) Pay attention to installation position. Aid of helper required.
		Dismantling tool	Fig 1
19	Remove crossmember (1) from the vehicle.	Aid of helper required.
20	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
