Remove/Install Left Side Air Vent Air Outlet Air Temperature Sensor - AR83.30-P-8095S
Model 223
Shown on model 223.### 1# with code 445 (Head-up display with augmented reality)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000S | |

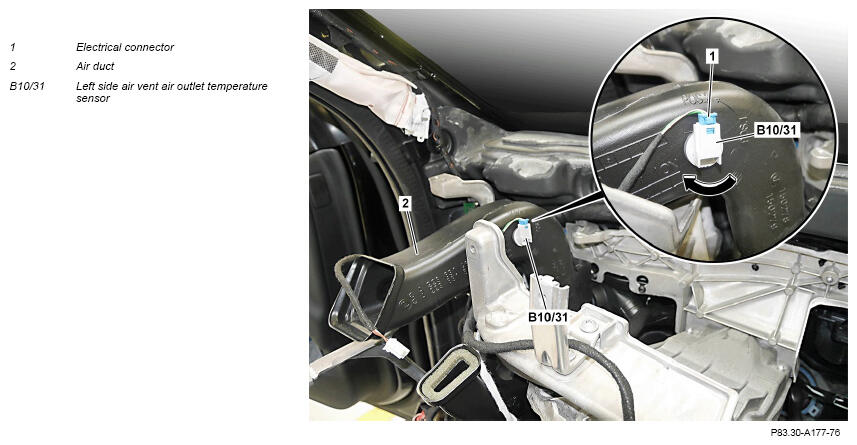

| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Turn left side air vent outlet air temperature sensor (B10/31) in direction of arrow and remove from air duct (2). | ||
| 4 | Install in the reverse order. |
