Remove/Install Right Side Air Vent Air Outlet Air Temperature Sensor - AR83.30-P-8096S
Model 223

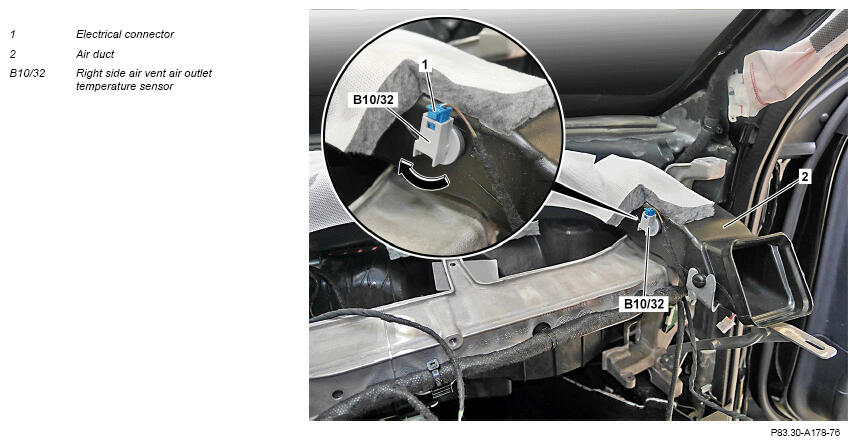

Shown on model 223.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000S | |
| 2 | Release electrical connector (1) and disconnect. | ||
| 3 | Turn right side air vent air outlet air temperature sensor (B10/32) in direction of arrow and remove from air duct (2). | ||
| 4 | Install in the reverse order. |
