Retrofit Telematics Services Communications Module - AN82.85-S-0016E

Model 447.6/7

with code JH6 (Pre-installation for communications module for digital services (LTE))

with code XM0 (Facelift)

except code XM7 (MOPF II)

Model 447.8 with engine 780

with code JH6 (Pre-installation for communications module for digital services (LTE))

with code XM0 (Facelift)

except code XM7 (MOPF II)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 447.8 with code EY3 (Communications module for Mercedes me connect services))

Notice	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment	Model 447 with engine 780	AH00.00-Z-0300-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on carrying out repair work in the vehicle interior		AH68.00-D-0001-01KOS
	Remove
1	Supplement special equipment in Vehicle Documentation (VeDoc).	Designation of affected special equipment: Code JH3 (Communication module (LTE) for digital services) and code EY5 (Mercedes-Benz emergency call system) and code EY6 (Breakdown Management). Remove existing code JH6 (Pre-installation for Com. Module for Dig. Services (LTE)). Correct selection of the separate parts during the parts process is only possible after the special equipment has been added in VeDoc.
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3.1	Remove front dome lamp.	MODEL 447.6/7 except CODE LC4 (Comfort overhead control panel) except CODE LD0 (Overhead control panel with two reading spots)
		Hand over removed front dome lamp to customer or dispose of properly after consultation with customer.	AR82.20-S-0110E
3.2	Remove front overhead control panel (OCP) control unit (N70).	Model 447.6/7 with code LC4 (Comfort overhead control panel), model 447.6/7 with code LD0 (Overhead control panel with two reading spots), model 447.8
		Hand over removed front overhead control panel (OCP) control unit (N70) to customer or dispose of properly after consultation with customer.	AR82.20-S-1100E
	Install

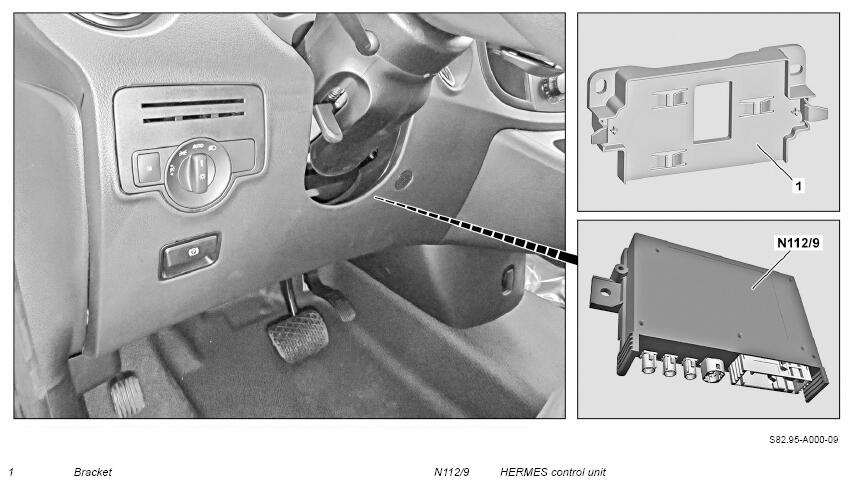

4	Retrofit telematics services communications module control unit with holder (1).	The telematics services communications module control unit is integrated in the HERMES control unit (N112/9). The HERMES control unit (N112/9) and the holder (1) are to be determined through the parts process, taking the respective special equipment of the vehicle into account.	AN82.85-S-0016-01E

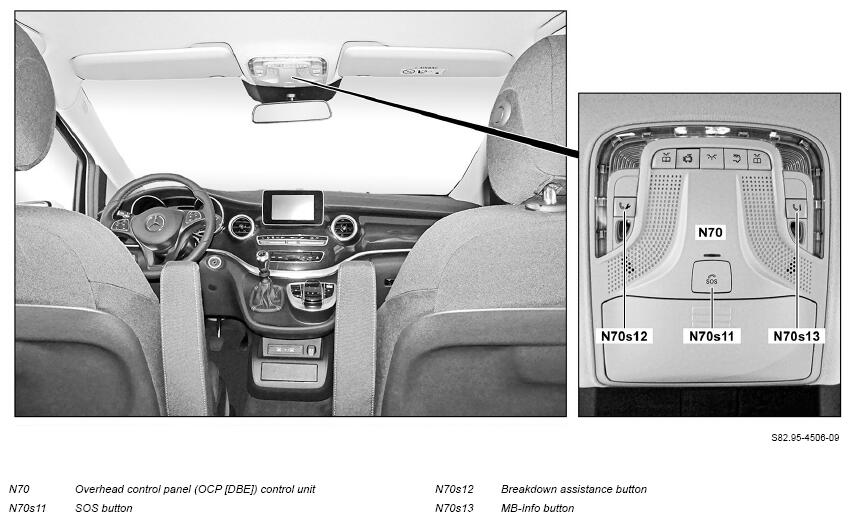

5	Install new overhead control panel (OCP) control unit (N70).
		The new overhead control panel (OCP) control unit (N70) must be determined through the parts process taking the respective special equipment of the vehicle into account.	AR82.20-S-1100E
6	Connect vehicle diagnosis system and read out fault memory.
			AD00.00-S-2000-04E
7	Perform SCN coding on instrument cluster (IC) control unit (A1/1).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
8	Perform SCN coding on radio (Audio) (N87/2) or on radio/radio navigation (N87/15) or on head unit (A26/17).
		Model 447.6/7 with code E3C (Audio 30) or with code EA4 (Audio 40) or with code EN6 (Audio 10) or with code EN7 (Audio 15), model 447.8 Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
9	Perform SCN coding on electronic ignition lock (EZS) control unit (N73).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
10	Run SCN coding on air conditioning system control and operating unit (KLA-V & KLA-H) (S98).
		Model 447 with code HH4 (THERMOTRONIC automatic climate control), model 447 with code HH9 (TEMPMATIC semi-automatically controlled air conditioning system) Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
11	Perform SCN coding on powertrain control unit
	(N127).	Model 447.6 with code M8E (Electric motor 85 kW/battery 60 kWh (usable)) model 447.7/8 with code ME4 (Electric motor 145 kW) Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
12	Perform SCN coding on Supplemental Restraint System (SRS) control unit (N2/18).	Model 447 except code S00 (Airbag control unit generation AB12)
		The operation steps must be performed exactly as per XENTRY Diagnosis Software. To do this, select the following menu items: Control units view → N2/18 - Supplemental Restraint System (SRS)→ Special procedures → Retrofitting of special equipment "code JH3 (Communication Module (LTE) for Digital Services)" Do not yet remove vehicle diagnosis system.	AR54.21-S-0015E
13	Perform commissioning of HERMES control unit (N112/9) using vehicle diagnosis system.
		Under the "Control unit adaptations" menu item, follow the instructions for "Commissioning". It is absolutely essential to precisely follow the operation steps as described in the vehicle diagnosis system. Do not yet remove vehicle diagnosis system.	AR54.21-S-0014E
	Check
14	Perform function test on telematics services communications module control unit using diagnostic system.	To do so, select following menu items: HERMES control unit (N112/9) → Actuations → Selftest
15	Disconnect vehicle diagnosis system.
