Remove/Install Sliding Door - AR72.16-S-1260E
Model 447, 448
Shown On Model 447.8 With Code T55 (Electrical actuation for right sliding door)
Shown On model 447.8 With Code VQ1 (AVANTGARDE)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Remove door sill molding | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
AR68.30-S-4100E |
| 2 | Remove side running board | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
AR88.30-S-2400E |

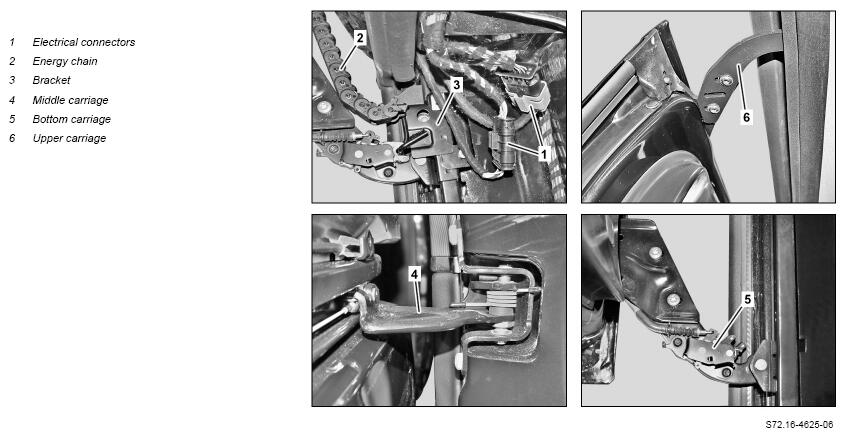

| 3 | Disconnect electrical connector (1) from power supply chain (2) | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
AR54.18-S-0001E |
| 4 | Remove holder (3) | Model 447.7/8, 448.8 with code SH8 (Window airbags for driver, front passenger and rear) Model 447.7/8, 448.8 with code T56 (Electric operation of sliding door on left) Model 447.7/8, 448 with code T55 (Electric operation of sliding door on right) Model 447.8, 448.8 with code E65 (Burmester® surround sound system) Model 447.8, 448.8 with code LC1 (ambient lighting) |
|
| 5 | Open sliding door (7) half way | ||

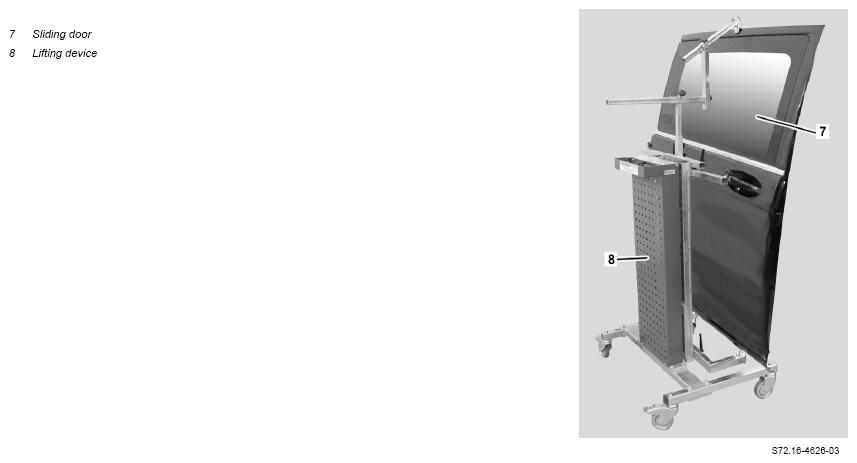

| 6 | Align lifting device (8) with sliding door (7) | ||
| 000 588 38 80 00 Holding device | WS72.00-P-0039B | ||
| 7 | Pick up sliding door (7) with lifting device (8) | ||
| 8 | Remove center carriage (4) from sliding door (7) | AR72.16-S-2230E | |
| 9 | Remove lower sliding carriage (5) for sliding door (7) | AR72.16-S-7844E | |
| 10 | Remove upper sliding carriage (6) for sliding door (7) | AR72.16-S-7842E | |
| 11 | Push sliding door (7) together with lifting device (8) out of working area | ||
| 12 | Disassemble sliding door (7) | When replacing sliding door (7). | AR72.16-S-2210E |
| 13 | Install in the reverse order. | ||
| Adjust | |||
| 14 | Adjust sliding door (7) | AR72.16-S-1023E |
